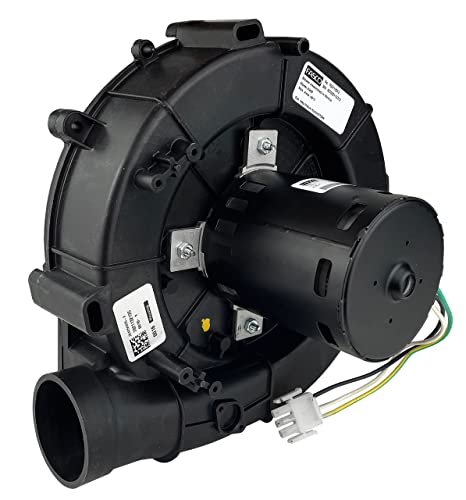

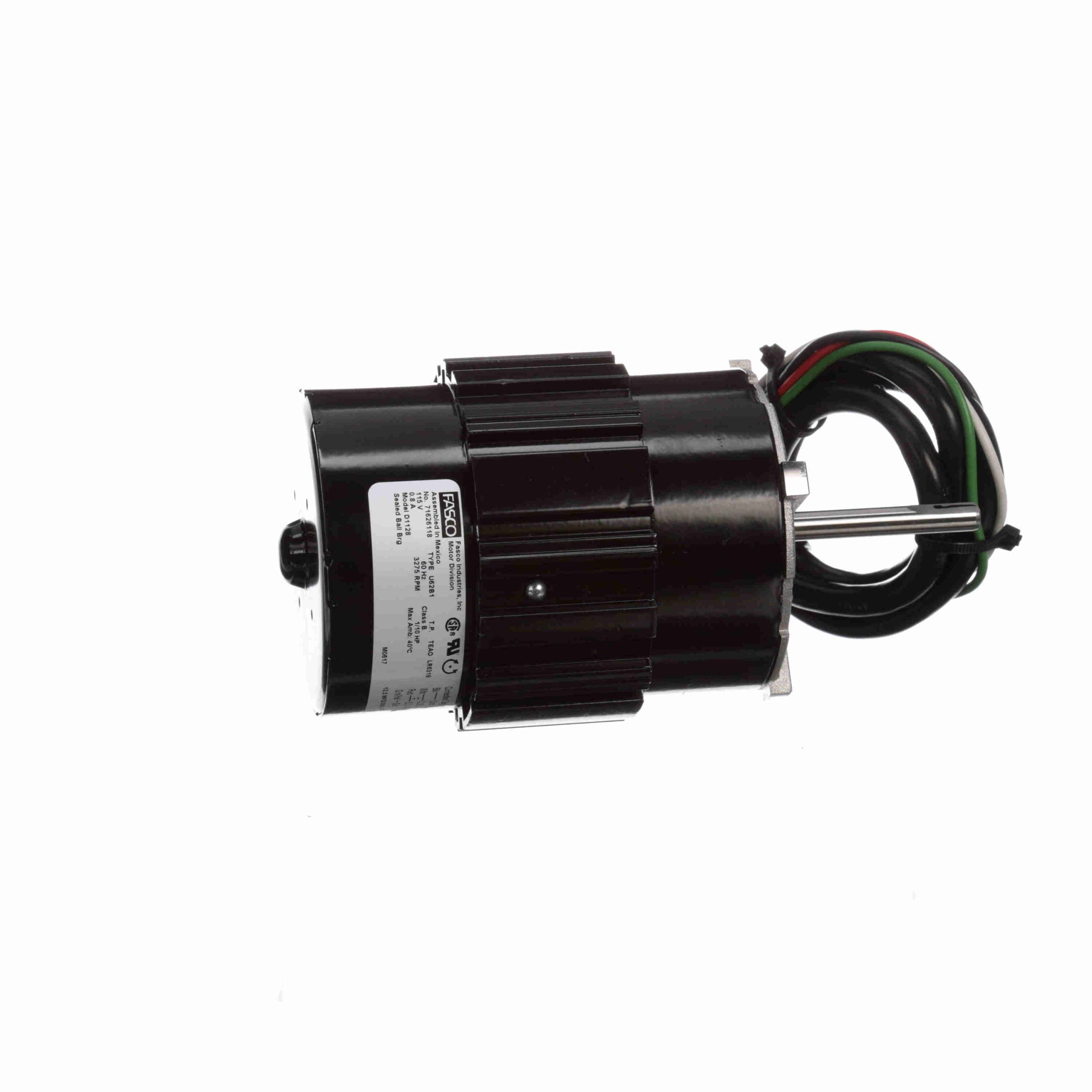

FASCO D1128 OEM Replacement Motor 1/10 HP

Product Description

The FASCO D1128 is a direct OEM replacement motor engineered for HVAC systems and operates at 115V and 60 Hz. This motor delivers a power output of 1/10 HP and achieves a rotational speed of 3275 RPM. Its design includes a totally enclosed air over enclosure, ensuring reliable operation in various ambient conditions.

• Designed for direct OEM replacement in HVAC applications.
• Features include thermal protection and class B insulation.
• Reversible rotation with sealed ball bearings.

Product Highlights

Built to last, the FASCO D1128 is thermally protected and features a robust steel frame, making it suitable for long-term HVAC use.

Product Information

Standard Information

• Brand: FASCO
• MPN: D1128

Technical Specifications

• Output HP: 1/10 HP
• Input Voltage: 115 V
• Frequency: 60 Hz
• Speed: 3275 RPM
• Phase: 1
• Current: 0.8 A
• Enclosure: Totally Enclosed Air Over
• Insulation Class: B
• Ambient Temperature: 40 °C
• Rotation: Reversible
• Shaft Diameter: 0.313 inches
• Shaft Extension: 2.30 inches
• Overall Length: 7.15 inches
