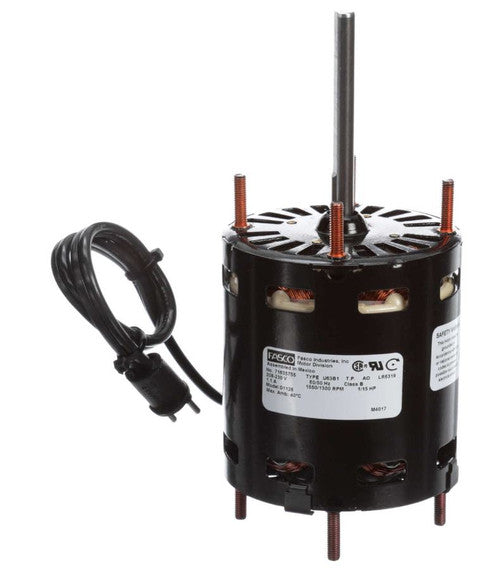

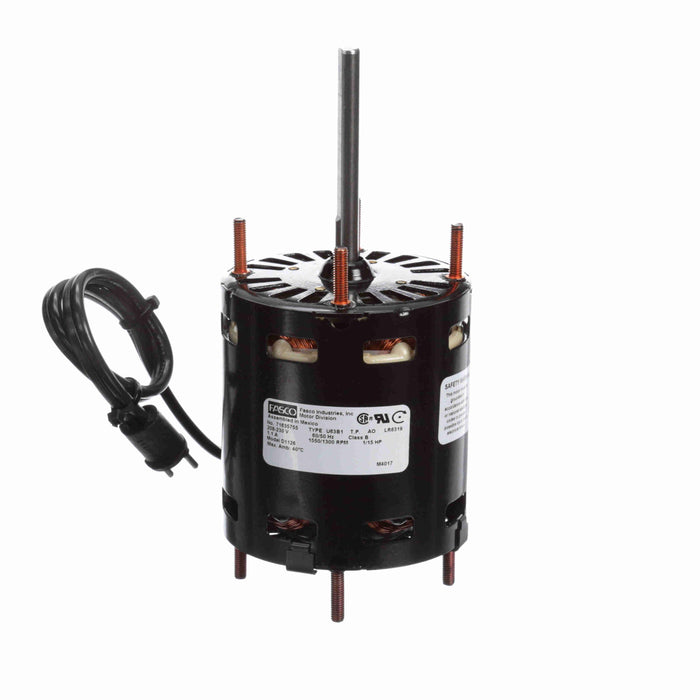

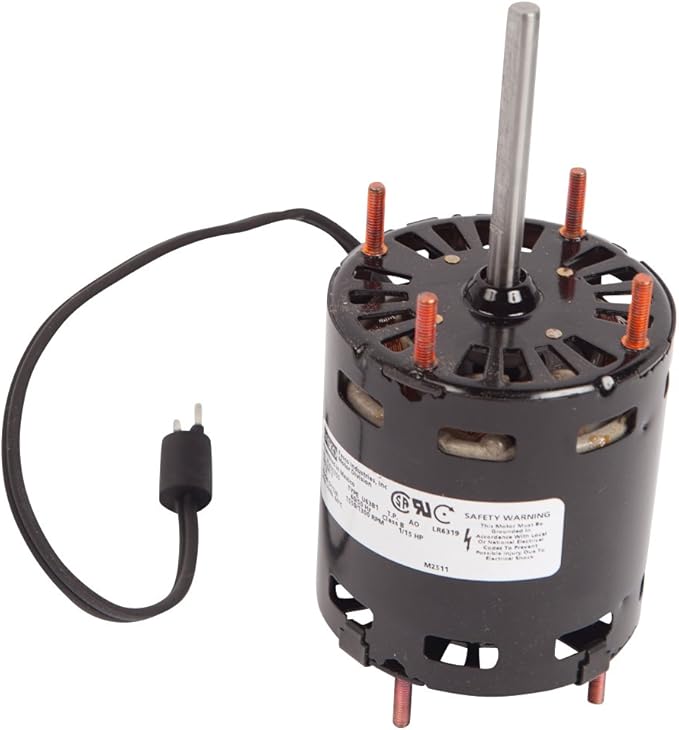

Fasco D1126 Motor 1/15 Horsepower CW 230 Volt

Product Description

The Fasco D1126 is a 1/15 horsepower motor designed for refrigeration and evaporative cooler applications. This authentic OEM replacement operates at 230 volts and reaches a speed of fifteen hundred fifty RPM. It features a shaft measuring five-sixteenths of an inch by three inches and is equipped with sleeve bearings.

• OEM replacement part
• Clockwise rotation at the shaft end
• Thermally protected for improved performance

Product Highlights

Product Information

Standard Information

• Brand: Fasco
• Part Number: D1126

Technical Specifications

• Voltage: 230 Volts
• Output HP: 1/15 Hp
• Speed: 1550 RPM
• Phase: 1
• Framing: 3.3
• Enclosure: Open Air Over
• Thermal Protection: Yes
• Current: 1.10 A
• Mounting: Extended Studs
• Shaft Type: Flat
• Overall Length: 6.92 inches
• Shaft Diameter: 0.313 inches
• Shaft Extension: 3 inches
• Weight: 4.65 pounds
• Dimensions: 5 inches x 5 inches x 9 inches
