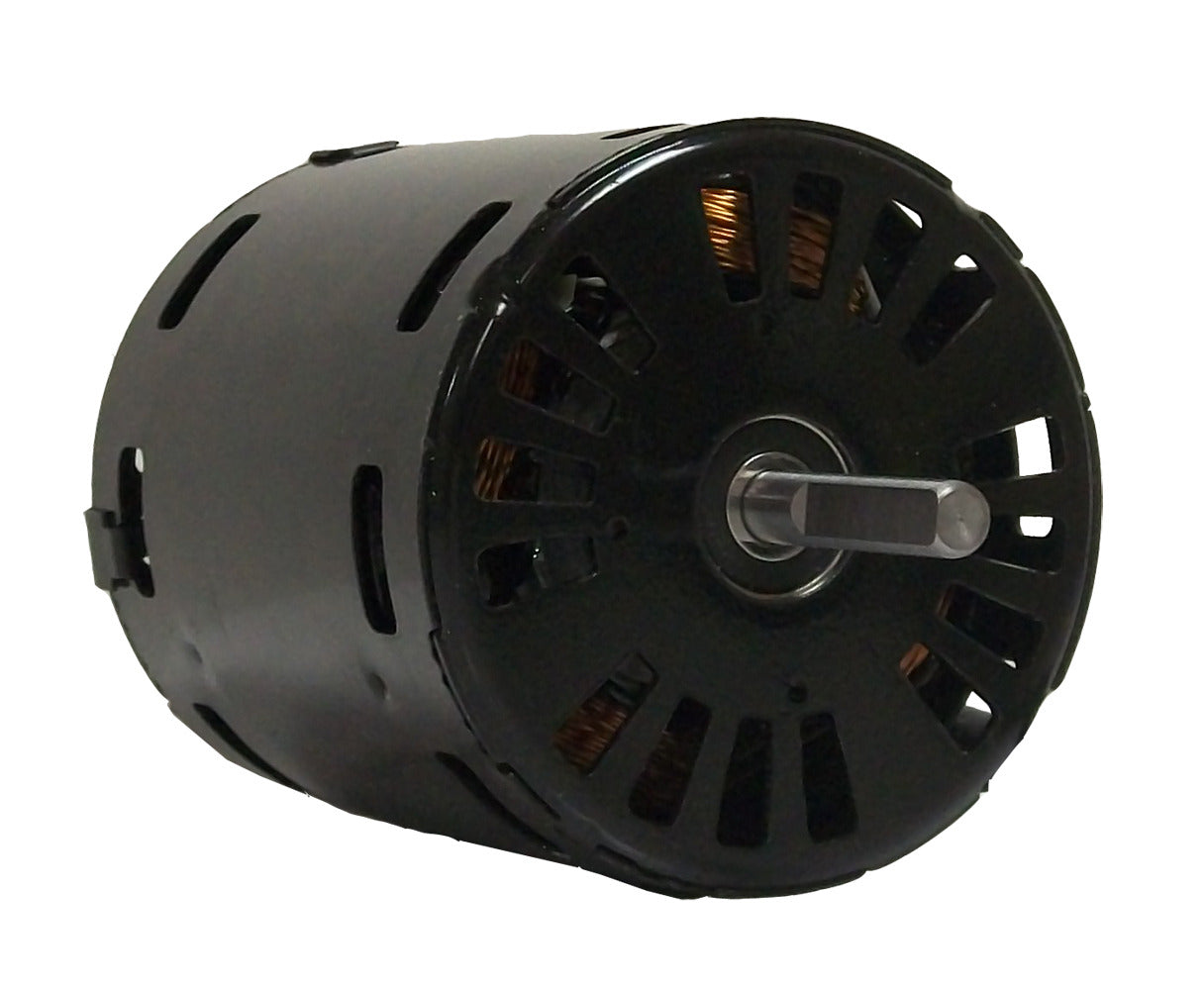

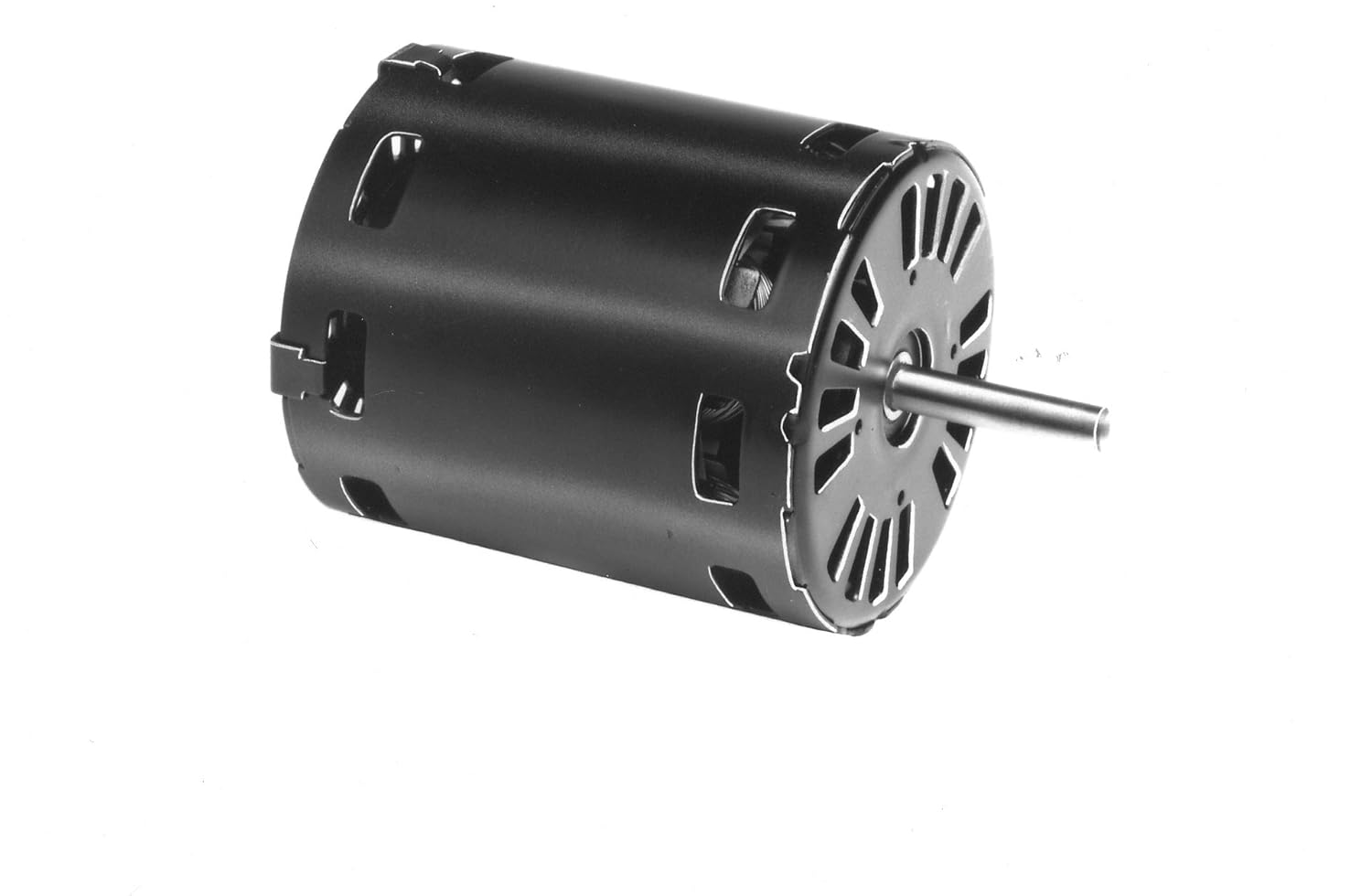

Fasco D1107 3.3 Frame Shaded Pole Nutone Open Ventilated OEM Replacement Motor Ball Bearing 1/10HP 1550rpm 115V 60Hz 3.2amps

Product Description

The Fasco D1107 OEM Replacement Motor is an essential component for various Fan applications. This motor comes with a ball bearing, ensuring smooth operation and long-lasting performance. It features a shaded pole design, 1/10 horsepower, and a speed rating of 1550 RPM. The motor operates at 115 volts and has an amperage rating of 3.2 amps.

• OEM replacement motor with ball bearing
• Thermally protected
• UL recognized; CSA certified

Product Highlights

Ideal for replacing Nutone motors, the Fasco D1107 provides reliable performance and durability. It is designed for use in various fan and blower applications, ensuring efficient and effective operation.

Product Information

Standard Information

• Item: Motor
• Brand: Fasco
• Manufacturer: Fasco Motors
• Model: D1107
• MPN: D1107
• UPC: 815585028239

Technical Specifications

• Horsepower: 0.1 hp
• Speed: 1550 RPM
• Voltage: 115V
• Amperage: 3.2A
• Shaft Diameter: 0.312 inches
• Shaft Length: 1.45 inches
• Frame Size: 3.3 inches
• Enclosure: Open Air Over
• Phase: Single
• Rotation: Counterclockwise Shaft End
• Material: Steel
• Weight: 4.95 lbs
• Dimensions: 11.4 x 4.1 x 3.7 inches
• Mounting Type: Belly Band
• Insulation Class: B
• Ambient Temperature: 40°C
• Thermal Protection: Automatic
• Certifications: UL Recognized, CSA Certified
• Replacement For: Nutone 6717
• Applications: Fan and Blower motors
