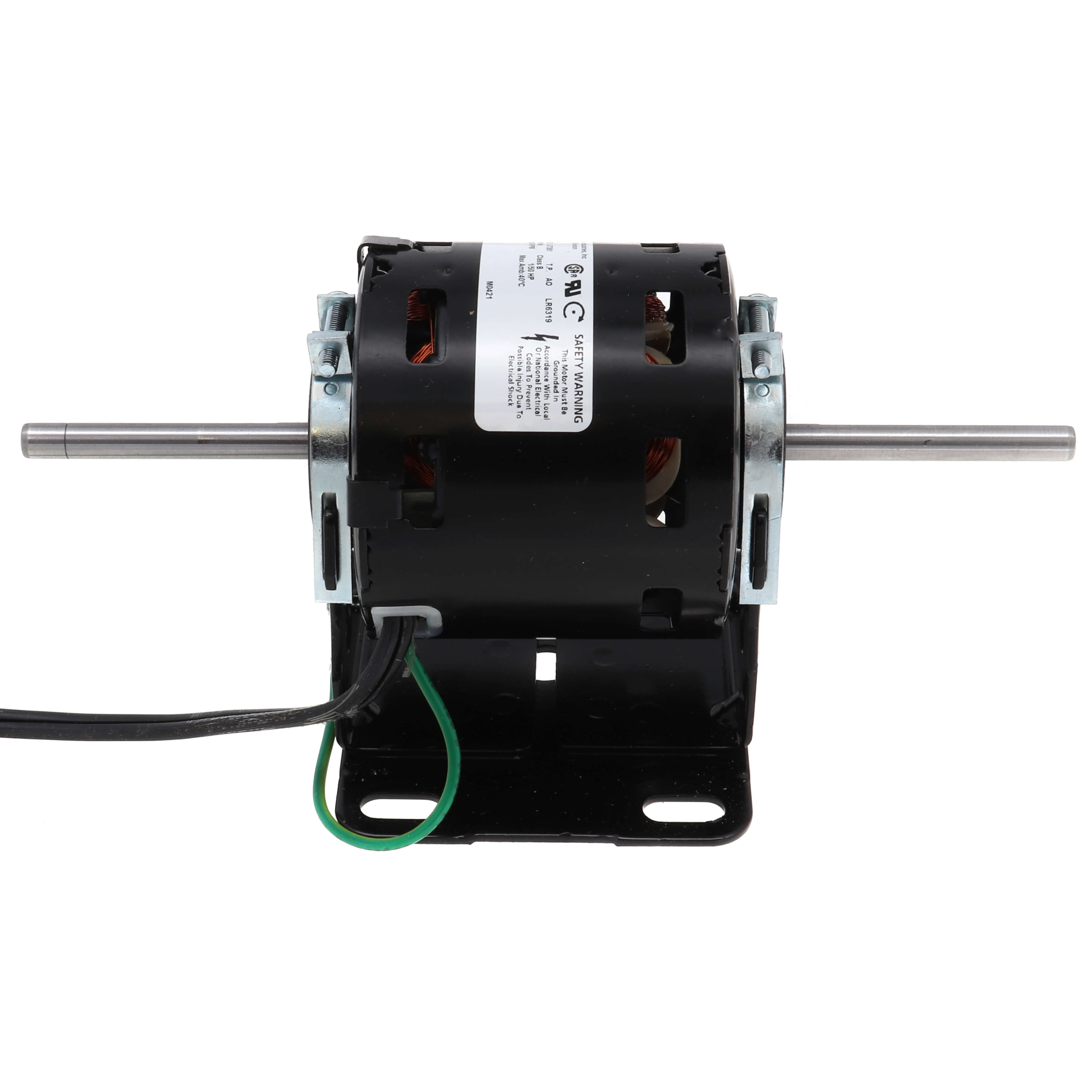

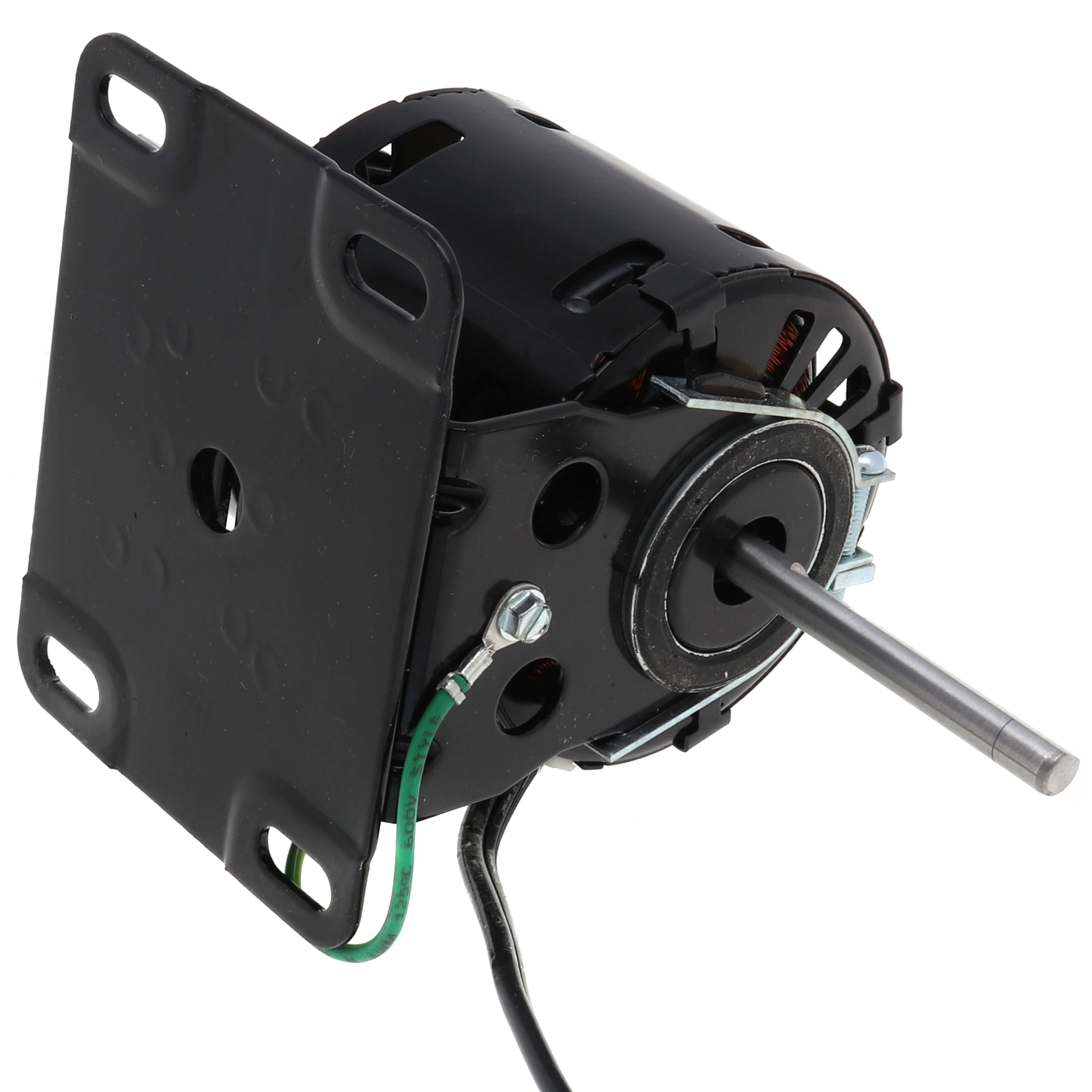

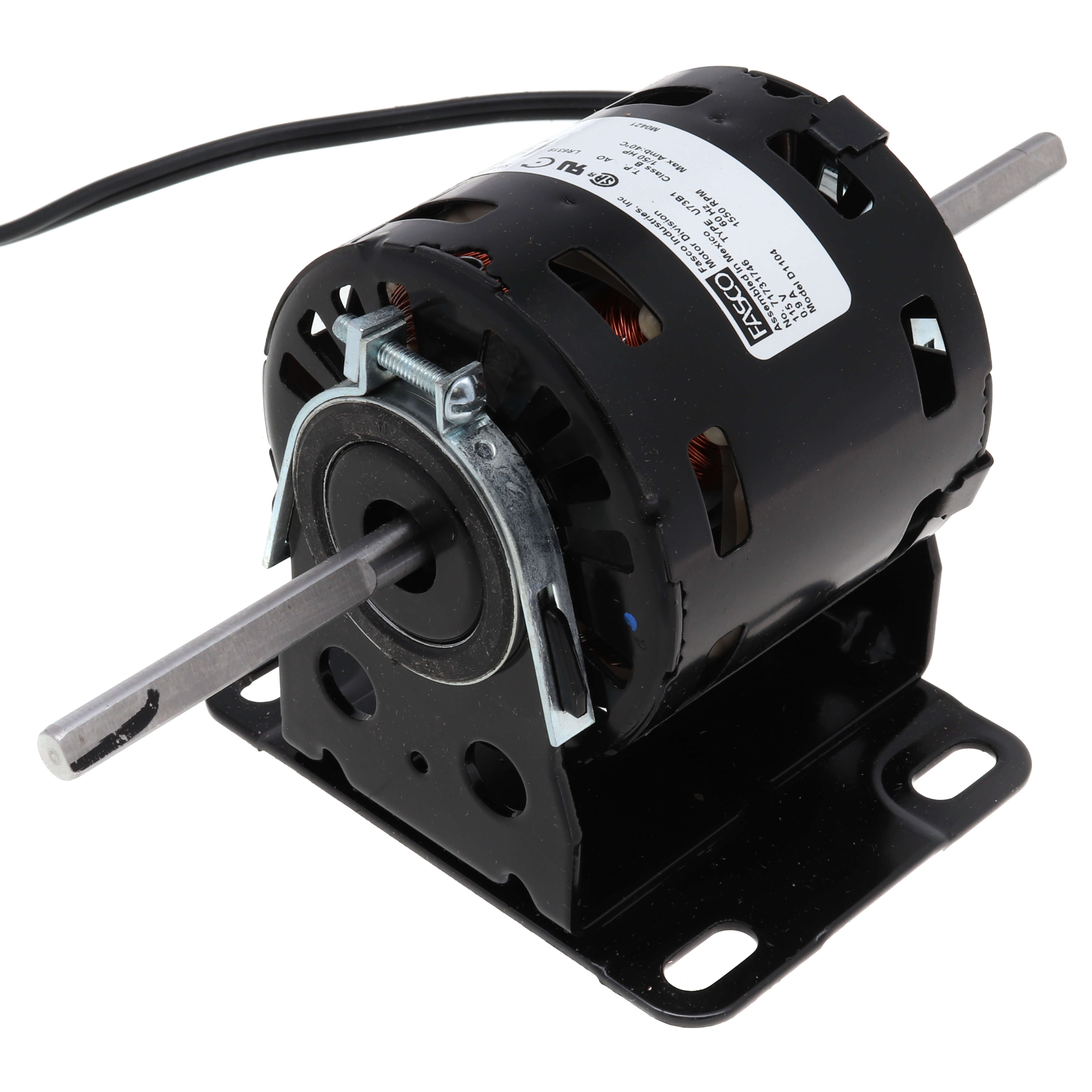

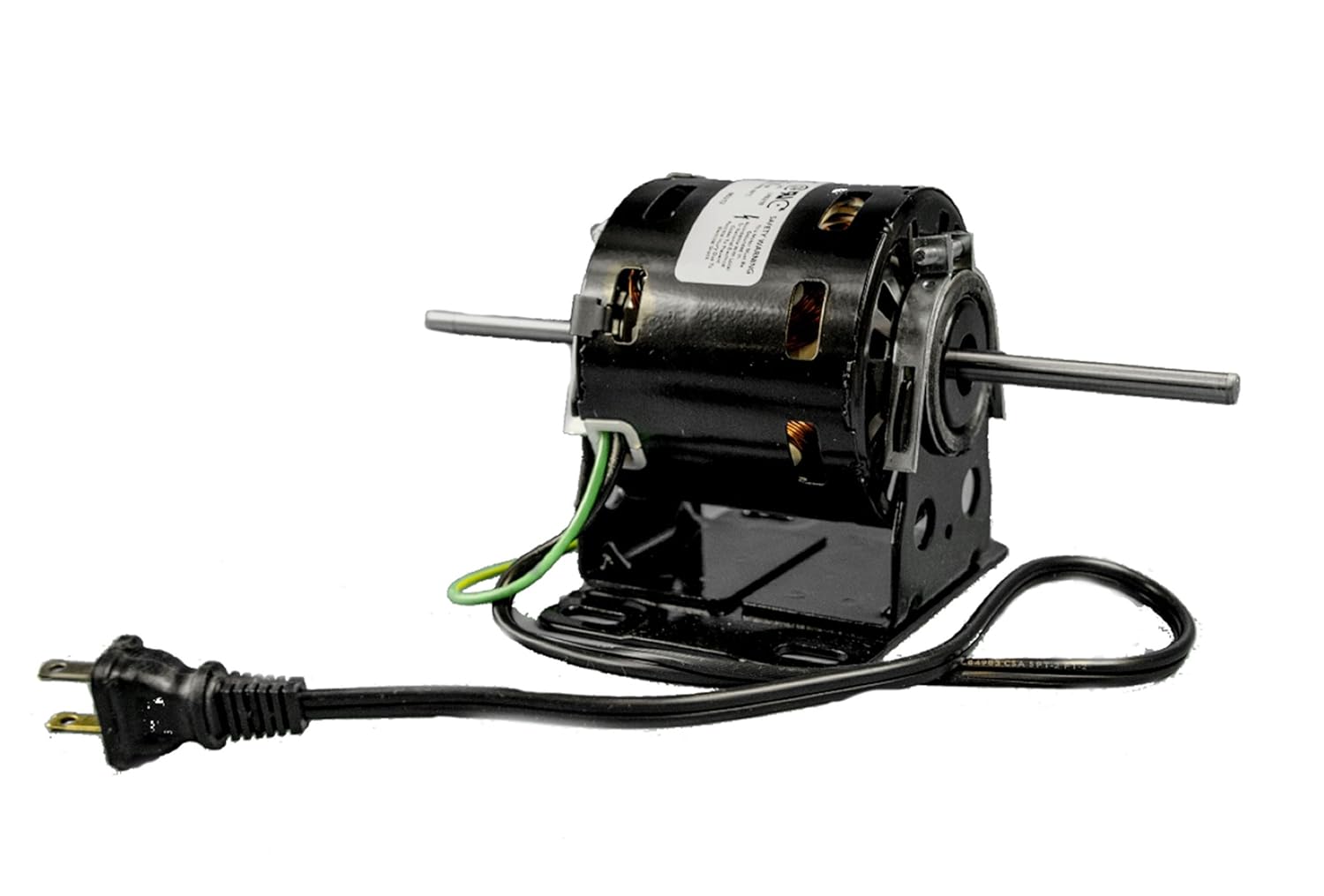

Fasco D1104 3.3 Frame Shaded Pole Loren Cook OEM Replacement Motor 1/50HP 1550rpm 115V 60 Hz 0.9amps

Product Description

The Fasco D1104 is an OEM replacement motor with sleeve bearing, designed for compatibility with Loren Cook systems. Its features cater to efficient and reliable operation, making it suitable for various electrical projects.

• OEM replacement motor with sleeve bearing
• Thermally protected
• UL recognized; CSA certified

Product Highlights

This motor operates at 1550 RPM with a power rating of 1/50 HP and a voltage of 115V. It is designed for shaded pole type with a DS rotation and resilient base mounting. The shaft measures 2.9 inches by 5/16 inches by 2.9 inches with a motor length of 3 inches, making it compatible with Loren Cook 7163-6714, 5-10.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1104
• Voltage: 115V
• Amperage: 0.9A
• Speed: 1550 RPM

Technical Specifications

• Horsepower: 1/50 HP
• Frame Size: 3.3 inches
• Rotation: Clockwise Shaft End
• Enclosure Type: Open Air Over
• Insulation Class: B
• Mounting Type: Resilient Base
• Bearing Type: Sleeve
• Shaft Diameter: 0.313 inches
• Shaft Extension: 2.25 inches
• Ambient Temperature: 40°C
• Starting Type: Across The Line
