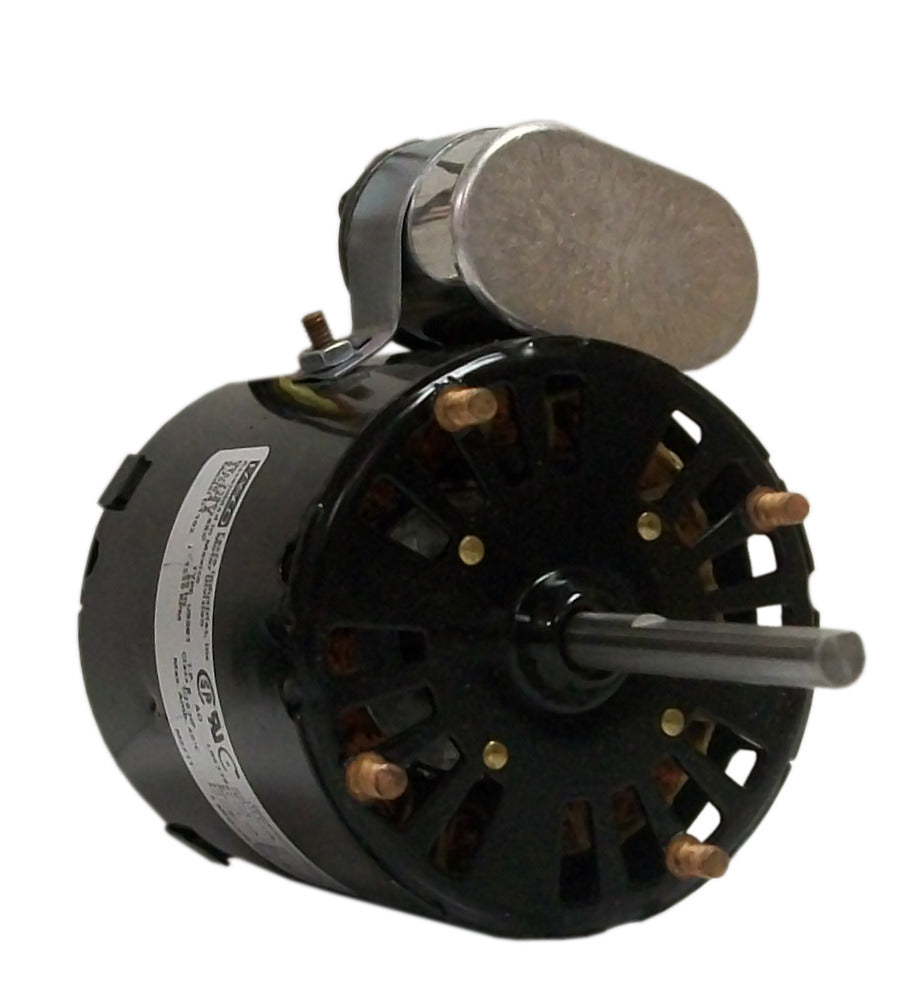

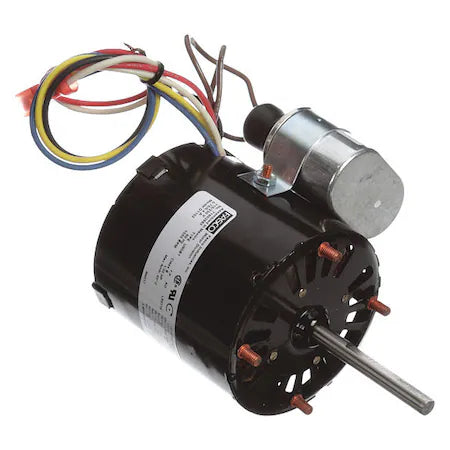

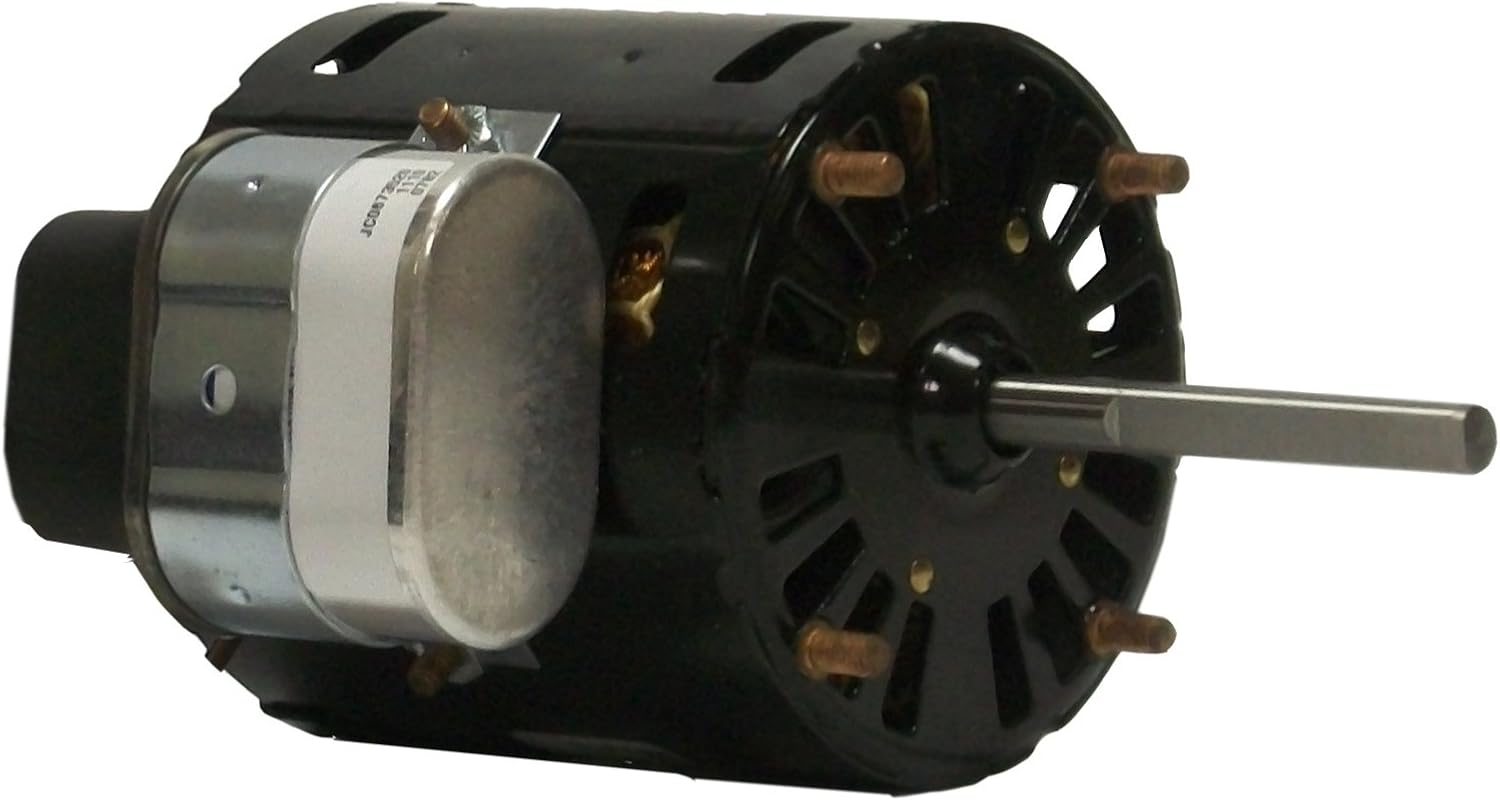

Fasco D1102 3.3 Inch Diameter PSC Motor 1/20 HP 115/230 Volts Replacement MPN D1102

Product Description

The Fasco D1102 is a PSC motor designed for efficient performance in various applications. This motor operates at one-twentieth horsepower and can handle voltage ratings of one hundred fifteen to two hundred thirty volts. With a speed of one thousand five hundred fifty RPM, it is suitable for effective airflow in fans and blowers.

• OEM replacement motor with sleeve bearing
• Thermally protected for safe operation
• UL recognized and CSA certified for reliability

Product Highlights

This motor is designed for single-phase operation and features an open air-over design for optimal cooling. It comes with a flat shaft type that measures five-sixteenths inches in diameter and two and five-eighths inches in length. The mounting type includes extended studs which facilitate easy installation.

Product Information

Standard Information

• Manufacturer: Fasco
• MPN: D1102

Technical Specifications

• Horsepower: 1/20 HP
• Speed: 1550 RPM
• Voltage: 115/230 Volts
• Amperage: 0.75/0.40 Amps
• Frame Diameter: 3.3 inches
• Motor Type: Permanent Split Capacitor
• Mounting Type: Extended Studs
• Material: Steel
• Temperature Rating: 40 Degrees C
