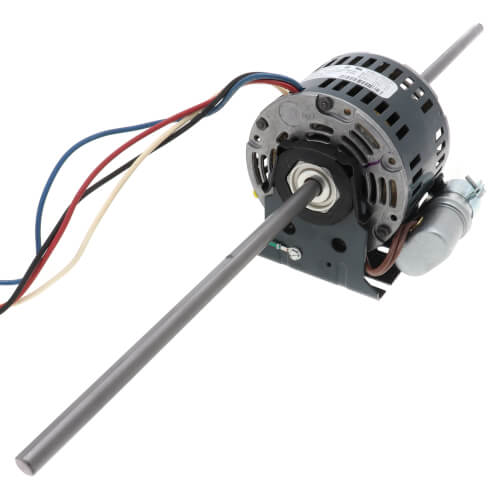

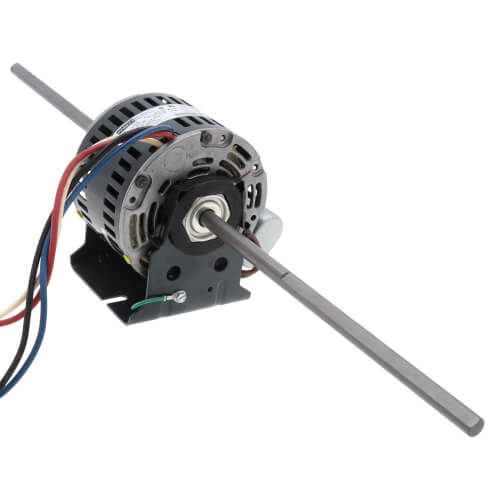

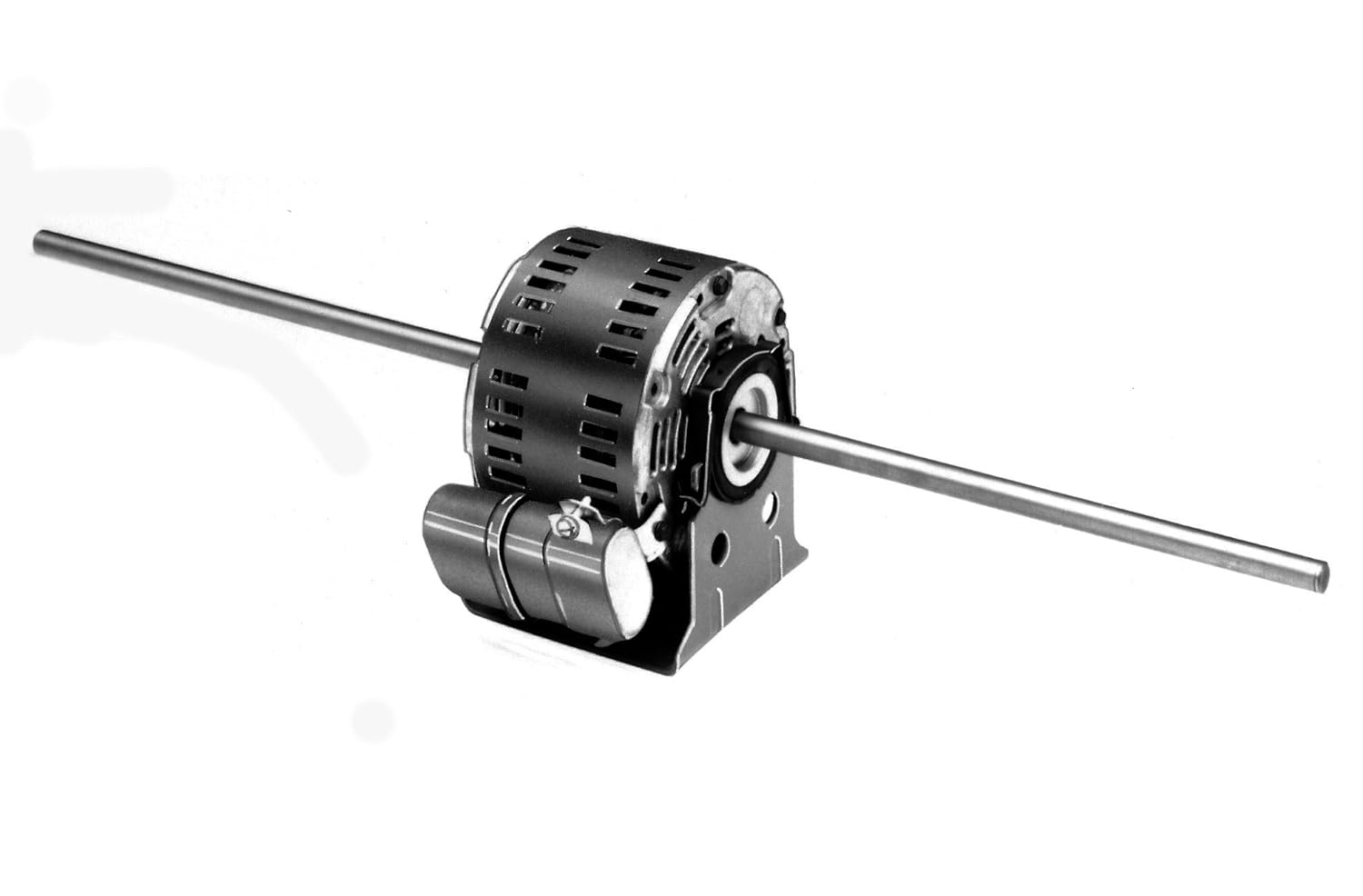

Fasco D1090 5 Frame Permanent Split Capacitor Trane Open Ventilated OEM Replacement Motor 1/15HP 1100rpm 115V 60 Hz 0.8amps

Product Description

The Fasco D1090 is an OEM replacement motor with the Model Number D1090, produced by Fasco. This motor is designed with a 5-frame permanent split capacitor and an open ventilated structure. It operates at 1/15HP, 1100rpm, and 115V with a 60 Hz frequency and 0.8 amps.

• OEM Replacement Motor
• Thermally Protected
• Clockwise Shaft End Rotation

Product Highlights

This motor features thermally protected and universal certification standards, enabling efficient operation. It is suitable for HVAC applications, providing consistent performance and reliability.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1090
• Model Name: D1090
• Type: Permanent Split Capacitor
• Voltage: 115 Volts
• Speed: 1100 RPM
• Phase: Single
• Horsepower: 1/15 HP
• Weight: 8 Pounds
• Frequency: 60 Hz

Technical Specifications

• Full Load Amps: 0.8A
• Enclosure: Open Air Over
• Rotation: Counterclockwise Shaft End
• Bearing Type: Sleeve
• Mounting Type: Extended Studs
• Max Ambient Temperature: 40 Degrees C
• Shaft Diameter: 0.5 inches
• Shaft Extension: 10.5 inches
