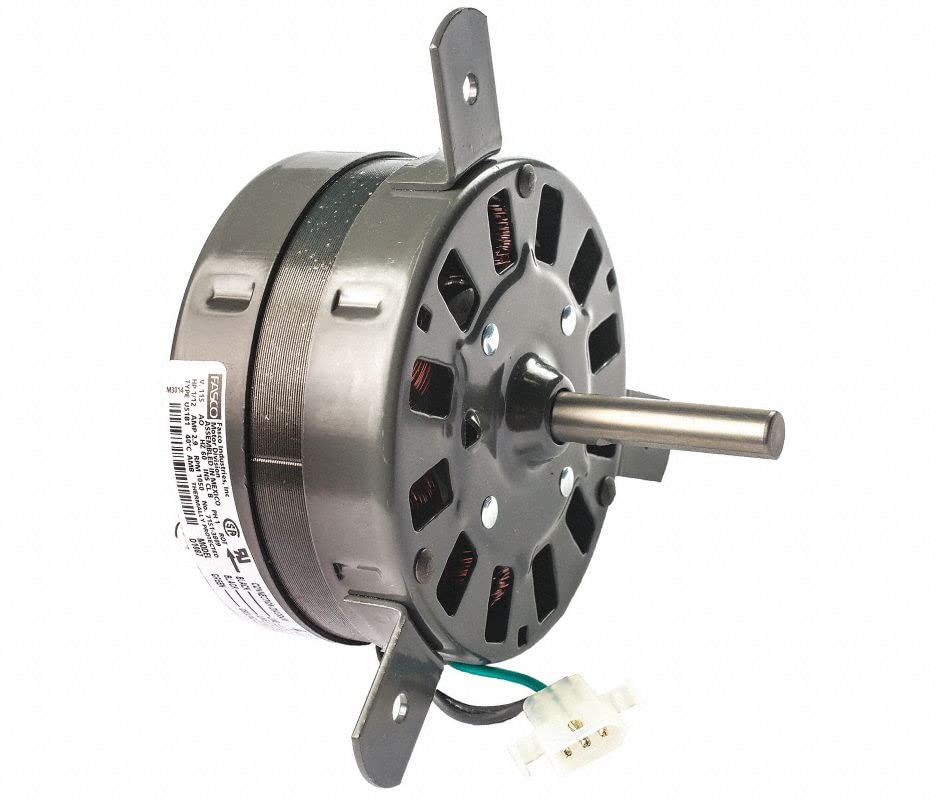

PEMS D1087 Condenser Fan Motor 1/12HP 115V Flat

Product Description

The PEMS D1087 Condenser Fan Motor is an OEM replacement designed for HVAC systems. It has a horsepower of 1/12 and runs on 115 volts.

• OEM replacement for HVAC systems
• 1/12 horsepower
• 115 volts

Product Highlights

This condenser fan motor by PEMS is used in HVAC systems. It is 1/12 HP and operates on 115 volts. It has a clockwise rotation and is thermally protected.

Product Information

Standard Information

• Category: Industrial & Scientific
• Subcategory: Lab Showers
• Product Type: Electric Motor
• Manufacturer: PEMS
• Brand: PEMS
• Model: D1087
• Number of Items: 1

Technical Specifications

• Horsepower: 1/12 HP
• Voltage: 115 V
• RPM Range: 1001-1100
• Shaft Rotation: Clockwise
• Frame: Non-Standard
• Motor Mounting Type: Lug
• Shaft Diameter: 0.5 inches
• Shaft Length: 2-11/16 inches
• Thermal Protection: Auto
• Nameplate RPM: 1050
• Full Load Amps: 2.9
• Frequency: 60 Hz
• Insulation Class: B
• Max. Ambient Temp: 40 degrees C
• Service Factor: 1.00
• Motor Bearings: Sleeve
• Overall Length: 5-5/16 inches
• Capacitor Required: No
