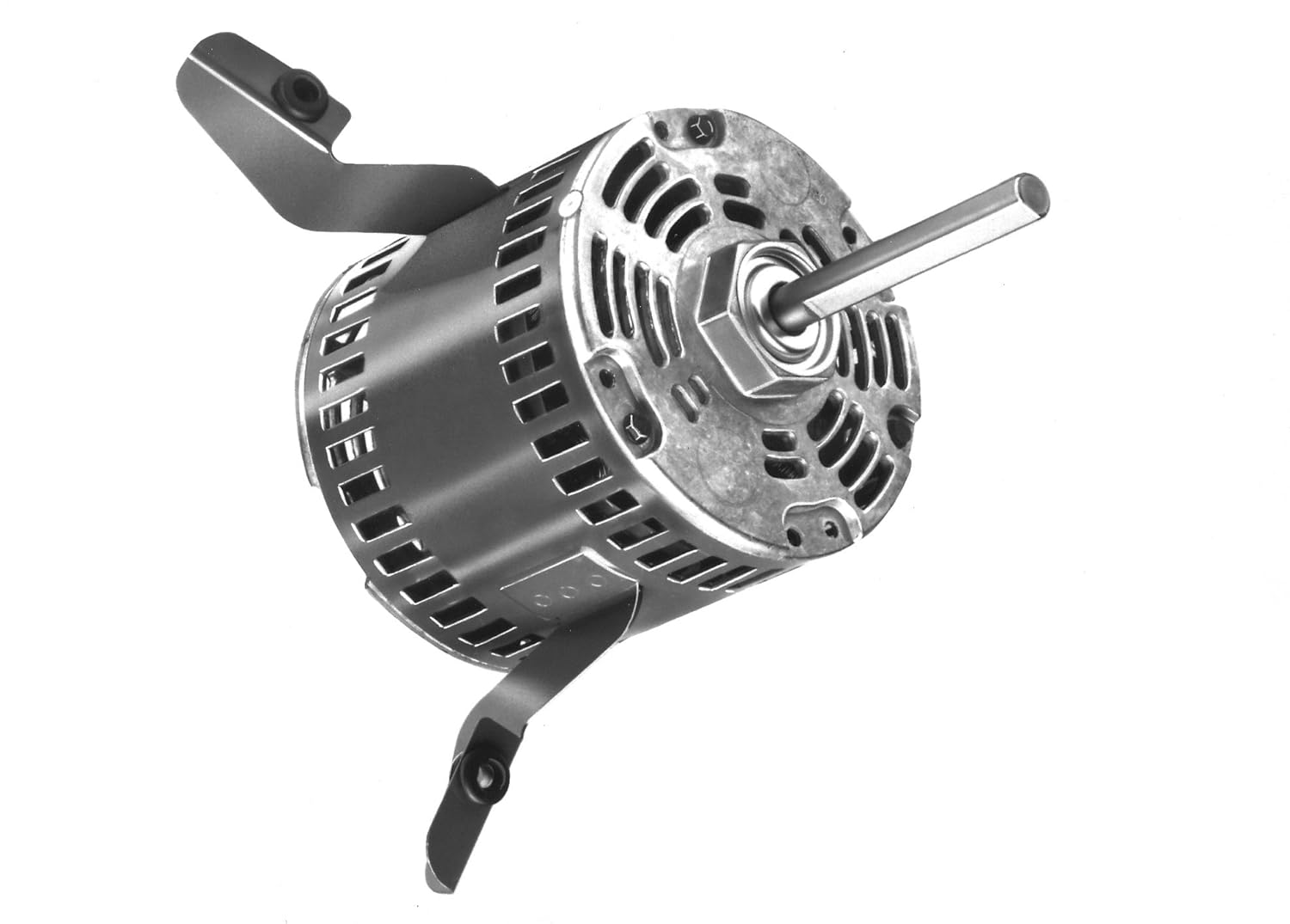

Fasco D1080 5 Frame Shaded Pole Duotherm Open Ventilated OEM Replacement Motor with Ball Bearing, 1/6HP, 1050 RPM, 115V

Product Description

The Fasco D1080 is an OEM replacement motor designed for heating systems. This motor operates at one-sixth horsepower and has a speed rating of 1050 RPM. It runs on 115 volts and features thermal protection for safe operation. The unit is UL recognized and CSA certified, ensuring it meets essential safety standards. This motor is ideal for replacing old or malfunctioning motors in Duotherm models.

• Ball bearing design for smooth operation
• Thermally protected to prevent overheating
• Clockwise rotation for installation versatility

Product Highlights

This motor delivers reliable performance for various heating applications and is suitable for 100,000 BTU furnaces.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Voltage: 115 Volts
• Power Rating: 1/6 HP

Technical Specifications

• Speed: 1050 RPM
• Amperage: 7.9 Amps
• Shaft Length: 4 inches
• Shaft Diameter: 1/2 inch
• Motor Length: 4.5 inches
• Package Dimensions: 12.5 x 11.5 x 11.3 inches
• Weight: 6 Pounds
