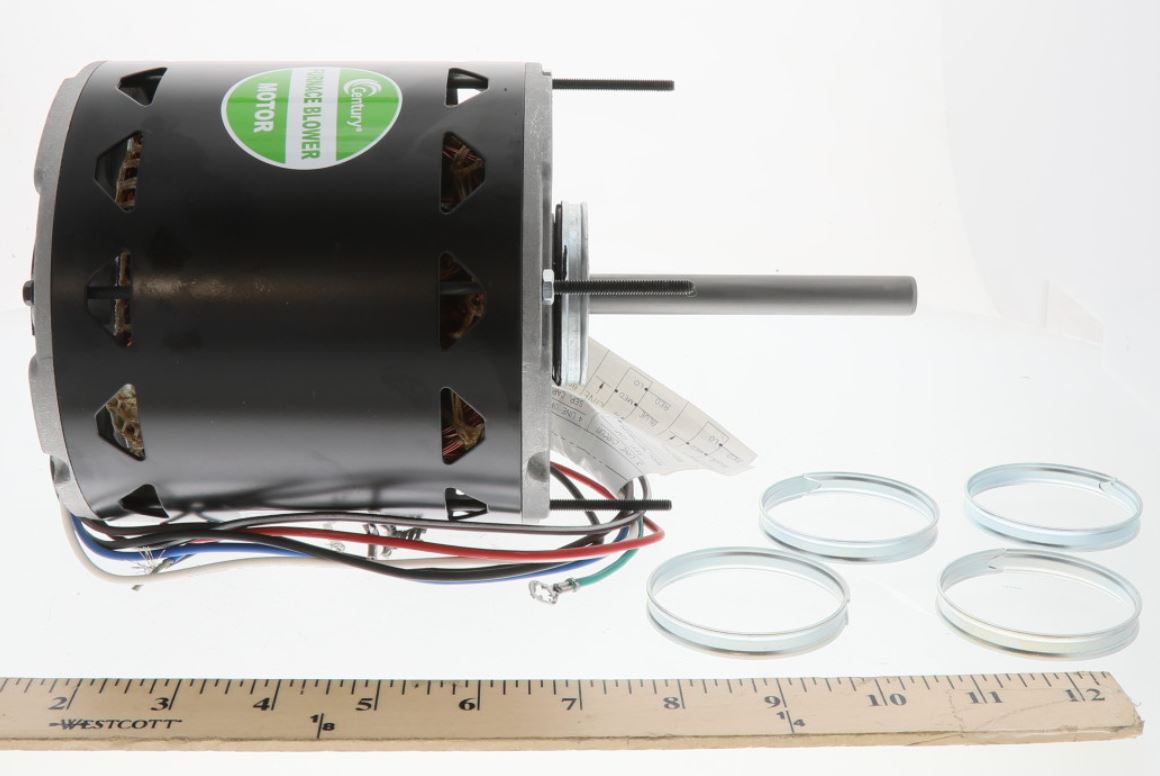

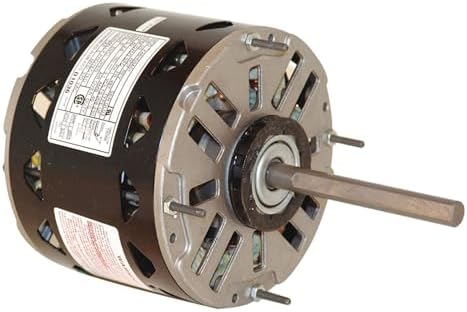

Fasco D1076 A.O. Smith direct drive blower motor 3/4 hp 1075 rpm

Product Description

The FASCO D1076 A.O. Smith direct drive fan and blower motor features reversible rotation. This motor operates at 1075 RPM and is designed for 208-230V applications. It delivers 3/4 HP and is suitable for various fan and blower applications.

• 3/4 HP power output
• Operates at 1075 RPM
• Designed for 208-230 volts

Product Highlights

Direct drive motor with reversible rotation, ideal for fan and blower applications requiring 3/4 HP and 1075 RPM.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D1076
• Country of Origin: India

Technical Specifications

• Brand: Century
• Model Name: d1076
• Speed: 1075 RPM
• Voltage: 208-230 V
• Horsepower: 0.75 Horsepower
• Material: Copper
• Manufacturer: Century Electric/AO Smith Motors Co
• UPC: 786674017857
• Global Trade Identification Number: 00786674017857
• Part Number: D1076
• Item model number: D1076
• Item Package Quantity: 1
• Phase: 1
• Output HP: 3/4 Hp
• Output KW: 0.56 kW
• Service Factor: 1
• Frame: 48
• Enclosure: Open Enclosed
• Thermal Protection: Automatic
• Efficiency: 64 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 5.5 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Resilient Rings
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.61 in
• Frame Length: 5.00 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 4.5 in
• Weight: 18.00 LB
• Packaged Length: 15.55 IN
• Packaged Width: 6.45 IN
• Packaged Height: 6.81 IN
• HTC: 8501.40.4040
