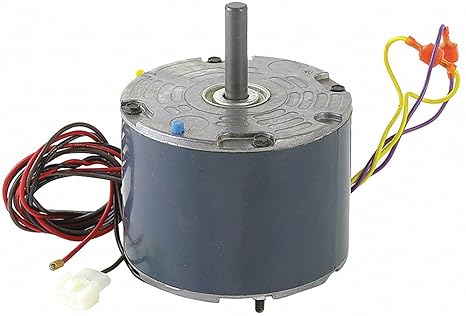

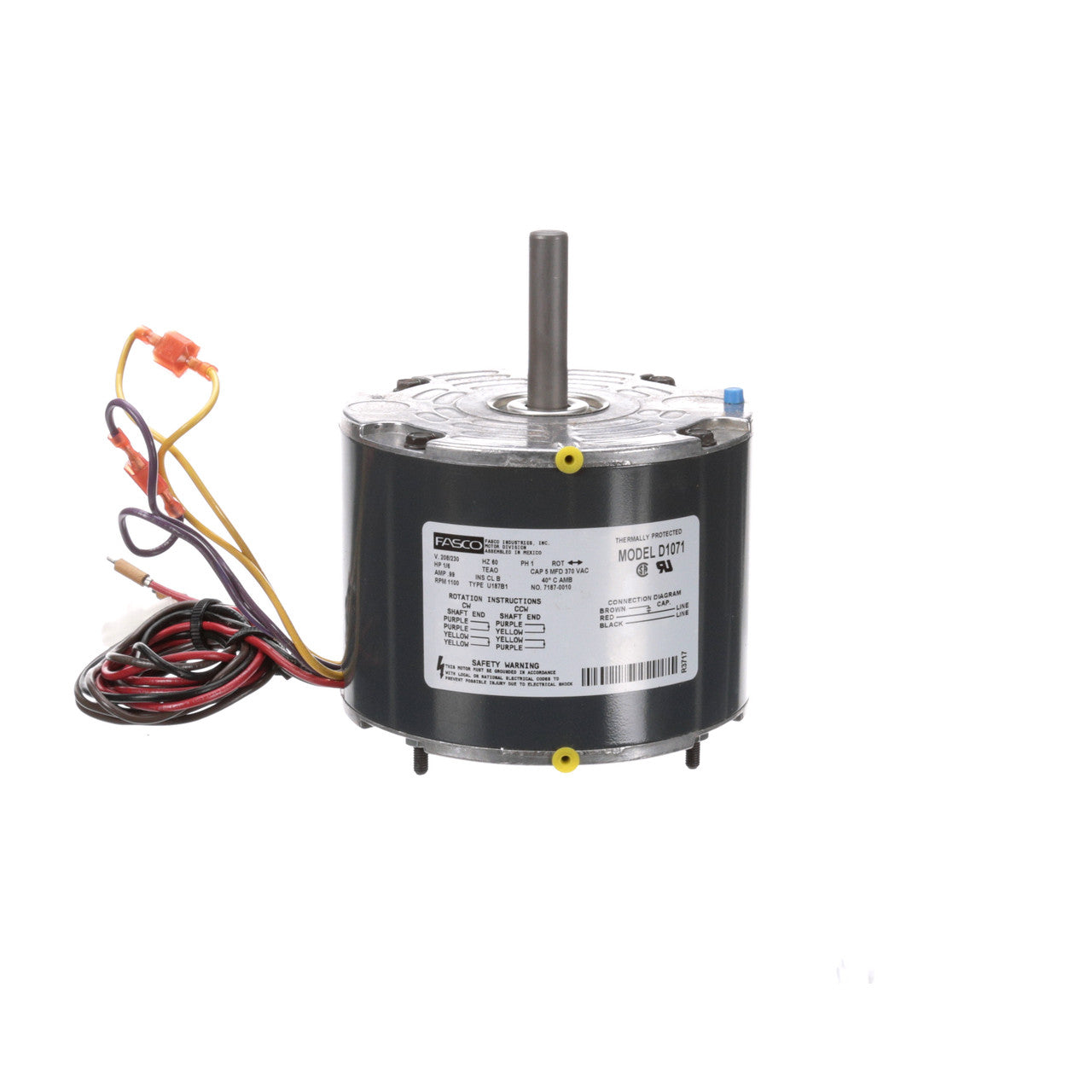

FASCO D1071 OEM Replacement Motor 1/6 HP 1100 RPM

Product Description

The FASCO D1071 is a reliable OEM replacement motor designed for HVAC applications. This model features a sleeve bearing and is thermally protected to ensure safety and durability during operation. With a voltage rating of 208-230, this permanent split capacitor motor delivers a speed of 1100 RPM while consuming 0.99 amps at full load. It is ideal for various HVAC setups requiring efficient airflow.

• OEM replacement motor with sleeve bearing
• UL recognized; CSA certified
• Thermal protection for enhanced safety

Product Highlights

The FASCO D1071 combines safety features with efficient performance for HVAC systems.

Product Information

Standard Information

• Brand: Fasco
• Model Name: D1071

Technical Specifications

• Speed: 1100 RPM
• Voltage: 208/230 V
• Horsepower: 1/6 HP
• Service Factor: 1
• Frame: 42
• Enclosure: Open Air Over
• Duty: Continuous
• Insulation Class: B
• Current: 0.99 A
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Mounting Type: Bracket
• Shaft Diameter: 0.500 in
