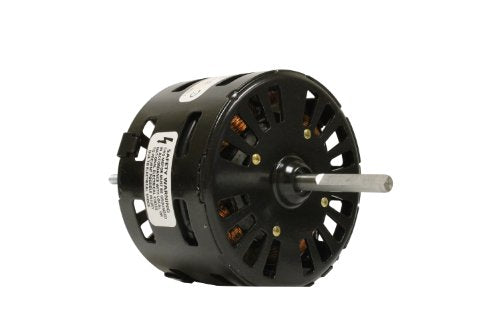

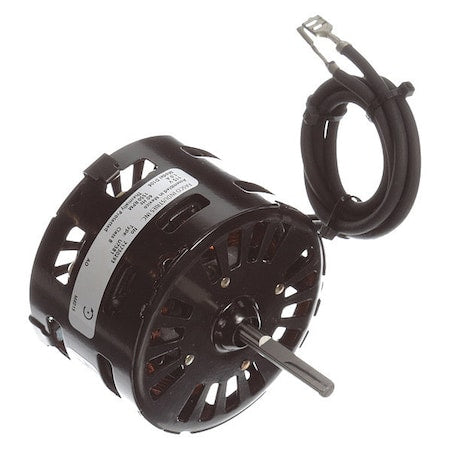

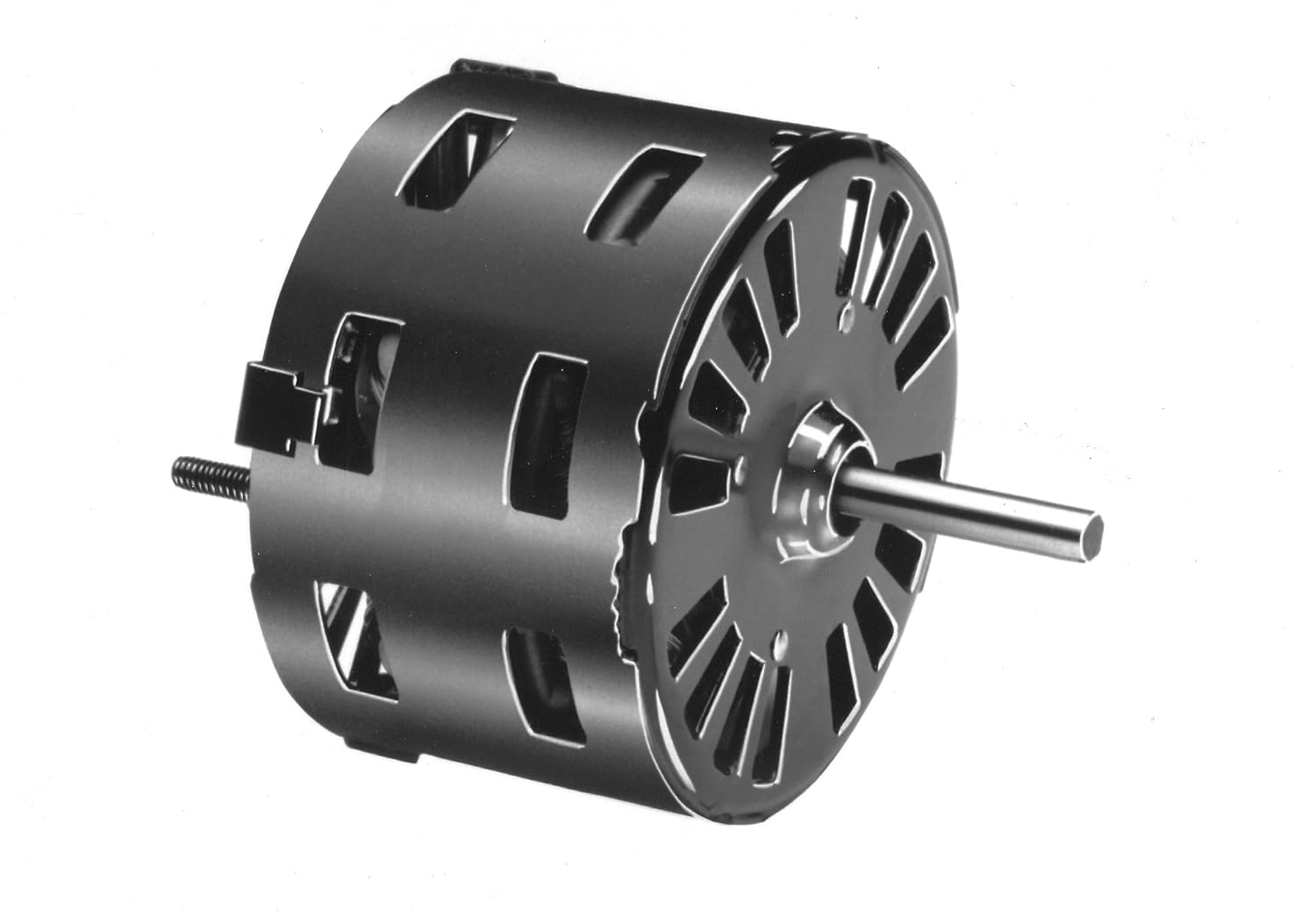

Fasco D106 3.3 Frame Open Ventilated Shaded Pole General Purpose Motor 1/40HP 1500rpm 115V 60Hz

Product Description

Fasco D106 is a 3.3 frame open ventilated shaded pole general purpose motor with sleeve bearings. This motor delivers 1/40 horsepower, 1500 RPM, and operates on 115V at 60Hz with a current of 0.9 amps. It is suitable for various fan and blower applications.

• 1/40 HP shaded pole motor
• 1500 RPM with 115V
• Sleeve bearing type

Product Highlights

This general-purpose motor from Fasco, optimized for durability and performance, meets the requirements for HVAC and fan systems, making it a versatile option for professionals.

Product Information

Standard Information

• Speed: 1500 RPM
• Voltage: 115 Volts
• Horsepower: 1/40 HP
• Model Name: D106

Technical Specifications

• Frame: 3.3
• Phase: Single
• Enclosure: Open Air Over
• Material: Steel
• Mounting: Extended Studs
• Amperage: 1.00
• Shaft Type: Flat
• Insulation Class: B
• Overload: Thermally Protected
• Sleeve Bearing
• Leads with Quick Connect Spade Terminals
• Class B Insulation, 40°C Ambient
• Weight: 2.15 Pounds
