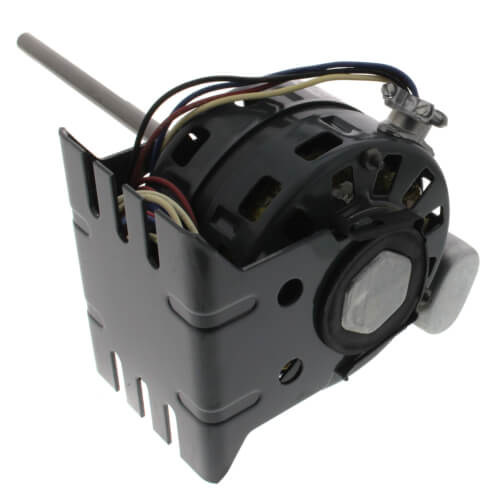

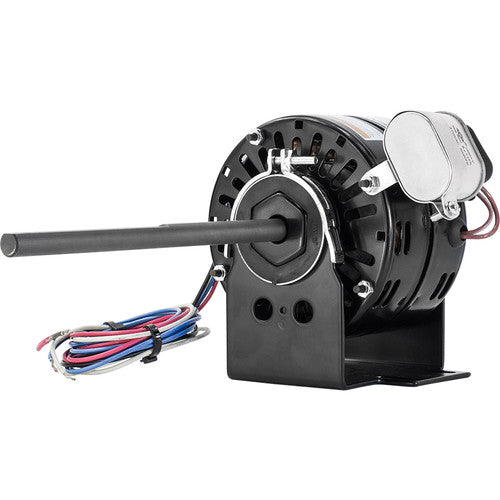

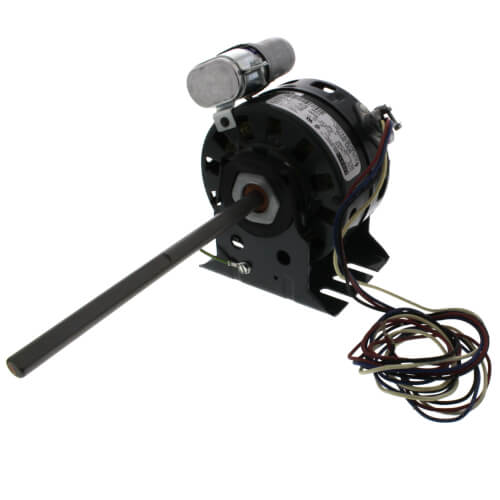

FASCO D1045A OEM Replacement Motor 1/30 HP

Product Description

The FASCO D1045A is an OEM replacement motor suitable for heat pumps and furnaces. It runs on a voltage of one hundred fifteen to one hundred twenty-seven volts and operates at sixty hertz. This motor features a permanent split capacitor design and is equipped with three-speed options.

• 1/30 HP power with a speed of eleven hundred RPM.
• Automatic thermal protection ensures safe operation.
• Durable resilient base for easy mounting.

Product Highlights

This motor is designed for continuous use with a clockwise shaft end rotation. It includes multiple safety features and is suitable for various applications in HVAC systems.

Product Information

Standard Information

• Brand: FASCO
• MPN: D1045A

Technical Specifications

• Phase: 1
• Output Power: 1/30 HP
• Input Voltage: 115-127 V
• Speed: 1100 RPM
• Number of Speeds: 3
• Frequency: 60 Hz
• Current: 0.53 A
• Enclosure: Open Air Over
• Insulation Class: B
• Rotation: Clockwise Shaft End
• Shaft Diameter: 0.500 in
• Frame Size: 42
• Leads Length: 46 in
• Overall Length: 12.84 in
