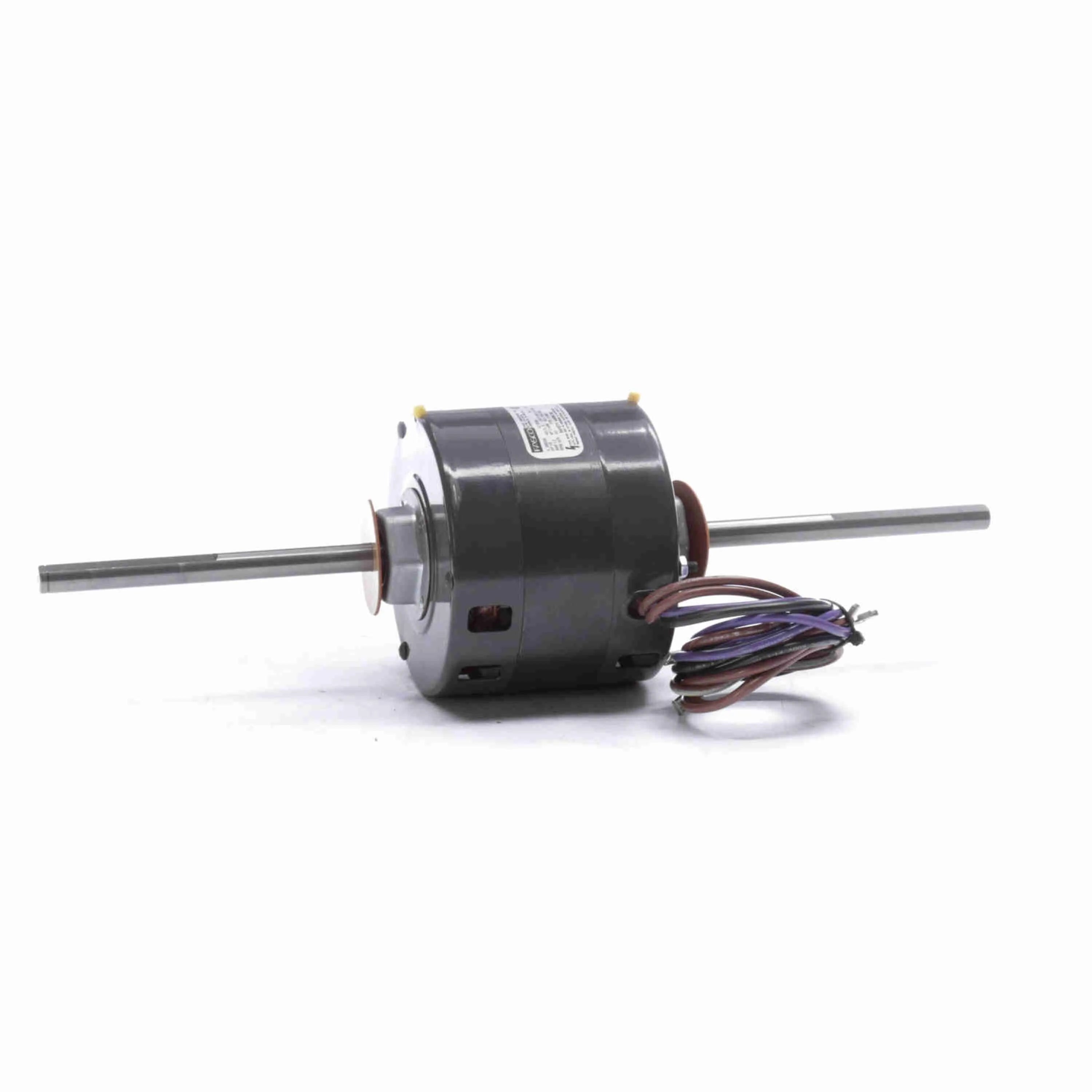

Fasco D1042A OEM Replacement Motor 1/5 HP 42 Frame

Product Description

The Fasco D1042A is an OEM replacement motor designed to operate at 200/230 V and 50/60 Hz. This motor provides 1/5 horsepower with a speed of 1075 RPM. It operates with a single speed and features an open air over enclosure. The motor is built for continuous duty and comes with a frame size of 42.

• OEM Direct Replacement Motor
• 5 inches Diameter - 42 Frame
• Thermally Protected

Product Highlights

This motor is suitable for various applications where a dependable power source is needed. Its compact design, combined with efficient performance, ensures it meets the demands of professional use.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1042A

Technical Specifications

• Phase: 1
• Output HP: 1/5 HP
• Voltage: 200/230 V
• Speed: 1075 RPM
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 50/60 Hz
• Current: 1.2 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Clockwise Lead End
• Mounting: Hexagonal Hubs
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Frame Length: 4.58 inches
• Shaft Diameter: 0.500 inches
• Item Number: D1042A
• Height: 13.34 cm
• Length: 56.21 cm
• Width: 13.34 cm
