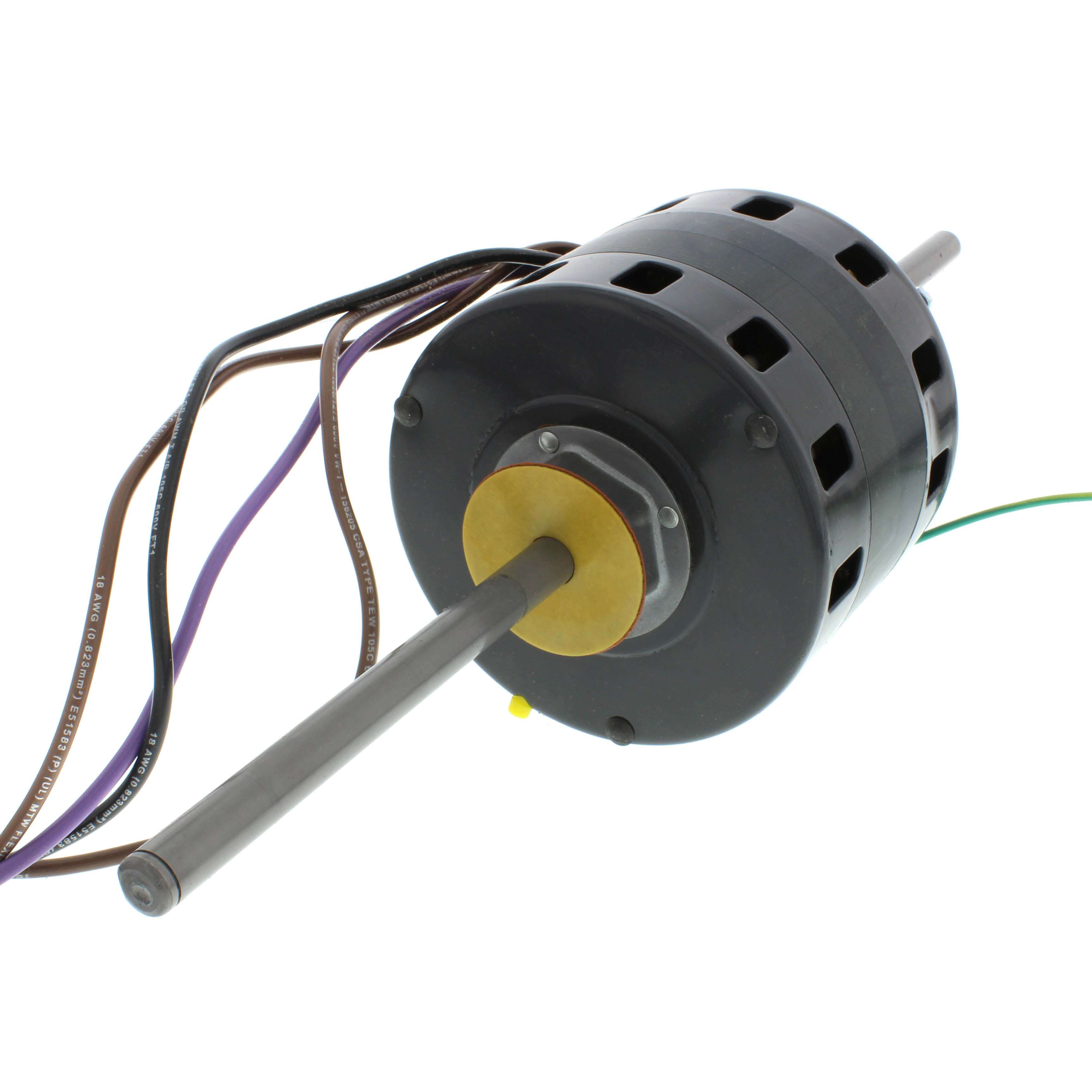

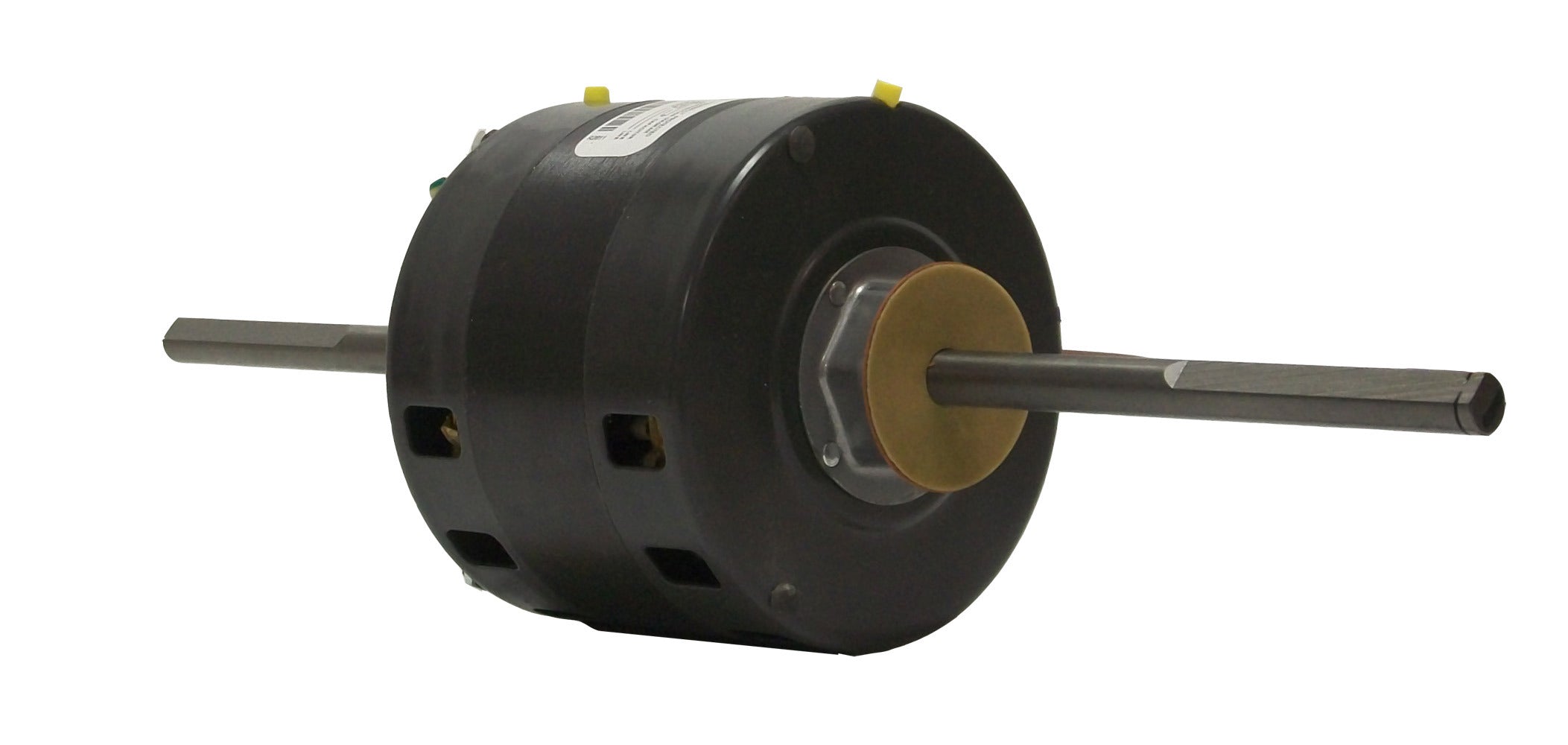

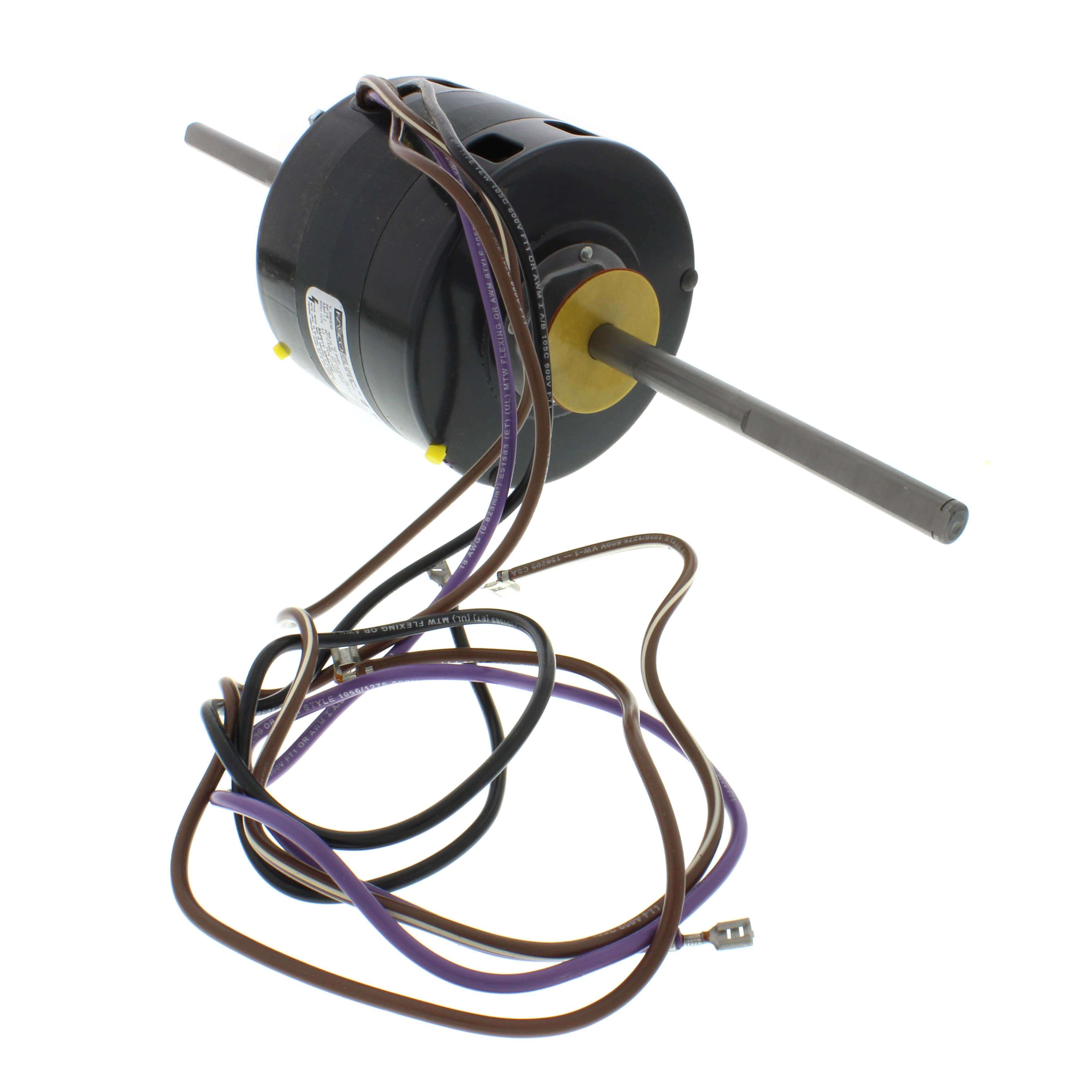

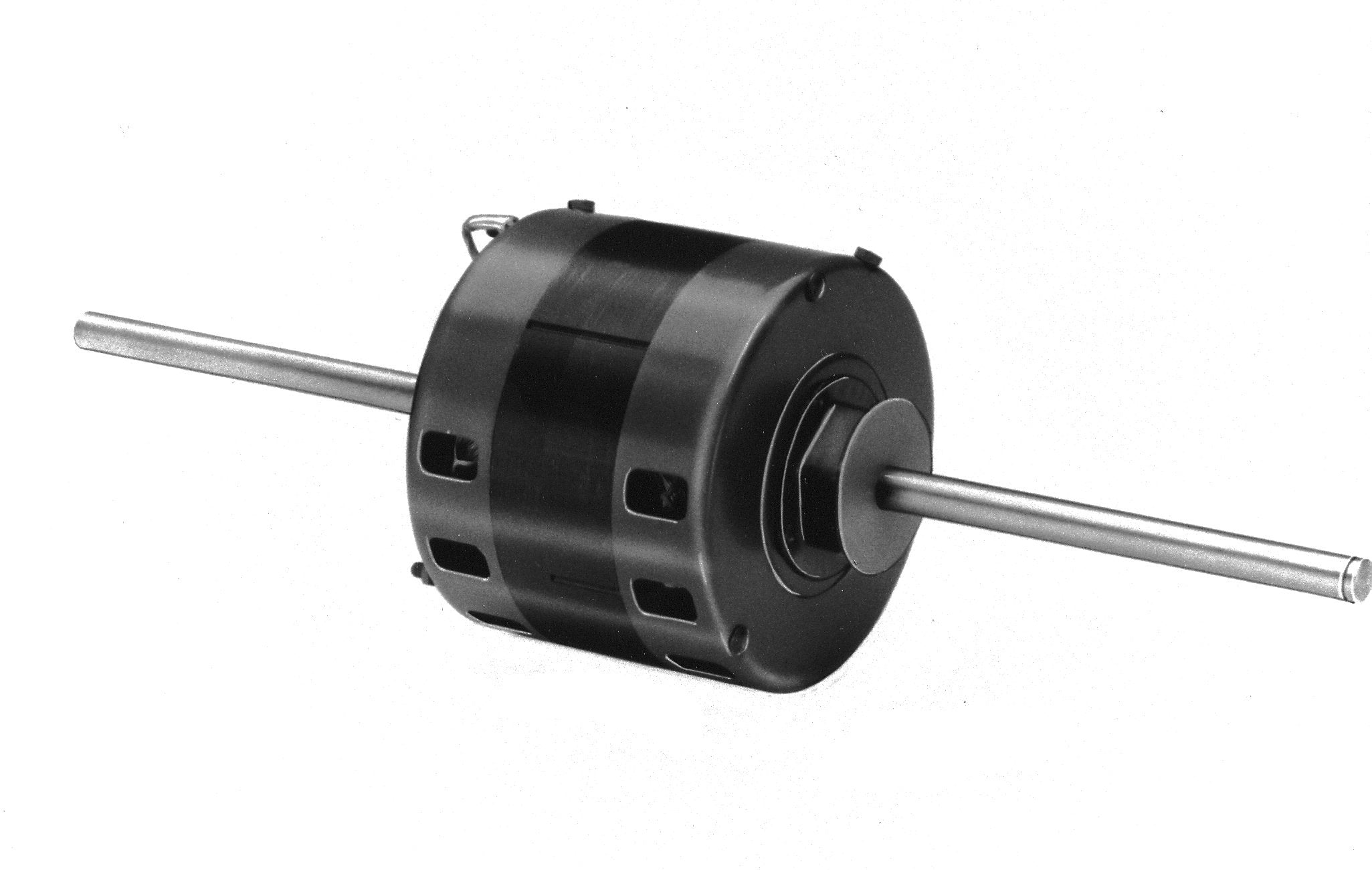

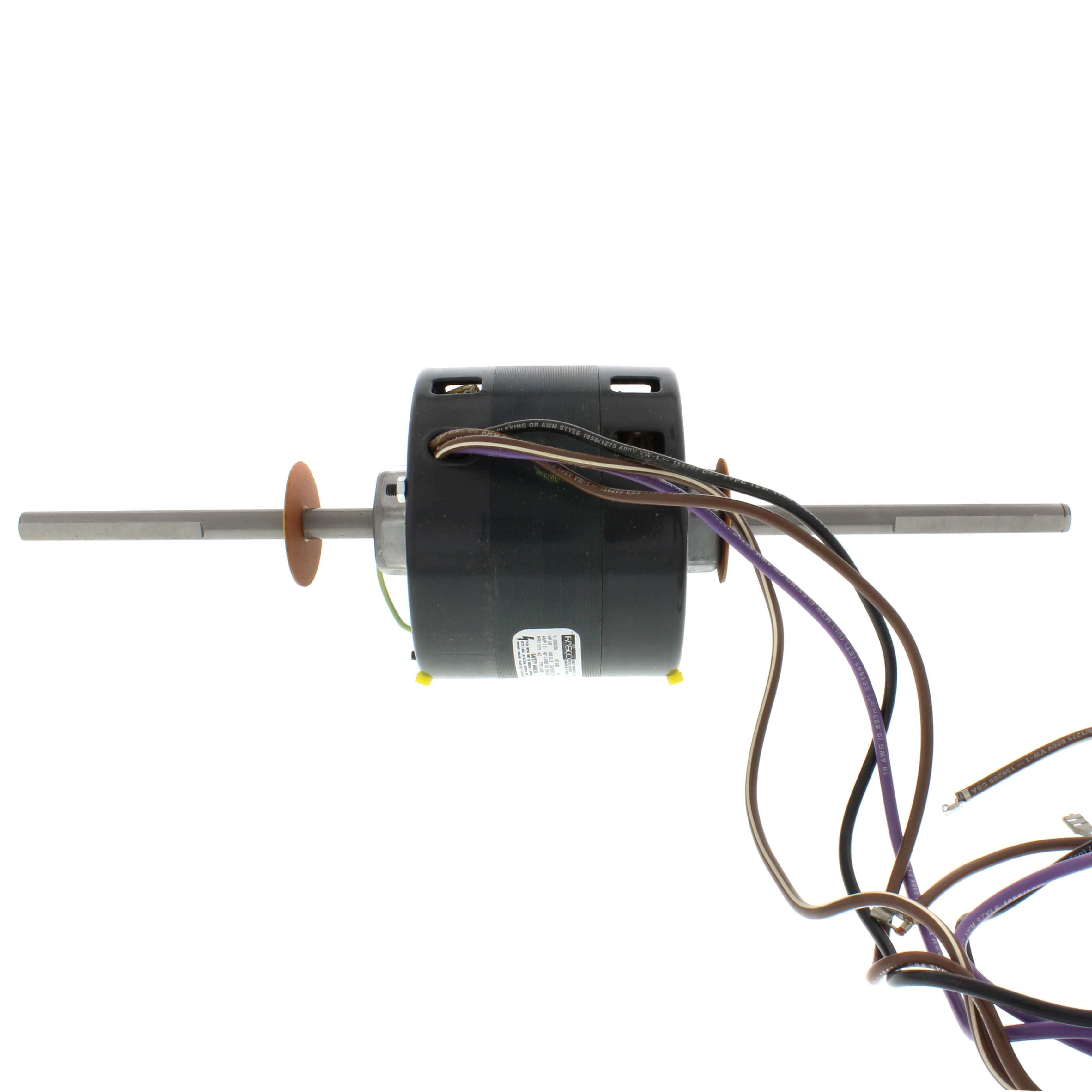

Fasco D1042 Permanent Split Capacitor Motor 1/5HP 5 inches Frame Replacement

Product Description

The Fasco D1042 is a permanent split capacitor motor designed for various applications. This motor operates at 208-230 volts and has a power rating of one fifth horsepower with a speed of 1075 RPM. It is a direct OEM replacement offering efficient performance.

• Designed for York ventilation systems
• Thermally protected for added safety
• Features sleeve bearings for reduced friction

Product Highlights

Ideal for HVAC systems requiring reliable motor performance, the Fasco D1042 is used in both residential and commercial settings.

Product Information

Standard Information

• Brand: Fasco
• Manufacturer: Fasco Motors

Technical Specifications

• Speed: 1075 RPM
• Voltage: 208-230 V
• Electrical Type: Permanent Split Capacitor
• Horse Power: 1/5 HP
• Frame: 42
• Enclosure: Open Air Over
• Phase: Single
• Rotation: CCWSE
• Overload: Automatic
• Mounting: Hexagonal Hubs
• Amperage: 1.2 A
• Shaft Type: Flat
• KW: 0.15
• Shaft Diameter: 0.5 inches
• Bearings: Sleeve
• Shaft Extension: 6.5 inches
• Frequency: 60 Hz
• Insulation Class: B
• Poles: 6
• Service Factor: 1
• Ambient Temperature: 40°C
• Duty: Continuous
• Mount: Resilient Rings
• Approvals: UL
• Length Less Shaft: 4.125 inches
• Full Load Current: 1.2 Amps
• Certifications: UL and CSA
