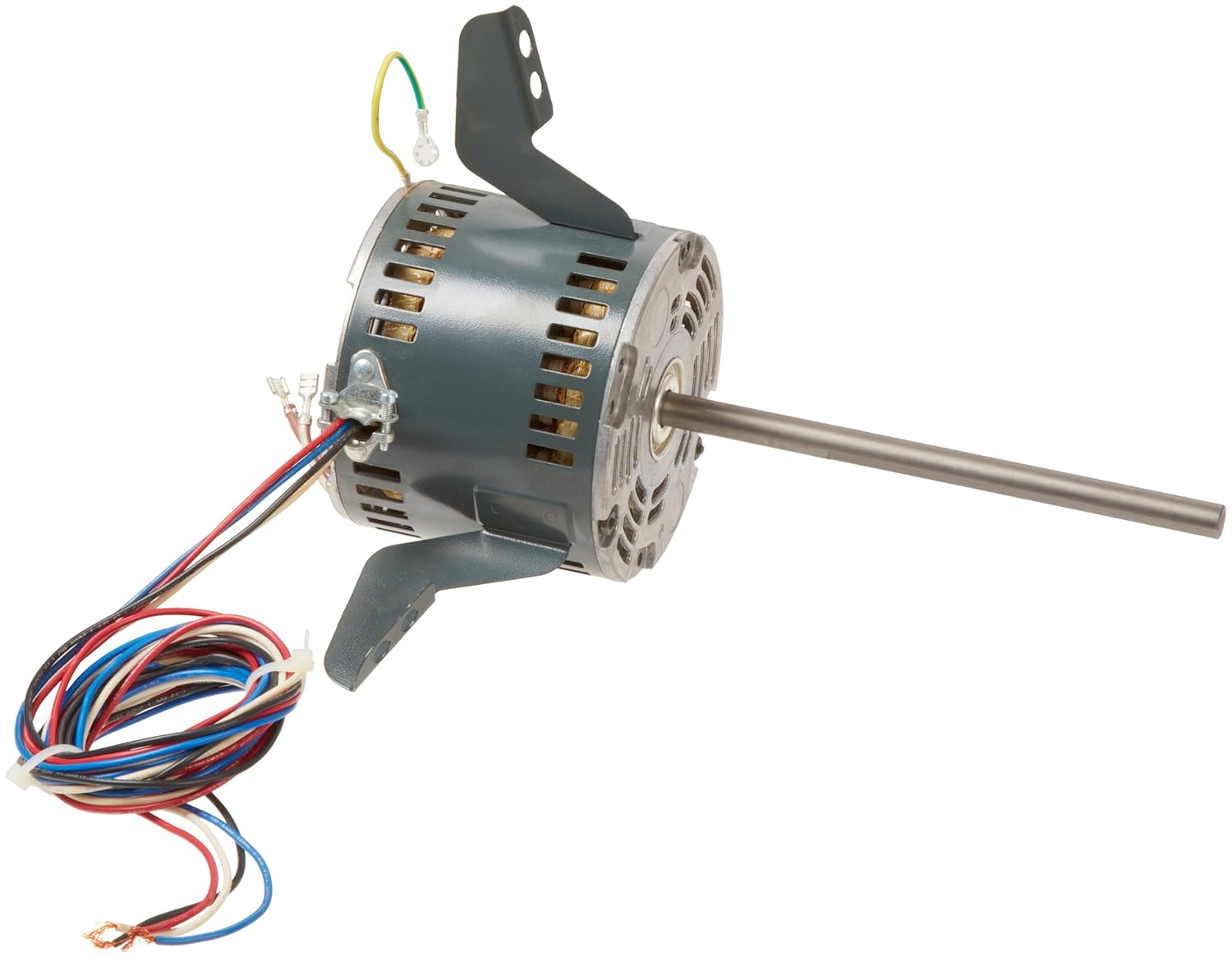

Fasco D1040 OEM Replacement Motor 1/5 HP 925rpm 208/240V

Product Description

The Fasco D1040 is an OEM replacement motor designed for use in various applications. This motor features a permanent split capacitor design, suitable for single-phase operations. It operates at one-fifth horsepower with a speed of nine hundred twenty-five RPM. The voltage rating is two hundred eight to two hundred forty volts at sixty Hertz. Its clockwise rotation is ideal for condenser fans and similar equipment.

• Permanent split capacitor motor design
• Thermally protected for safety
• Open air-over design for efficient cooling

Product Highlights

This motor includes a sleeve bearing and is CSA certified. It is thermally protected and is designed for continuous duty operation. The motor shaft has a diameter of half an inch and extends eight point one inches, suitable for various fan and blower applications.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1040

Technical Specifications

• Horsepower: 1/5
• RPM: 925
• Voltage: 208/240
• Amperage: 1.6
• Frame Size: 42
• Mounting Type: Lug
• Shaft Diameter: 0.5 inches
• Shaft Length: 8.1 inches
• Insulation Class: B
• Temperature Rating: 40°C
• Motor Type: Permanent Split Capacitor
• Design: Open Air Over
• Duty Cycle: Continuous
• Application: Fans and Blowers
• Country of Origin: Mexico
