Fasco D1038 1/25 HP Blower Motor 115V 60Hz Replacement MPN

Product Description

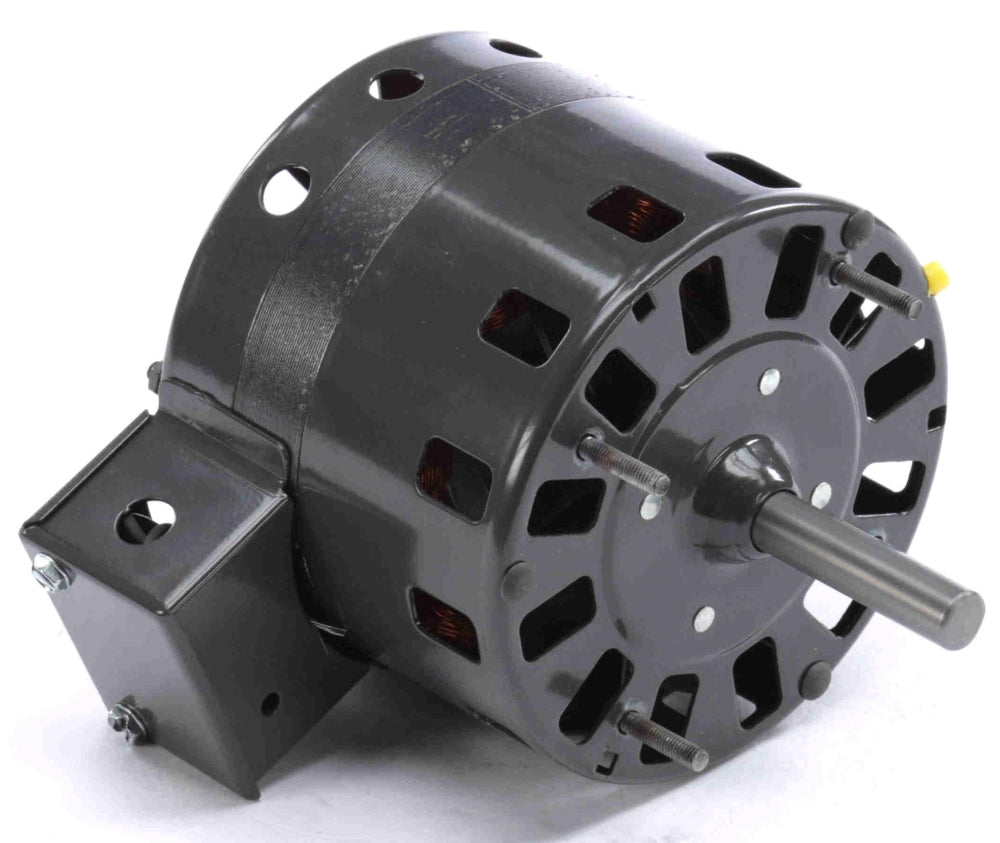

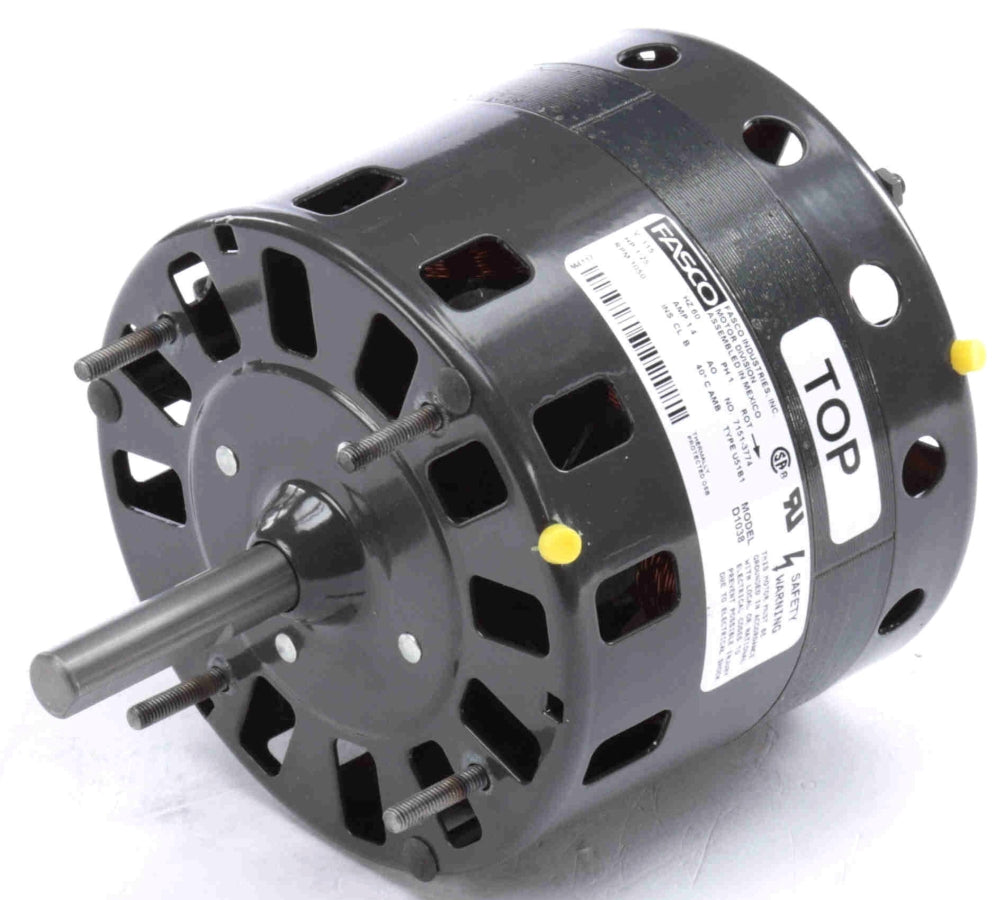

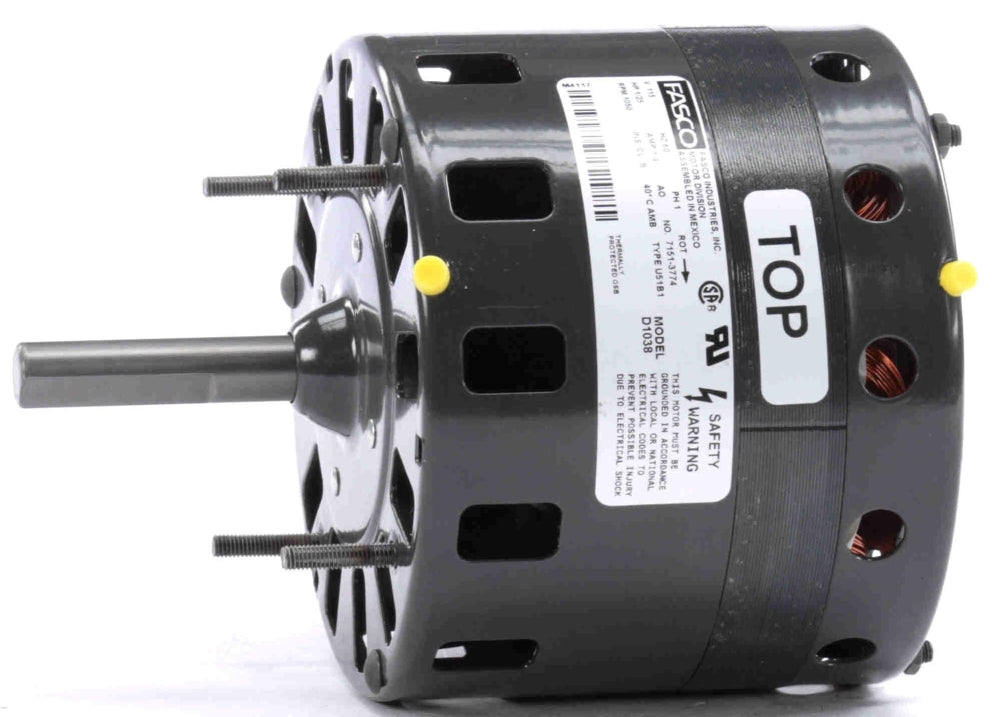

Fasco D1038 is a unit heater motor with a power rating of one twenty-fifth horsepower. This motor operates on one hundred fifteen volts with a frequency of sixty hertz, suitable for a variety of HVAC applications. The motor features a six-pole design, enabling it to reach a speed of one thousand fifty RPM.

• Power Rating: 1/25 HP
• Voltage Rating: 115 VAC
• Insulation Class: B

Product Highlights

The Fasco D1038 is built for durability with class B insulation and includes an open air-over enclosure for cooling. The extended stud mounting design is ideal for unit heater applications, providing ease of installation and robust performance.

Product Information

Standard Information

• Motor Type: Shaded Pole
• Shaft Type: Flat

Technical Specifications

• Service Factor: 1
• NEMA Frame Size: 42
• Ambient Temperature Rating: 40 Deg C
• Weight: 7 Pound
• Mounting Style: Extended Stud
• Frequency Rating: 60 Hertz
• Motor FLA: 1.4 Amp
• Speed Rating: 1050 RPM
• Shaft Size: 1/2 Inch Diameter x 2-1/2 Inch Length (Extension)
