Fasco D1036 5 Frame Open Ventilated Shaded Pole Ventilator and Unit Heater Motor 1/20HP 1050rpm 115V

Product Description

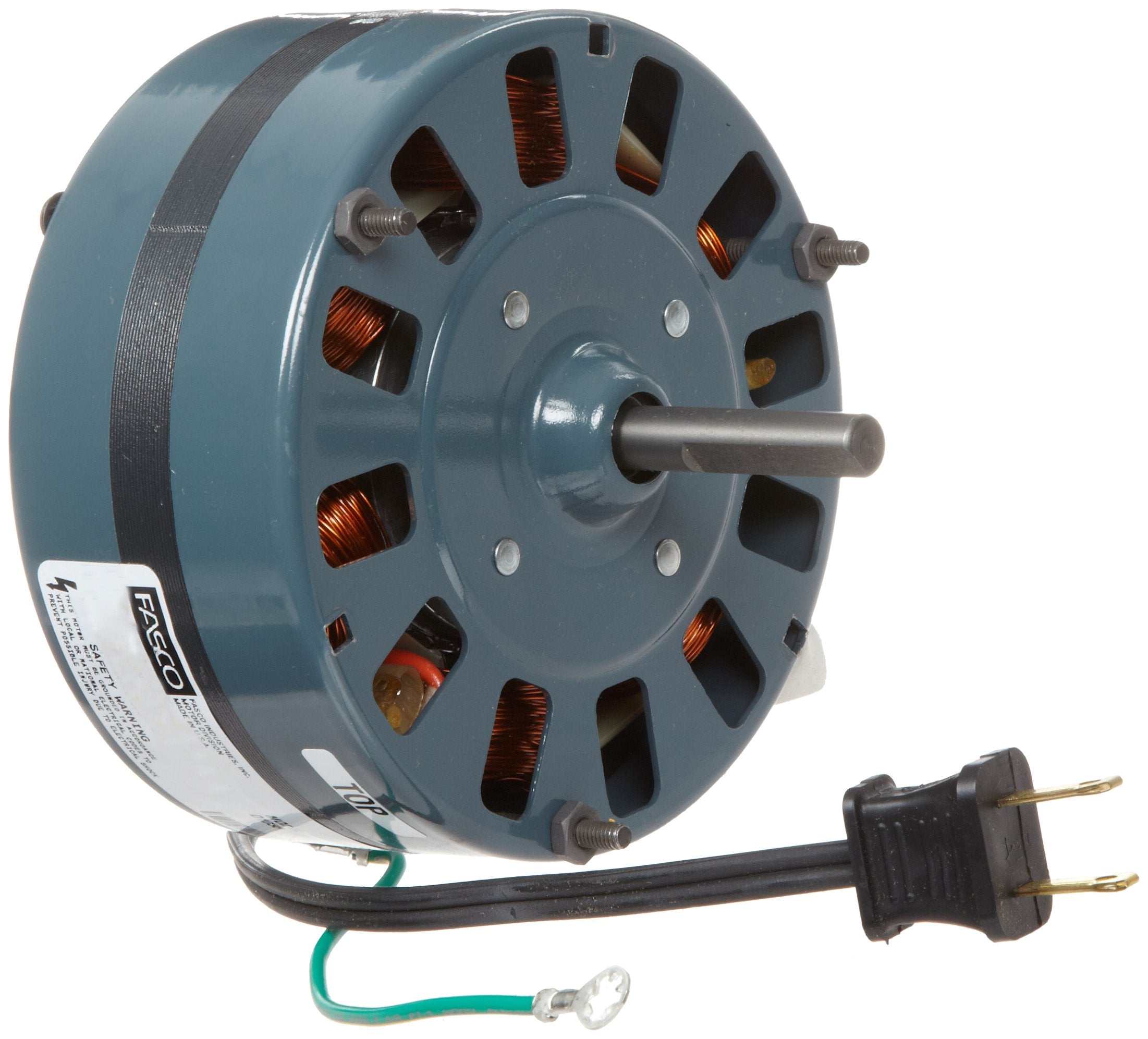

The Fasco D1036 is a 5-frame open ventilated shaded pole ventilator and unit heater motor. Designed for trade professionals, this unit provides reliable performance with its 1/20 horsepower motor, operating at 1050 rpm and 1.95 amps. It features a thermally protected design and is UL recognized. The motor operates at 115 volts and has a clockwise shaft end rotation, making it suitable for various ventilatory applications.

• Thermally protected
• UL recognized
• Clockwise shaft end rotation

Product Highlights

This motor is ideal for roof-top ventilators and other applications requiring a shaded pole open and totally closed ventilation system. It includes a 3/8-inch diameter shaft measuring 2-1/8 inches in length, with an overall motor length of 2-3/8 inches.

Product Information

Standard Information

• Brand: Fasco
• Model: D1036

Technical Specifications

• Horsepower: 1/20 HP
• RPM: 1050
• Voltage: 115 V
• Amps: 1.95
• Shaft Diameter: 3/8 inches
• Shaft Length: 2-1/8 inches
• Motor Length: 2-3/8 inches
• Rotation: Clockwise Shaft End
