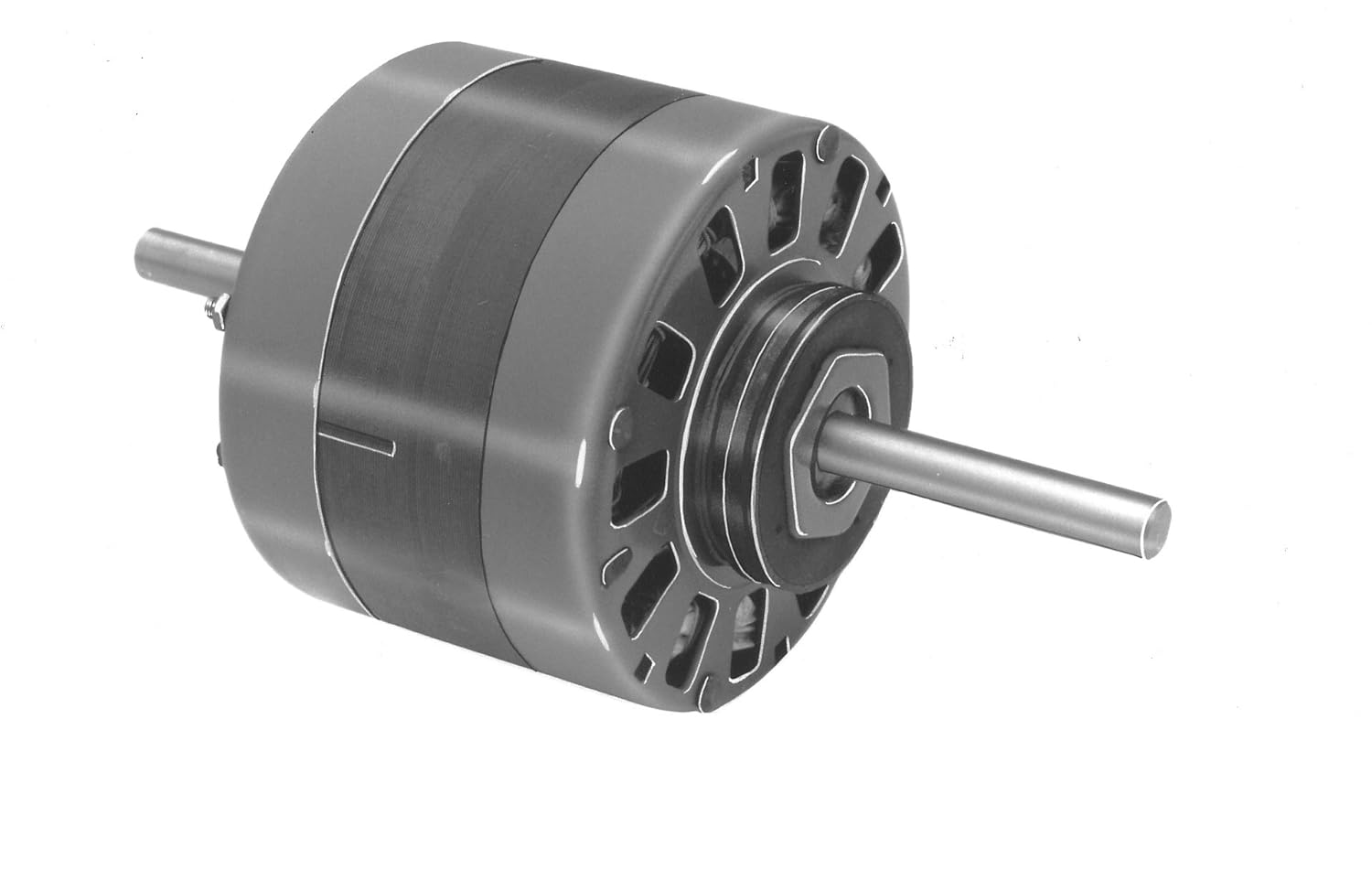

Fasco D1033 5 Frame Permanent Split Capacitor Tempmaster/Otasco Open Ventilated OEM Replacement Motor with Sleeve Bearing, 1/5-1/6-1/8HP, 1400 RPM, 208-230V

Product Description

The Fasco D1033 is a permanent split capacitor motor designed as an OEM replacement for Tempmaster and Otasco systems. This motor operates at one fifth to one eighth horsepower and maintains a speed of one thousand four hundred RPM. It functions effectively at a voltage range of two hundred eight to two hundred thirty volts and requires current ranging from one point six to one point three amps. The motor is built with sleeve bearings and is equipped for open ventilated applications.

• OEM replacement motor with sleeve bearing
• Thermally protected for safe operation
• UL recognized and CSA certified

Product Highlights

Utilize this motor for reliable performance in various HVAC systems requiring a permanent split capacitor type motor.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Model Number: D1033

Technical Specifications

• Power Rating: 5/6 HP
• Speed: 1400 RPM
• Voltage: 208-230V
• Amperage: 1.6-1.5-1.3A
• Motor Type: Permanent Split Capacitor
• Rotation: Clockwise
• Mounting: Resilient rings
• Frame Size: 42
