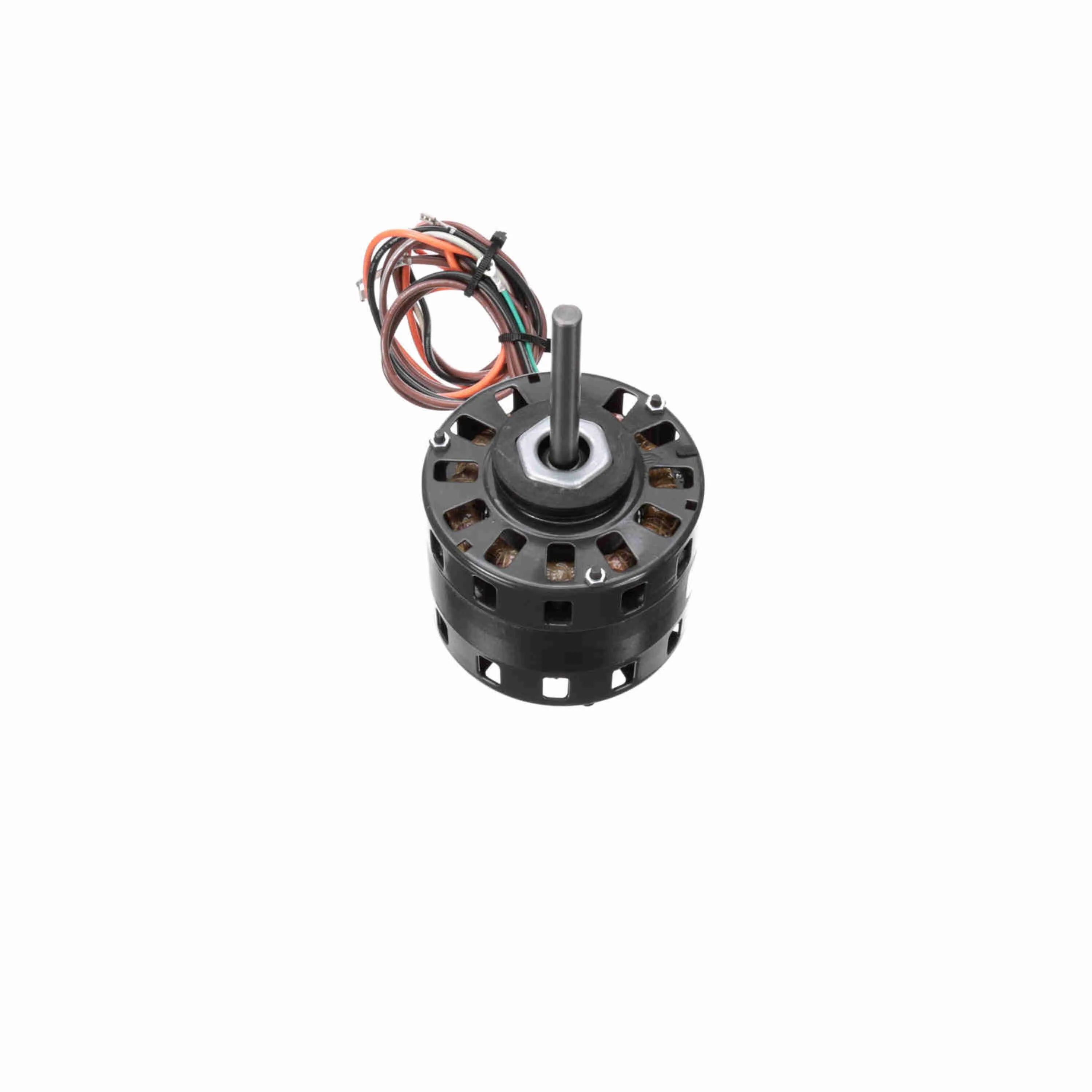

FASCO D1016A OEM Replacement Motor 1/4 HP 1 Phase 60 Hz 230 V

Product Description

The FASCO D1016A is an OEM replacement motor suitable for HVAC applications. This motor operates at two hundred thirty volts and sixty hertz. It has a power output of one quarter horsepower, running at one thousand one hundred RPM with one speed. It features a frame size of forty-two and an open air over enclosure.

• OEM Direct Replacement Motor
• Five inch diameter, forty-two frame
• Permanent Split Capacitor (PSC); Capacitor Required: five Mfd-370 Volts (Not Supplied with Motor)

Product Highlights

This motor is engineered for continuous duty use and includes automatic thermal protection to ensure reliable operation across various settings.

Product Information

Standard Information

• Phase: 1
• Output HP: 1/4

Technical Specifications

• Output KW: 0.19
• Voltage: 230 V
• Speed: 1100 RPM
• Service Factor: 1
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Current: 1.6 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Clockwise Shaft End
• Shaft Type: Flat
• Overall Length: 8.67 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 3.51 inches
• Height: 13.34 cm
• Length: 25.73 cm
• Width: 13.34 cm
