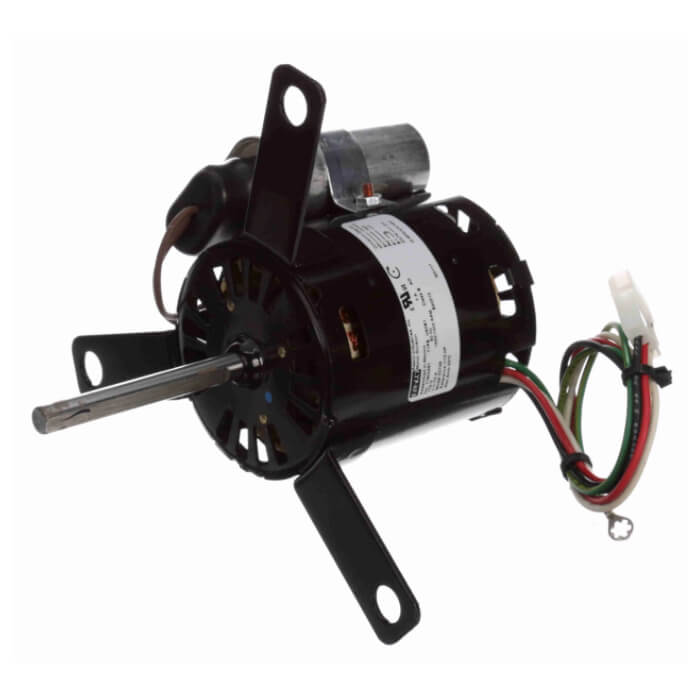

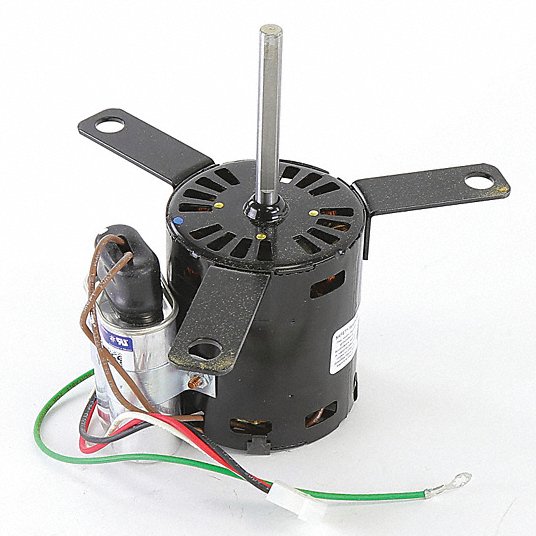

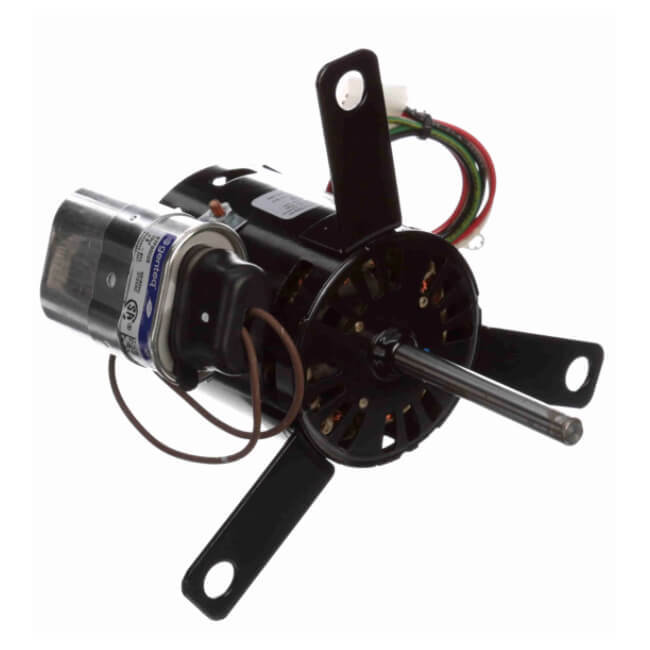

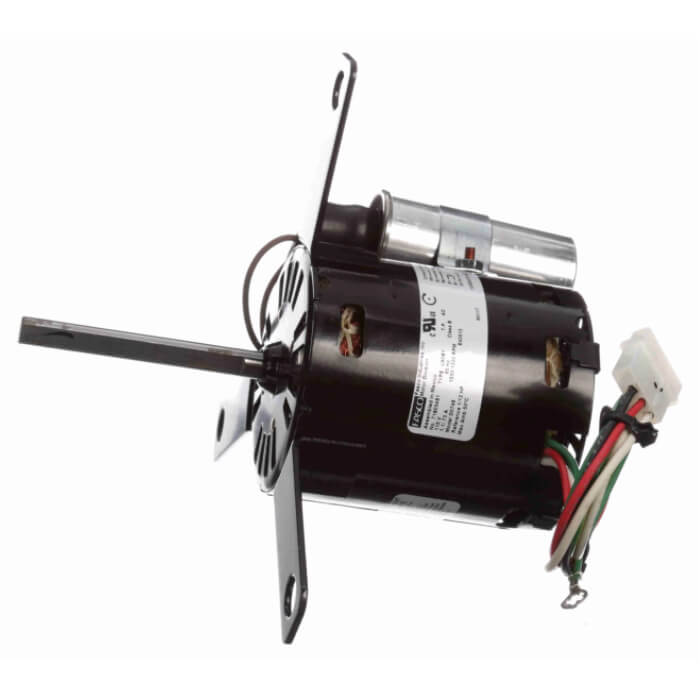

Fasco D0746 Motor 115V

FASCO
Brand: FASCO
SKU: D0746
Availability: Out Of Stock
$132.80
$132.80
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The FASCO D0746 is a 115V motor suitable for fan and blower applications. This OEM replacement HVAC AC motor matches the equipment's existing motor from the original manufacturer to ensure consistent performance and correct installation. It operates at 1550/1300 RPM with 2 speeds and a power of 1/12 HP.

  • OEM replacement HVAC AC motors
  • Matches equipment's existing motor from the original manufacturer
  • Ensures consistent performance and correct installation

Product Highlights

The FASCO D0746 motor ensures consistent performance and correct installation for HVAC systems.

Product Information

Standard Information

  • Brand: FASCO
  • Manufacturer Part Number: D0746
  • Country of Origin: Mexico
Technical Specifications
Product Type
General Purpose Motors
RPM
1550
Speeds
2
Voltage
115V
Horse Power
1/12
Manufacturer Part Number
D0746
Motor
Motor
Compatible Brand
Fasco
Phase
Single
Motor Design
Permanent Split
Nameplate Horsepower @ 60 Hz
1/12 hp
Nameplate RPM @ 60 Hz
1,550/1,300 RPM
Nameplate Voltage @ 60 Hz
115V AC
Full Load Current @ 60 Hz
1.1/0.73 A
Shaft Diameter
3/8 in
Shaft Length
2-15/16 in
Overall Length
7-3/8 in
Mounting Stud Length
1/2 in
Motor Shaft Rotation
CWSE
Number of Speeds
2
Mounting Type
Lug
Standards
UL Recognized
Ambient Temperature - Maximum
50 °C
Bearing Type
Sleeve
Body Diameter
3.3 in
Bolt Circle Diameter
7-5/8 in
Frame Material
Steel
Insulation Class
B
Length Less Shaft
3-15/16 in
Motor Enclosure Type
Open Air
Nameplate Service Factor @ 60 Hz
1
Output HP
1/12 Hp
Output KW
0.06 kW
Speed
1550/1300 rpm
Service Factor
1
Frame
3.3
Enclosure
Open Air Over
Thermal Protection
Thermally Protected
Ambient Temperature
50 °C
Frequency
60 Hz
Current
1.10/0.73 A
Duty
Air Over
Electrical Type
Permanent Split Capacitor
Starting Method
Across The Line
Poles
4
Rotation
Clockwise Shaft End
Drive End Bearing
Sleeve
Opp Drive End Bearing
Sleeve
Shaft Type
Flat
