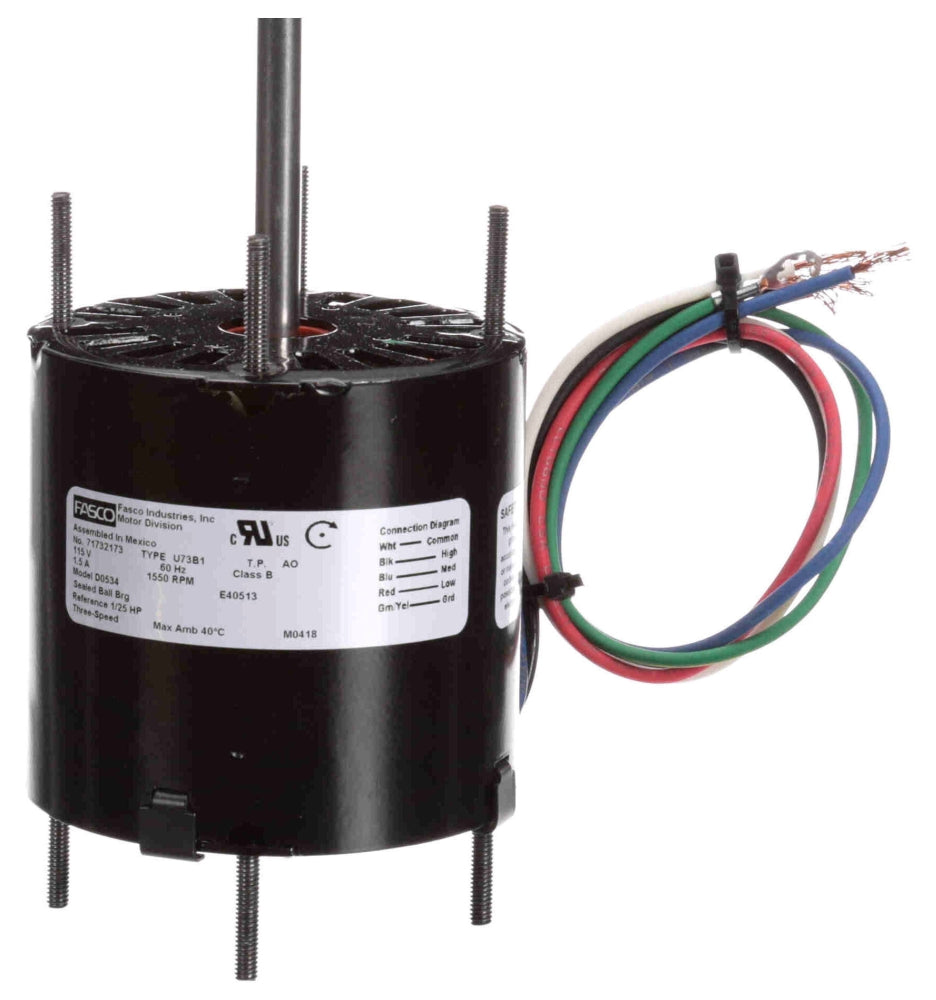

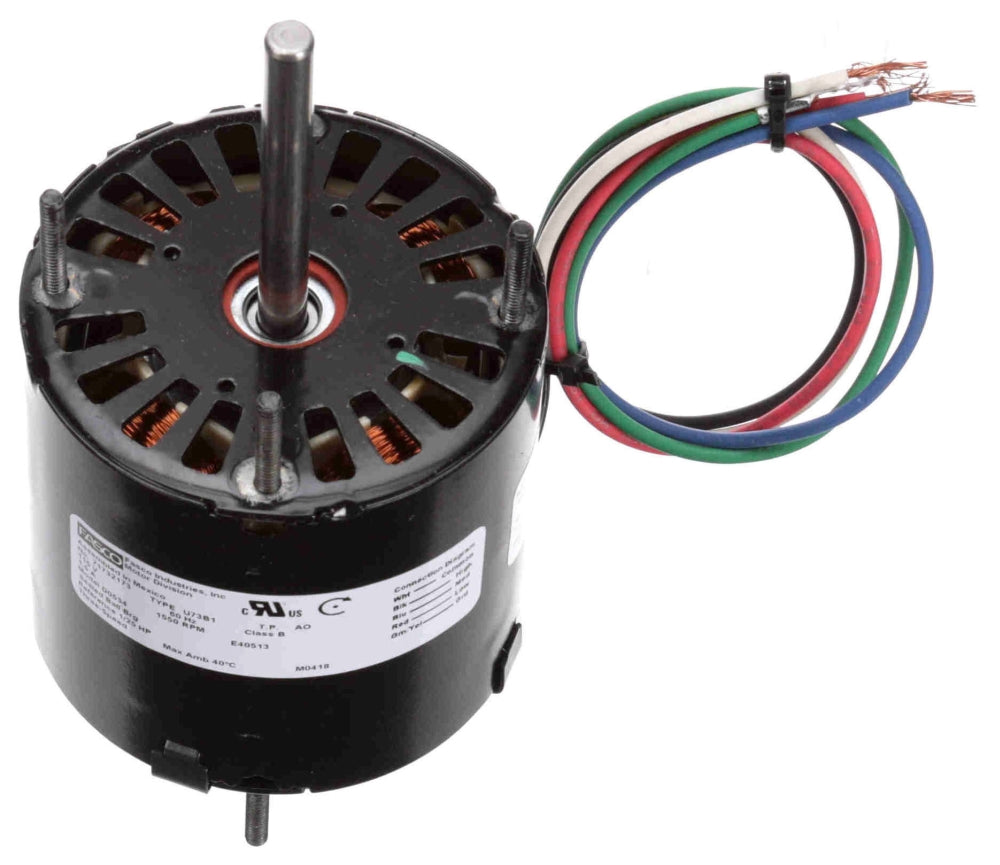

Fasco D0534 Ventilation Motor 115V 1/25 HP 1550 RPM

Product Description

The Fasco D0534 Ventilation Motor is a 1/25 horsepower motor designed for HVAC systems. It runs at 115 volts and has a speed rating of 1550 RPM. This motor is shaded pole type with a flat shaft and thermally protected for extended life.

• 1/25 HP
• 115 Volt AC
• 1550 RPM

Product Highlights

Ideal for fan and blower applications, this motor features a steel frame, extended stud mounting, and a semi-enclosed, open air-over design.

Product Information

Standard Information

• Brand: Fasco
• MPN: D0534

Technical Specifications

• Power Rating: 1/25 HP
• Voltage: 115 Volt AC 1-Phase
• Frequency: 60 Hertz
• Motor FLA: 1.5 Amp
• Number of Speeds: 3
• Speed Rating: 1550 RPM
• Service Factor: 1
• Insulation Class: B
• Frame Material: Steel
• Mounting: Extended Stud
• Weight: 4 Pound
• Application: Fan and Blower
• Approval: UL
• Type: Shaded Pole
• Shaft Type: Flat
• Rotation Type: Clockwise Shaft End
• Bearing Type: Sleeve (Drive End/Opposite Drive End)
• Number of Poles: 4
• Size: 3.3 Inch Diameter x 5.79 Inch Length
• Shaft Size: 0.312 Inch Diameter x 2.5 Inch Length (Extension)
• Frame Length: 3.24 Inch
• Starting Method: Across the Line
• Ambient Temperature Rating: 40 Deg C
• Includes: 12 Inch Lead, Extended Studs on Shaft End and Lead End, Open Shaft End End-Frame and Lead End End-Frame, Enclosed Shell
