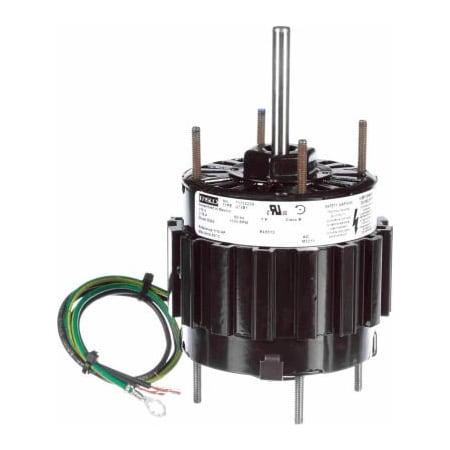

Fasco D043 Ventilation Motor 4/57 HP 1550 RPM 115V Replacement Motor

Product Description

The Fasco D043 Ventilation Motor is a reliable choice for HVAC applications. This motor operates at 1550 RPM with a power rating of 4/57 HP. Designed for durability and efficiency, it features a shaded pole electrical type and runs on 115V.

• Shaded pole electrical type
• 1550 RPM speed
• Thermally protected

Product Highlights

This motor is ideal for use in fans and blowers. It is thermally protected to prevent overheating and has a counterclockwise shaft end rotation. The motor is designed with a 3.3-inch diameter and extended studs for easy mounting.

Product Information

Standard Information

• Brand: Fasco
• MPN: D043
• Product Type: Ventilation Motor
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Shaded Pole
• HP: 1/15
• RPM: 1550
• Diameter: 3.3 inches
• Enclosure: Open Air Over
• Phase: Single
• Voltage: 115
• Rotation: Counterclockwise Shaft End
• Material: Steel
• Mounting: Extended Studs
• Amperage: 2.18
• Shaft Type: Flat
• KW: 0.05
• Shaft Diameter: 0.312 inches
• Bearings DE Type: Sleeve
• Bearings ODE Type: Sleeve
• Shaft Extension: 2.5 inches
• Overload Protection: Thermally Protected
• Insulation Class: B
• Frequency: 60 Hz
• Poles: 4
• Ambient Temperature: 40°C
