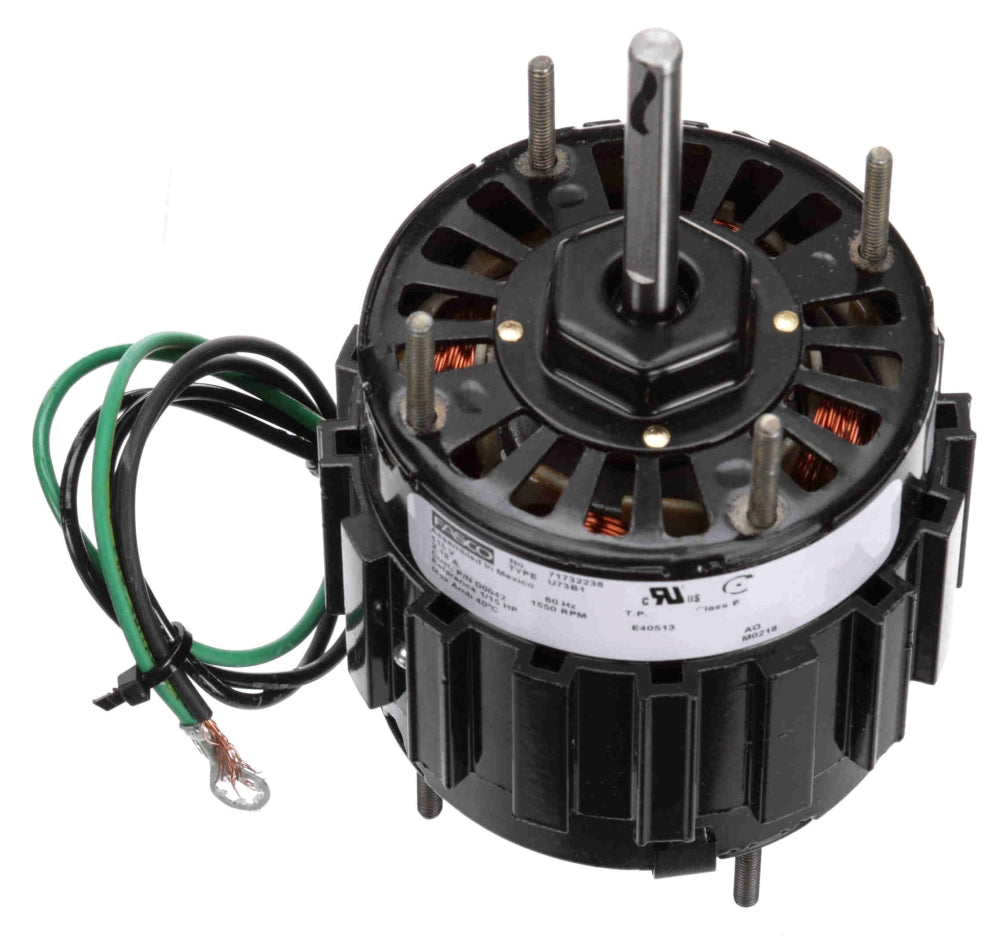

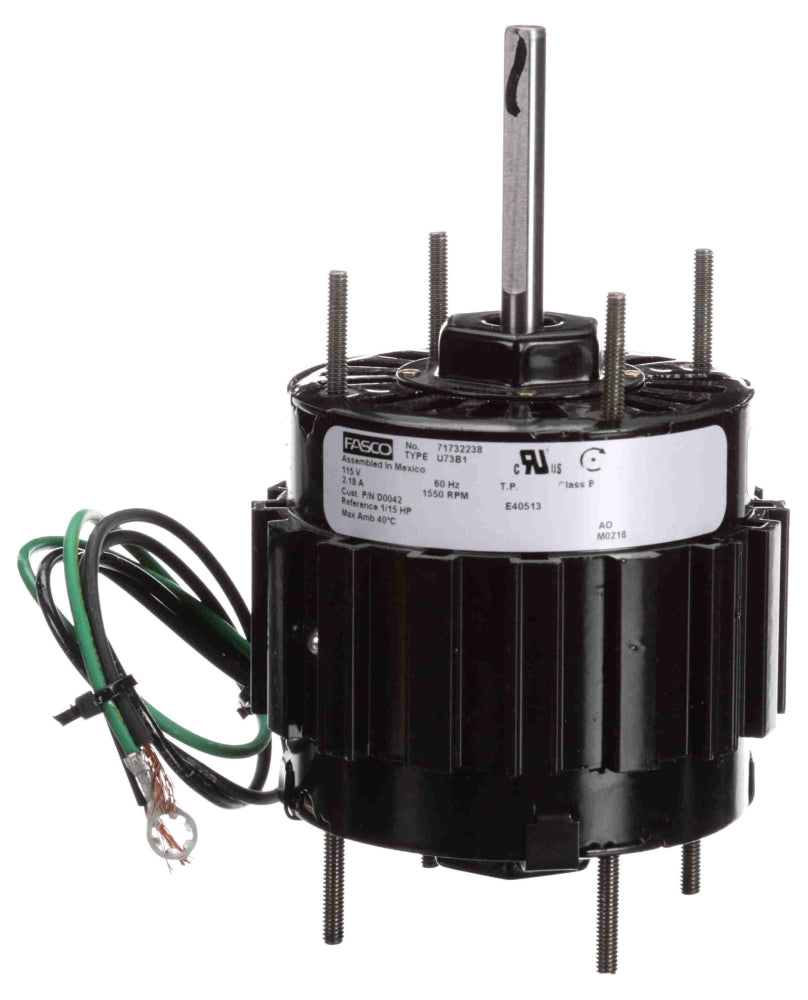

Fasco D0042 Ventilation Motor 1/15 HP

Product Description

The Fasco D0042 Ventilation Motor is designed for various HVAC applications, providing reliable performance with a power rating of 1/15 HP. This motor operates at 115 VAC with a frequency rating of 60 Hertz. It features a shaded pole design and is thermally protected to ensure longevity.

• 1/15 HP power rating
• 115 VAC, 60 Hertz
• Thermally protected

Product Highlights

The Fasco D0042 Ventilation Motor is suitable for fan and blower applications and is thermally protected to prevent overheating. Its shaded pole design enhances efficiency, and the motor includes extended studs for easy mounting.

Product Information

Standard Information

• Brand: Fasco
• MPN: D0042
• UPC: 66300100153
• Type: Shaded Pole
• Voltage Rating: 115 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Insulation Class: B
• Mounting: Extended Studs
• Weight: 4 Pound
• Approvals: UL

Technical Specifications

• Power Rating: 1/15 HP
• Speed Rating: 1550 RPM
• Service Factor: 1
• Frame Material: Steel
• Motor FLA: 2.18 Amp
• Shaft Type: Flat
• Rotation Type: Clockwise Shaft End
• Bearing Type: Sleeve (Drive End/Opposite Drive End)
• Number of Poles: 4
• Size: 3.3 Inch Diameter x 6.08 Inch Length
• Shaft Size: 0.313 Inch Diameter x 2.5 Inch Length (Extension)
• Frame Length: 2.91 Inch
• Starting Method: Across the Line
• Ambient Temperature Rating: 40 Deg C
• Includes: 12 Inch Lead, Extended Studs Shaft End and Lead End, Open Shaft End End-Frame and Lead End End-Frame, Enclosed Shell
