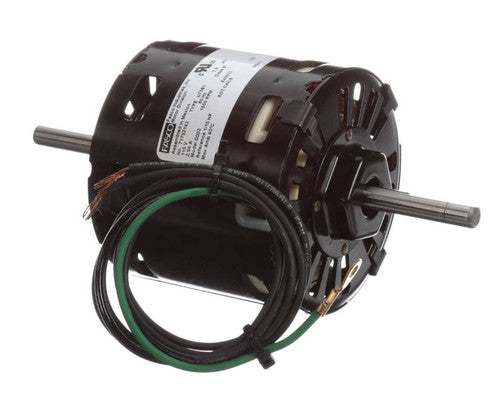

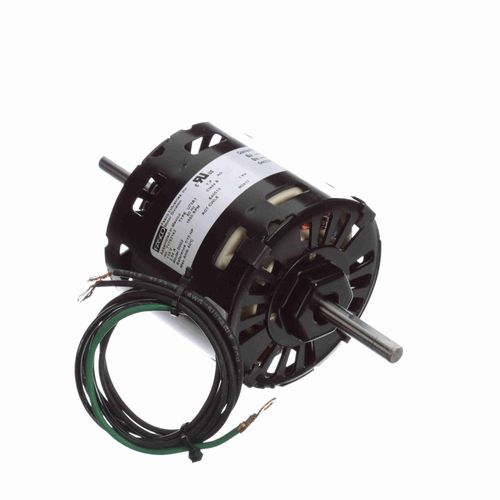

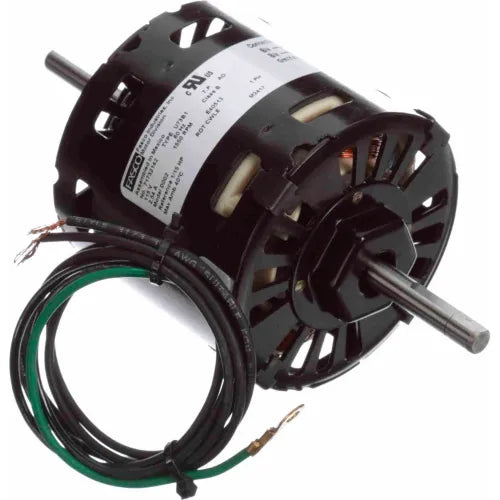

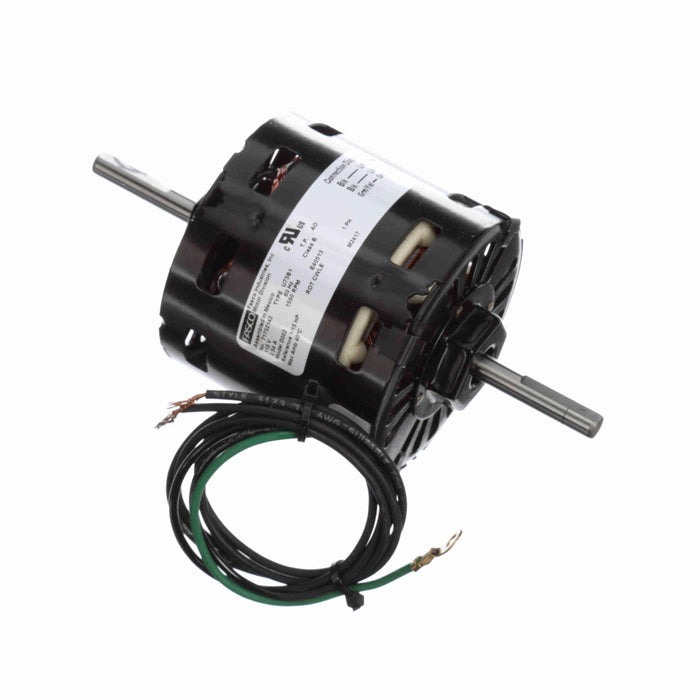

FASCO D002 Oem Replacement Motor 1/15 HP

Product Description

The FASCO D002 is an OEM replacement motor designed for effective use across various applications. Operating at 115V with a speed of 1550 RPM, this motor delivers 1/15 HP. It features a shaded pole design and is housed in an open air over enclosure. With a diameter of 3.3 inches, it is built for easy installation thanks to the hexagonal hub.

• OEM Direct Replacement Motor
• Thermally Protected
• Steel construction for durability

Product Highlights

The motor offers reliable performance and is thermally protected to prevent overheating.

Product Information

Standard Information

• Electrical Type: Shaded Pole
• HP: 1/15

Technical Specifications

• RPM: 1550
• Diameter: 3.3 inches
• Enclosure: Open Air Over
• Phase: Single
• Voltage: 115 V
• Rotation: Clockwise Lead End
• Material: Steel
• Mounting: Base
• Amperage: 2.54
• Shaft Type: Flat
• Output KW: 0.05 kW
• Speed: 1550 rpm
• Service Factor: 1
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 2.54 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• Number of Speeds: 1
• Starting Method: Across The Line
• Poles: 4
• Frame Material: Steel
• Overall Length: 6.92 inches
• Frame Length: 2.82 inches
• Mounting Location: Hexagonal Hubs
• Motor Shell Length: 3 inches
• Mounting Orientation: Horizontal
• Volts: 115
