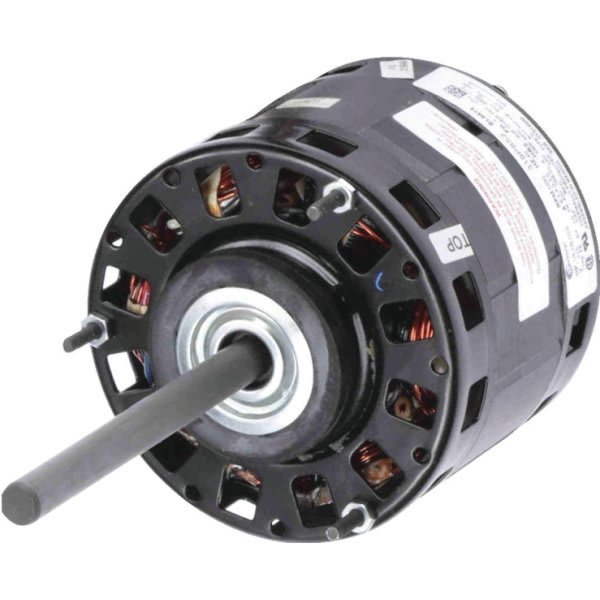

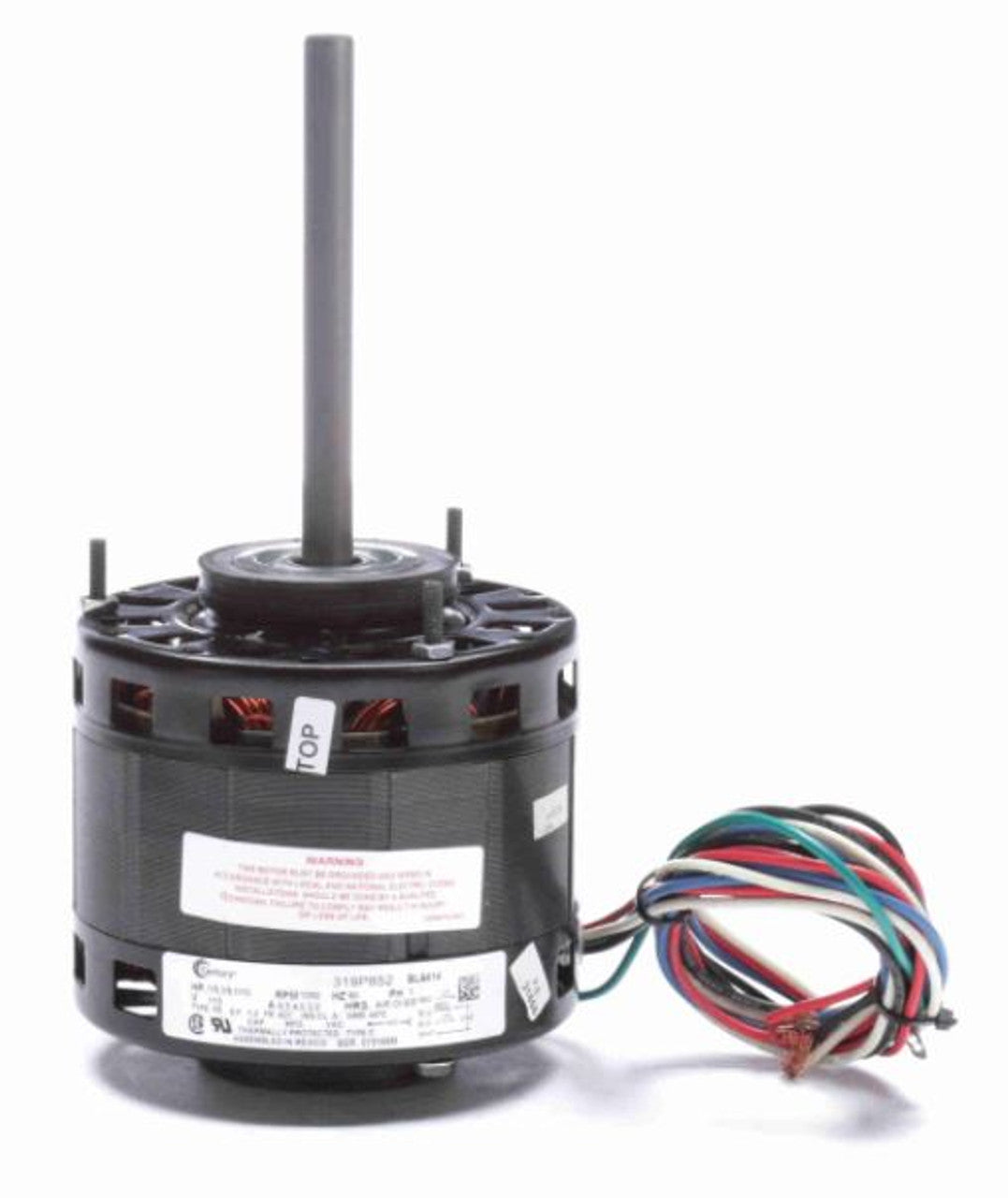

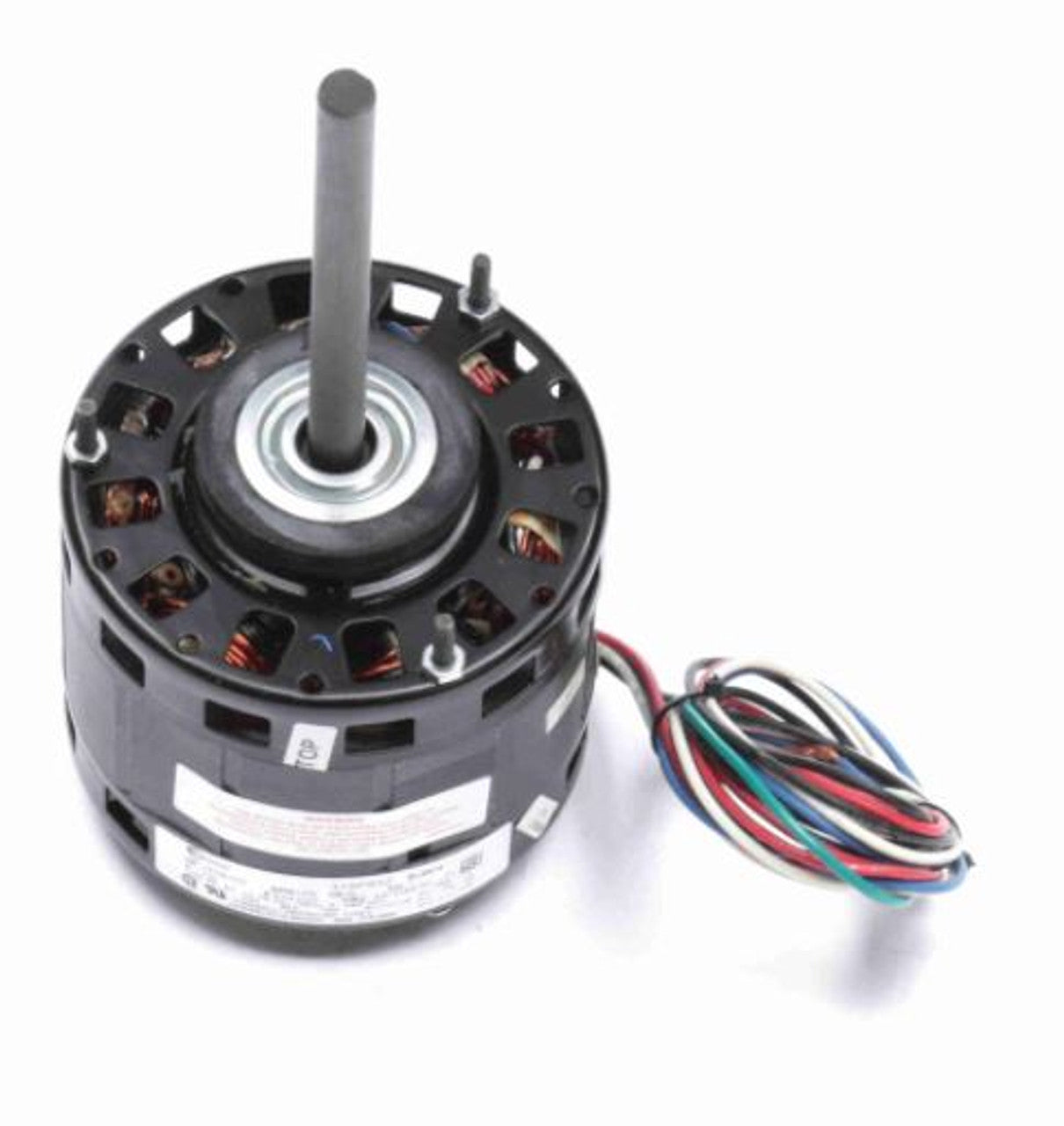

Fasco BL6414 Fan and Blower Motor 1/5,1/8,1/10 HP REPLACEMENT D158

Product Description

The Fasco BL6414 is a fan and blower motor ideal for furnace blowers, attic ventilators, air handlers, and fan coil motor applications. This shaded pole motor has an open air over enclosure and operates at one hundred fifteen volts with a speed of one thousand fifty RPM. It offers three speed options and features resilient ring mounting, making it suitable for various installations.

• Suitable for furnace blowers and attic ventilators.
• Operates efficiently at one hundred fifteen volts.
• Available in three speed options.

Product Highlights

This motor is designed for long-term use with automatic thermal protection and meets safety standards with UL and CSA recognition.

Product Information

Standard Information

• Phase: 1
• Output HP: 1/5, 1/8, 1/10 HP

Technical Specifications

• Voltage: 115 V
• Speed: 1050 RPM
• Frame: 42Y
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Frequency: 60 Hz
• Current: 6.5 A, 4.0 A, 3.0 A
• Number of Speeds: 3
• Duty: Air Over
• Insulation Class: A
• Overall Length: 9.38 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 5.5 inches
• Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Motor Orientation: Horizontal
• Shaft Length: 3.87 inches
• Continuous Duty: Yes
