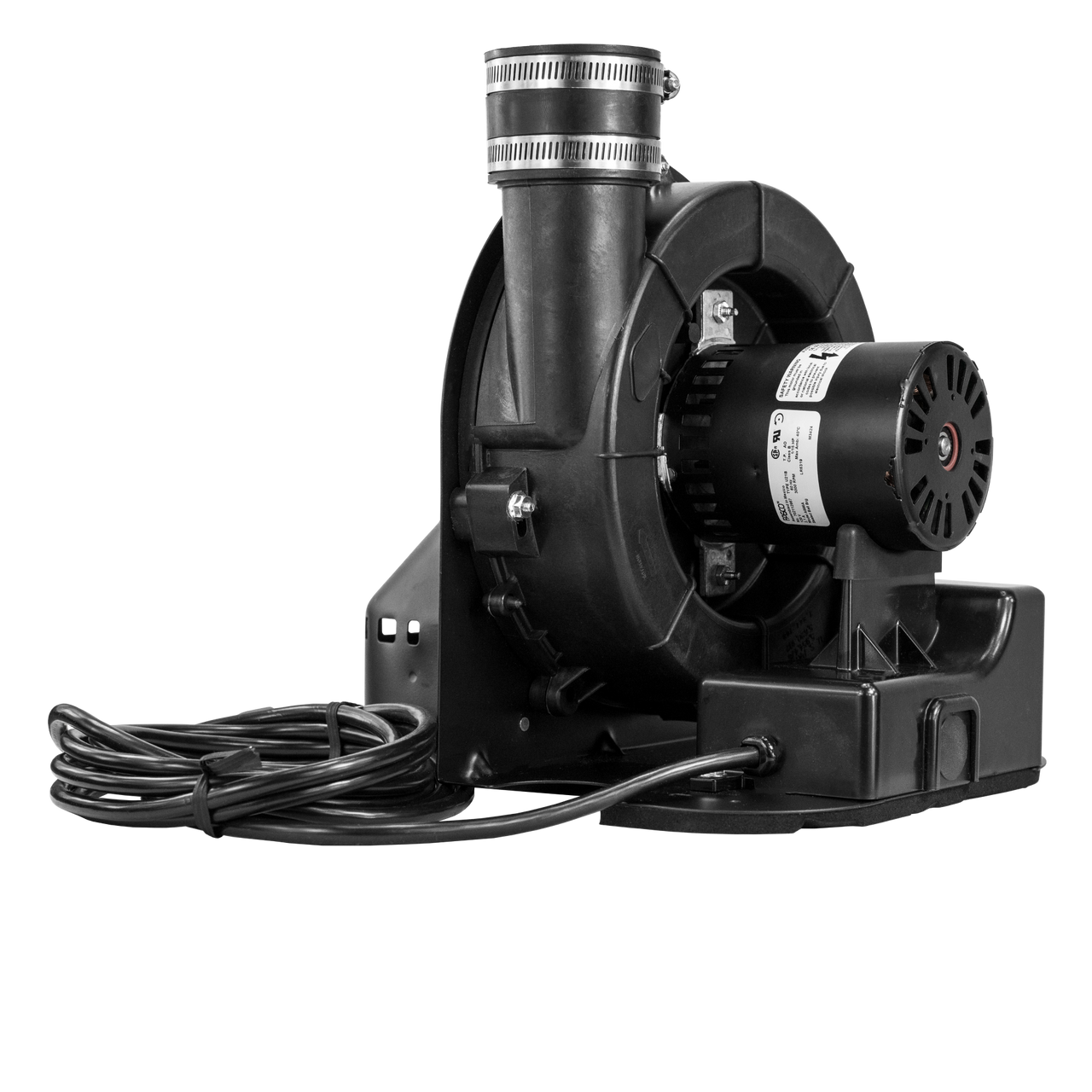

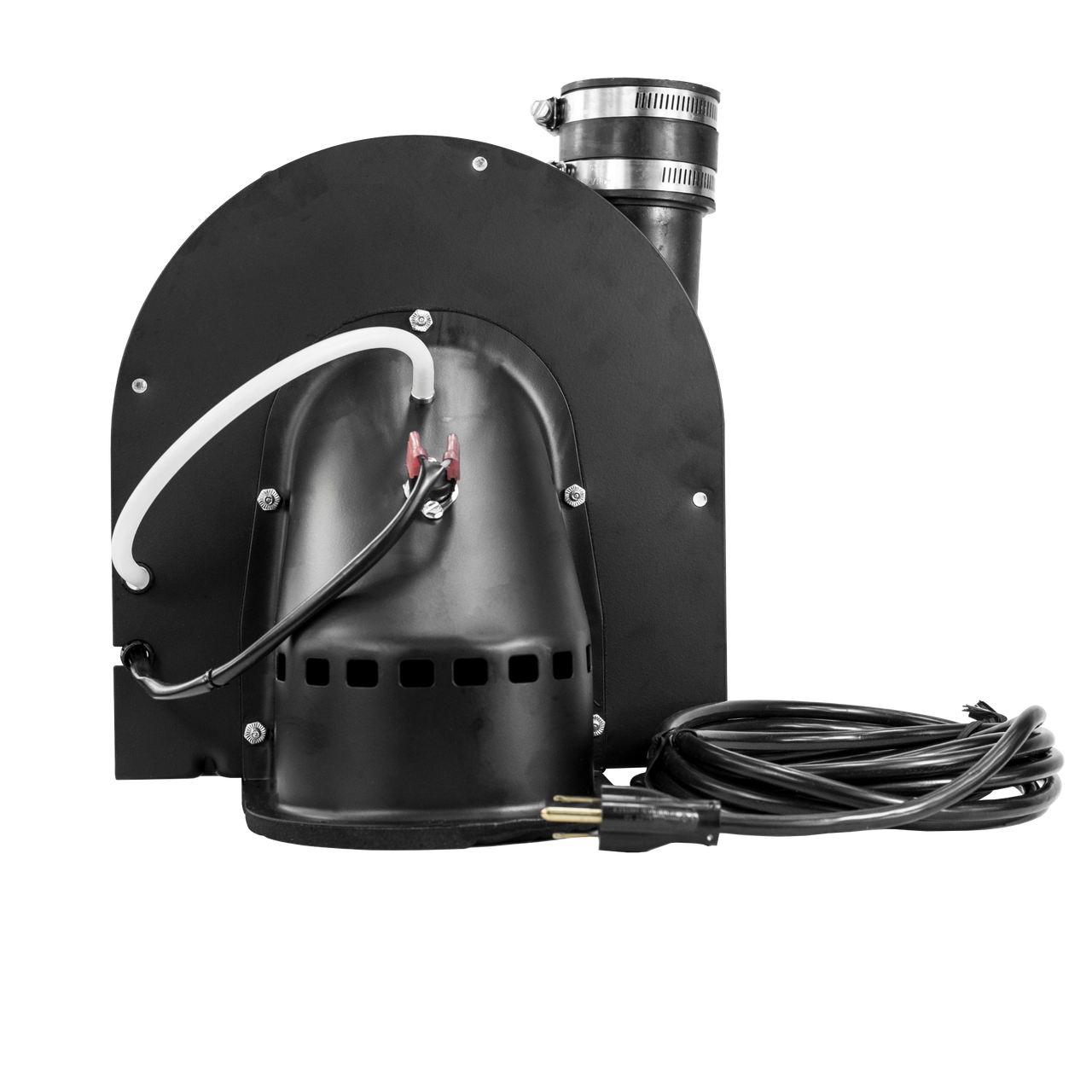

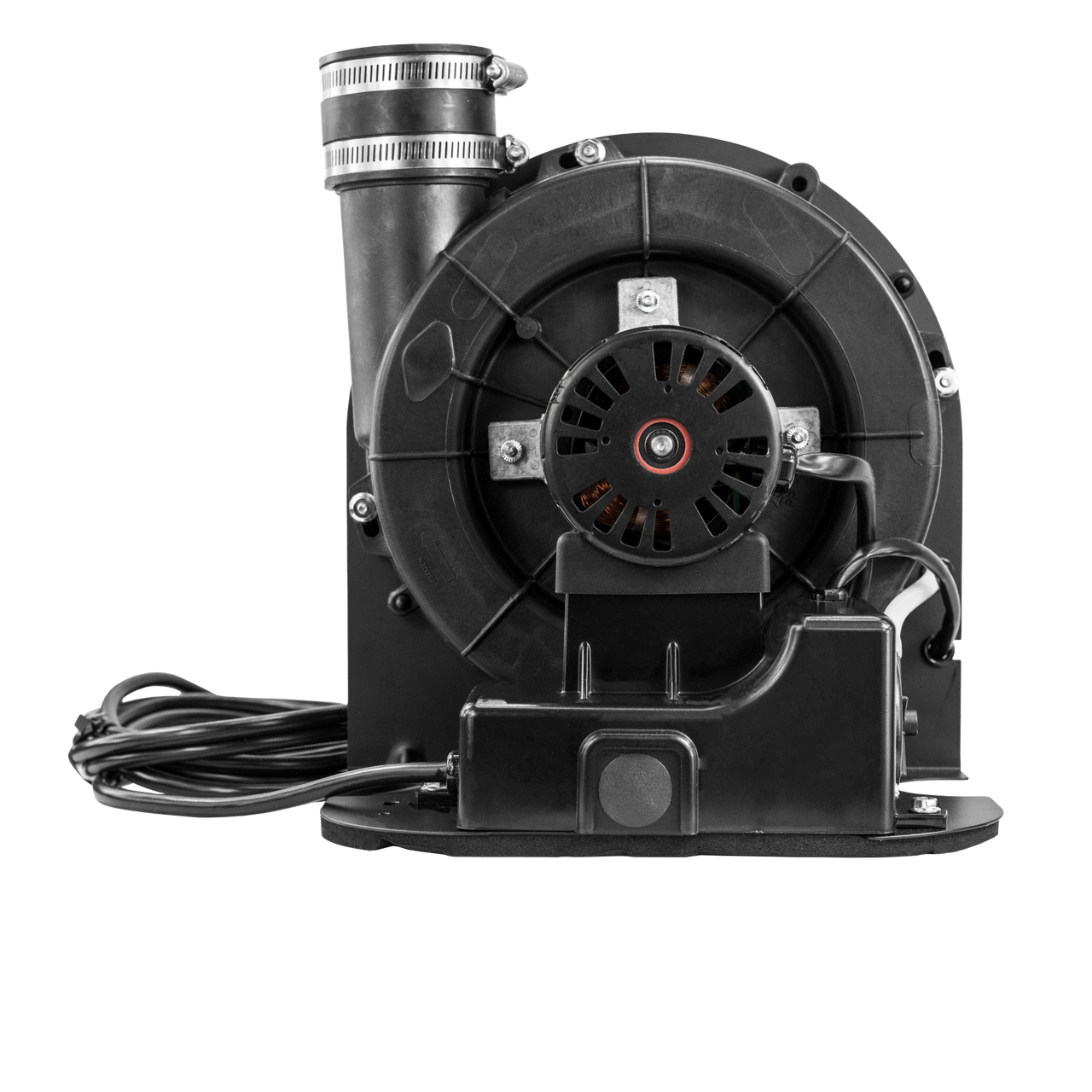

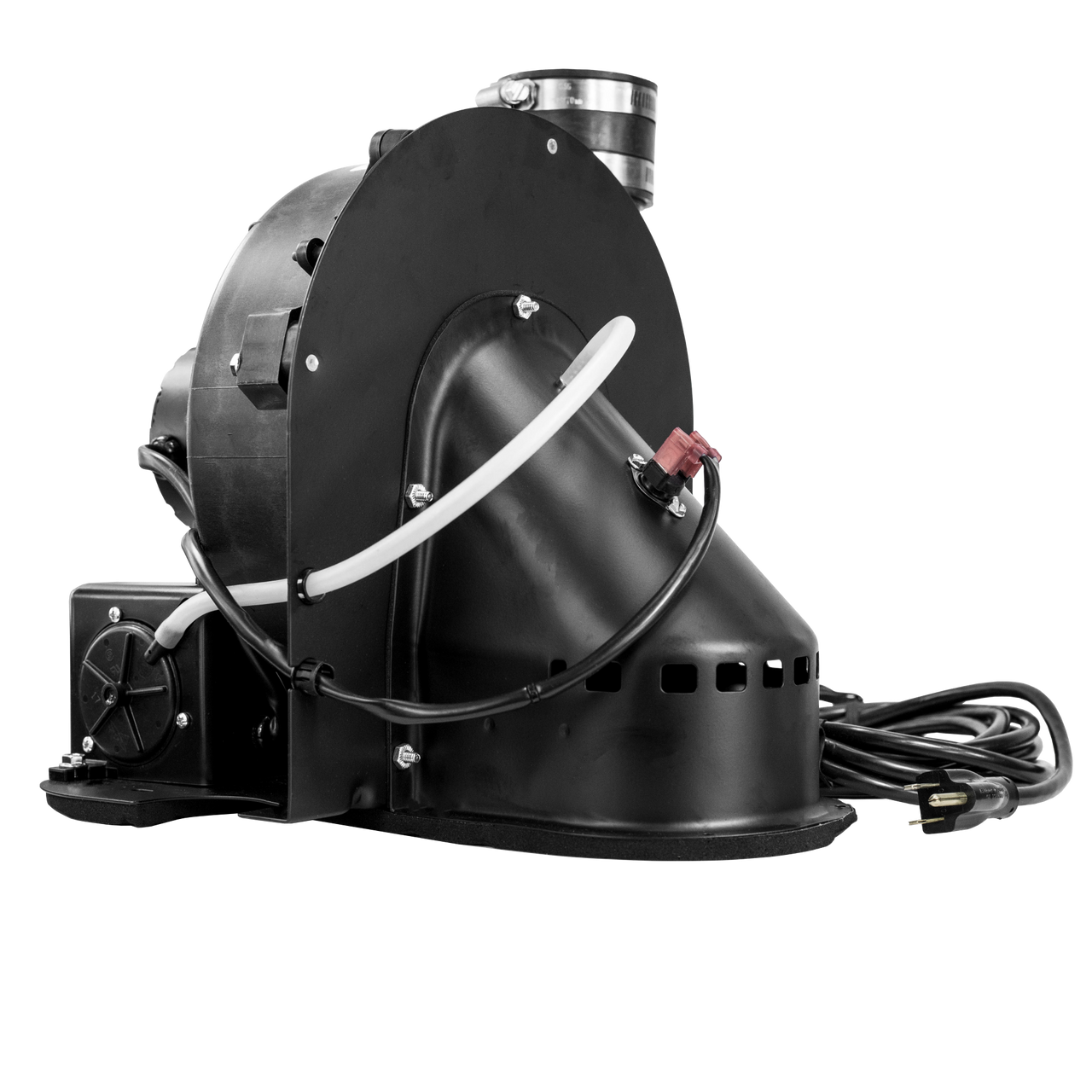

FASCO A996A OEM Replacement Draft Inducer Blower

Product Description

The FASCO A996A is an OEM replacement draft inducer blower designed primarily for hot water heater exhaust applications. This blower operates using a three point three inch diameter shaded pole motor, which is equipped with ball bearings and includes thermal protection. It features a single-speed operation reaching three thousand RPM and is made for open air over enclosure settings. The device is fitted with socket terminals and a plug for easy installation.

• Designed for hot water heater exhaust applications.
• Features a shaded pole motor with reliable ball bearings.
• Includes thermal protection for enhanced safety.

Product Highlights

Utilizes a durable motor, ensuring efficient airflow for exhaust management.

Product Information

Standard Information

• Brand: FASCO
• MPN: A996A

Technical Specifications

• Motor Diameter: 3.3 inches
• Speed: 3000 RPM
• Input Voltage: 120 V
• Output Current: 2.1 A
• Number of Speeds: 1
• Enclosure: Open air over
• Rotation: CW Rotation (Opposite shaft end)
• Motor Type: Shaded pole
• Thermal Protection: Yes
• Frequency: 60 Hz
• Phase: 1
• Ambient Temperature: 40 °C
• Insulation Class: B
• Bearing Type: Ball
• Blower Outlet Shape: Round
• Motor Enclosure: Open fan cooled
• Blower Outlet Flange: No
• UL Listed: Yes
• CSA Certified: Yes
