Fasco A977 Draft Inducer Blower 120V 3.1 A (3000 RPM) 7021-12975

FASCO
Brand: FASCO
SKU: A977
Availability: In Stock

Ships same day if ordered by 12 pm
$388.88
$388.88
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

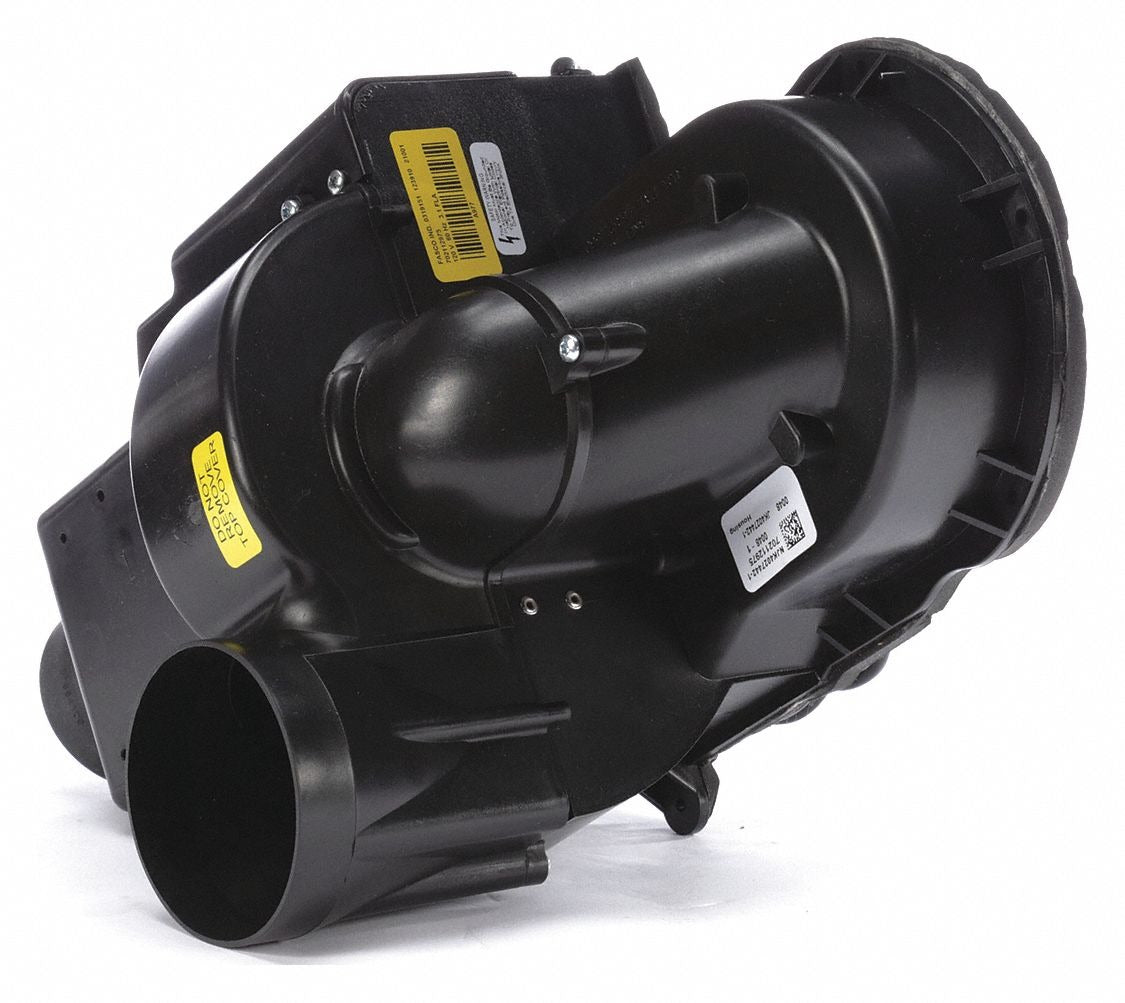

Fasco A977 is a draft inducer blower motor for HVAC and water-heater draft applications. The A977 employs a shaded pole, single-speed C-frame motor rated 120 V, 60 Hz, 3.1 A and 3000 RPM with ball bearings and thermal overload protection. The unit uses an open/air-over enclosure with Class B insulation rated to 40°C ambient and is supplied with wire leads and molded plug for replacement/service use.

  • Shaded pole, single-speed 3000 RPM motor; 120 V, 60 Hz; 3.1 A full-load current
  • Thermally protected with ball bearings; open/air-over enclosure and Class B insulation (40°C ambient)
  • Round outlet design with 120 inch leads and molded plug; OEM replacement for compatible water heaters and furnaces

Product Highlights

OEM replacement draft inducer blower, 120 V, 3.1 A, 3000 RPM, thermally protected

Product Information

Standard Information

  • Brand: FASCO
  • Manufacturer Part Number: A977
  • Country of Origin: Mexico
Technical Specifications
Brand
Fasco
Manufacturer Part Number
A977
Model
7021-12975
Product Name
Draft Inducer Blower
Motor Type
Shaded pole
Input Voltage
120 V
Frequency
60 Hz
Phase
1
Speeds
1
Rated RPM
3000 RPM
Full Load Amps
3.1 A
Motor Horsepower
1/12 HP
Bearing Type
Ball
Thermal Protection
Thermally protected
Enclosure Type
Open / Air over (Open/Drip Proof)
Insulation Class
Class B
Ambient Operating Temperature
40 °C
Outlet Shape
Round
Outlet Flange
No
Leads
120 inch leads with molded plug
Rotation Direction
Counterclockwise (CCW)
Certifications
UL, CSA
Weight
9 lbs
Packaged Dimensions
13.25 x 15.00 x 13.00 in (L x W x H)
Overall Dimensions
14.75 x 10.00 x 8.25 in (D x W x H)
Wheel Type
Forward-curved steel
Wheel Diameter
5-1/8 in

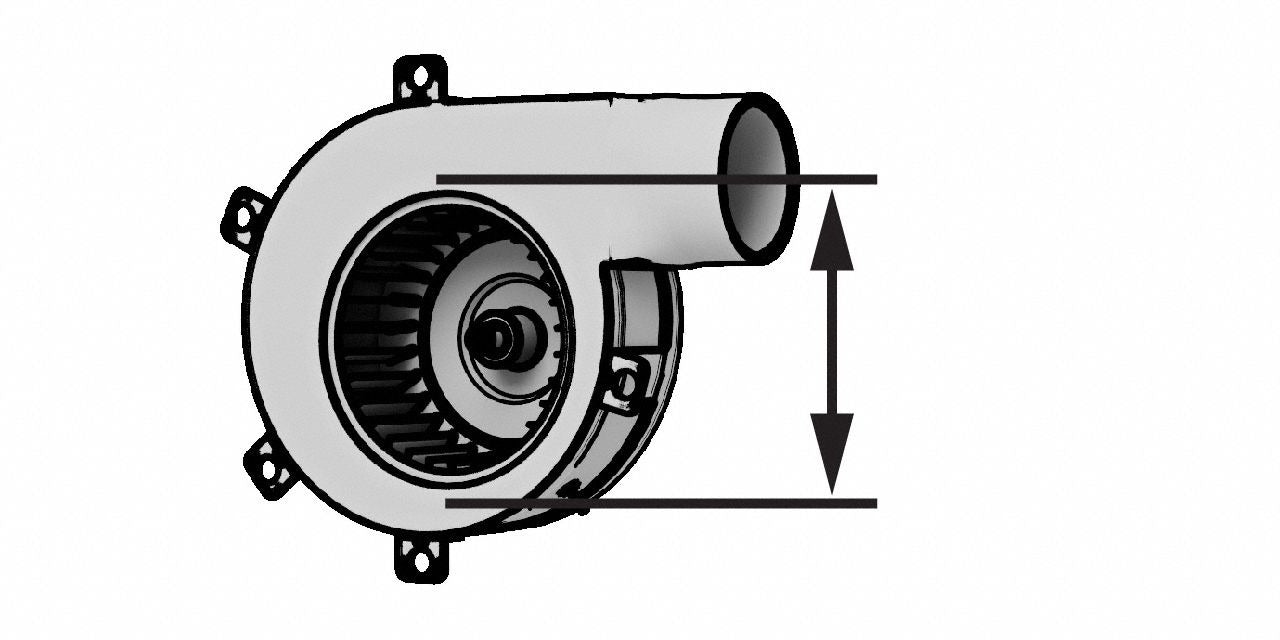

Inlet Diameter
8-5/8 in

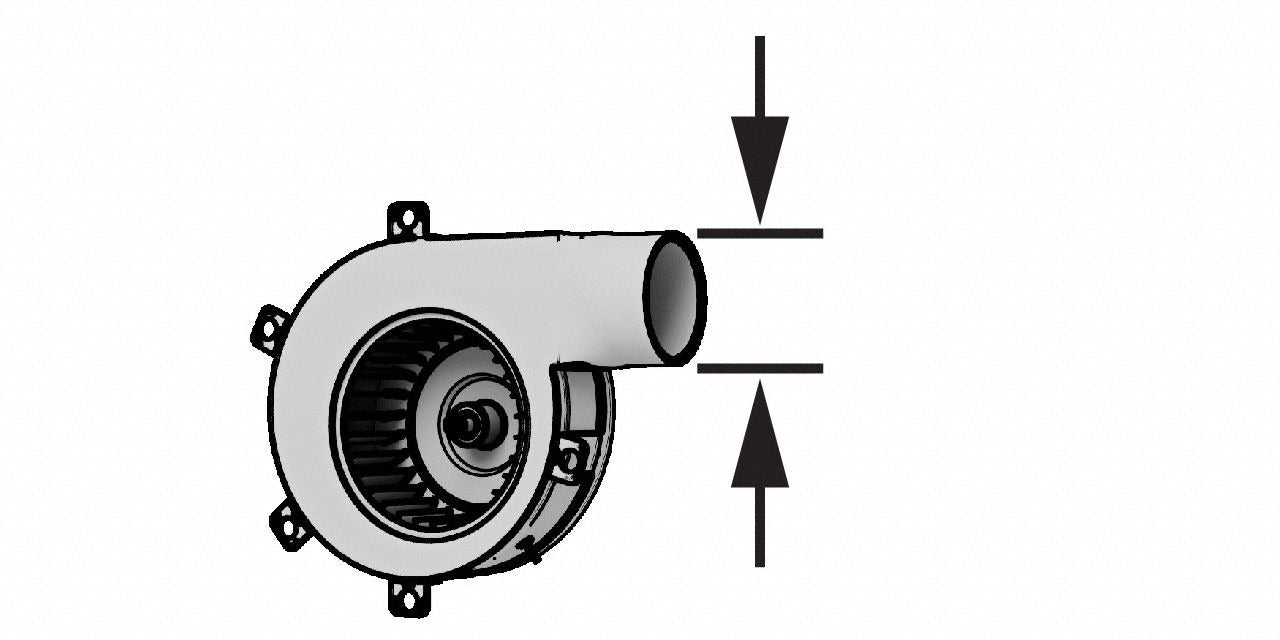

Outlet Diameter
2-3/8 in
Airflow @ 0.000 in SP
105 cfm
Package Quantity
1
Includes
Parts kit; 2 inch exhaust adapter kit; gasket; 120 inch leads with molded plug
Application
Draft inducer blower for water heaters and furnaces (HVAC)
Replacement For
Bradford White 119388-00; 265-45583-00
Country of Origin
Mexico
