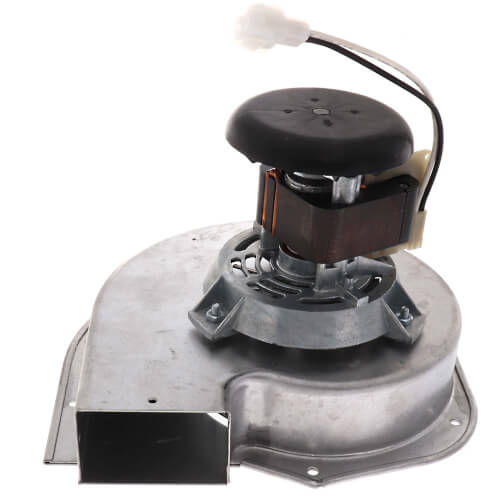

Fasco A362 Shaded Pole OEM Replacement Specific Purpose Blower with Ball Bearing 1/42HP 3000rpm 115V 60Hz 1.6 amps

Product Description

The Fasco A362 Shaded Pole OEM Replacement Specific Purpose Blower with Ball Bearing is designed to meet your HVAC needs. Featuring 1/42 horsepower and a speed of 3000 rpm, this blower operates at 115 volts and 60 Hz, drawing 1.6 amps.

• Shaded Pole Motor
• 3000 RPM Speed
• 1/42 HP Power

Product Highlights

This blower is ideal for various HVAC applications, providing reliable performance with its shaded pole motor and ball bearings. It replaces Trane models 7002-3273 and D341663P05.

Product Information

Standard Information

• RPM: 3000
• Voltage: 115V
• Amperage: 1.6

Technical Specifications

• Brand: Fasco
• MPN: A362
• Horse Power: 1/42
• Speeds: 1
• Phase: 1
• Hertz: 60 Hz
• Bearings: Ball
• Rotation: Clockwise
• Approvals: CSA, UL
• Enclosure Type: Open
• Insulation Class: B
• Overload Protection: Thermally
• Max Ambient Temp: 104 degrees F
• Outlet Shape: Rectangular
• Inlet Diameter: 5 inches
• Outlet Dimensions: 2 3/4 inches x 1 3/4 inches
• Airflow: 92 cfm
• Wheel Diameter: 4 3/4 inches
• Housing Material: Steel
• Shipping Dimensions: 12.5 inches x 11 inches x 10.45 inches
