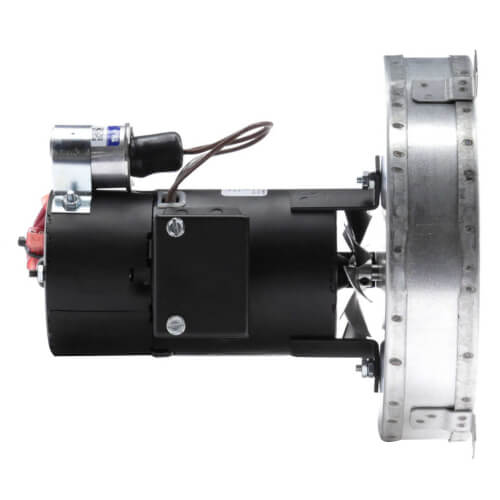

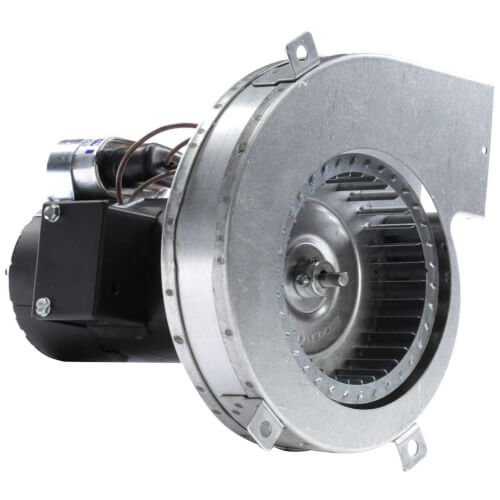

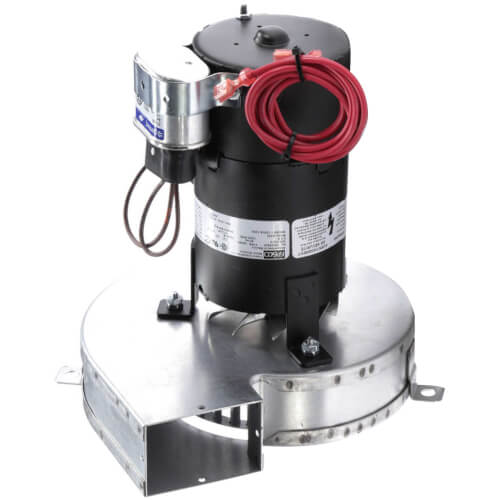

Fasco A324 1-Speed 1/25 HP 3200 RPM Draft Inducer Blower Motor 230V

Product Description

The Fasco A324 is a 1-speed draft inducer blower motor with a horsepower rating of 1/25 and operates at 230 volts. It features a speed of 3200 RPM and a permanent split capacitor design. This motor is suitable for various HVAC applications, ensuring optimal airflow and efficiency in draft inducer systems.

• Replacement for Lennox models: 7062-1909, 28G6601, 7062-1794
• Rated at 0.5 amperes with a clockwise rotation
• Includes thermally protected overload safety

Product Highlights

This draft inducer motor is designed for reliable performance and energy efficiency.

Product Information

Standard Information

• Brand: Fasco
• Type: Draft Inducer Motor

Technical Specifications

• MPN: A324
• Voltage: 230V
• Horsepower: 1/25
• RPM: 3200
• Amperage: 0.5
• Speed: 1
• Phase: 1
• Bearings: Ball
• Rotation: CW
• Weight: 7 lbs
• Shipping Dimensions: 13.88 x 10.13 x 10 inches
• Approvals: CSA, UL
• Enclosure Type: Open
• Insulation Class: B
• Max Ambient Temp: 104°F
