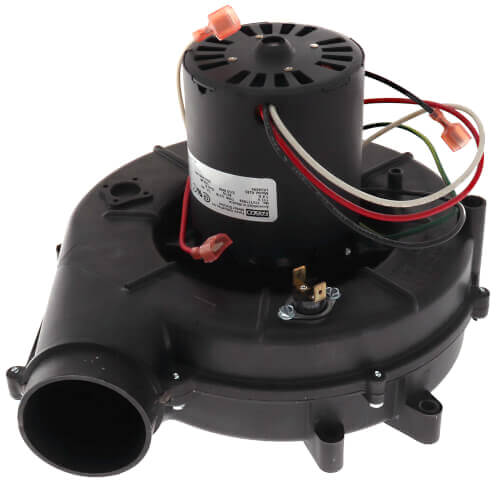

Fasco A285 2-Speed 3250 RPM 1/40 HP Goodman Draft Inducer Motor 115V

Product Description

The Fasco A285 is a 2-speed draft inducer motor designed for Goodman units. This motor operates at a speed of three thousand two hundred fifty RPM and has a horsepower of one-fortieth. It is suitable for HVAC applications and is powered by one hundred fifteen volts. It is important to verify compatibility with existing parts before installation.

• Direct replacement for Goodman 7021-9236, B2833002
• Two-speed functionality for increased control
• Built to rigorous safety standards including CSA and UL approvals

Product Highlights

This draft inducer motor effectively enhances airflow in HVAC systems.

Product Information

Standard Information

• Brand: Fasco
• MPN: A285

Technical Specifications

• RPM: 3250
• Horse Power: 1/40
• Voltage: 115V
• Amperage: 1.4
• Type: Shaded Pole
• Speeds: 2
• Phase: 1
• Rotation: CW
• Bearing Type: Sleeve
• Enclosure Type: Open
• Max Ambient Temperature: 104°F
• Insulation Class: B
• Shipping Dimensions: 11.5 inches depth, 11.4 inches width, 10.65 inches height
• Weight: 6.58 lbs
• Overload Protection: Thermally
• Approvals: CSA, UL
• Outlet Shape: Round
• Outlet Flange: No
