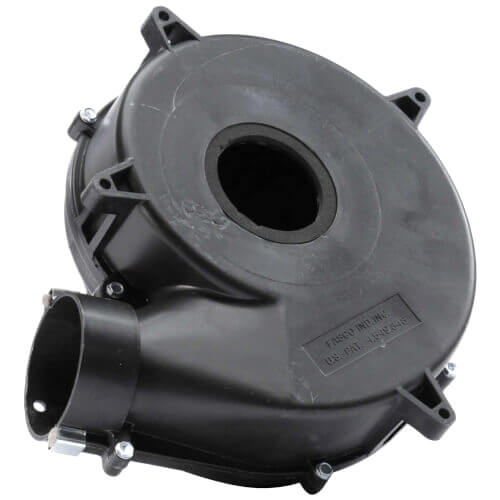

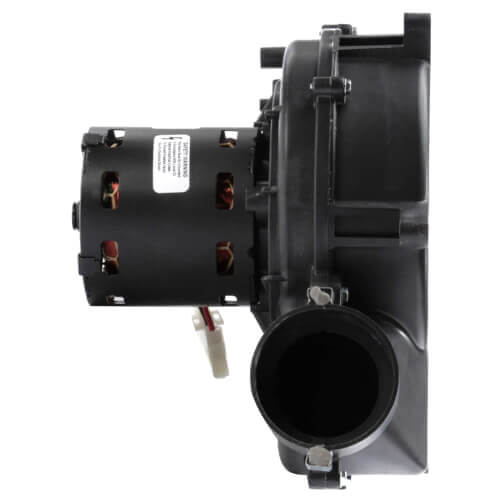

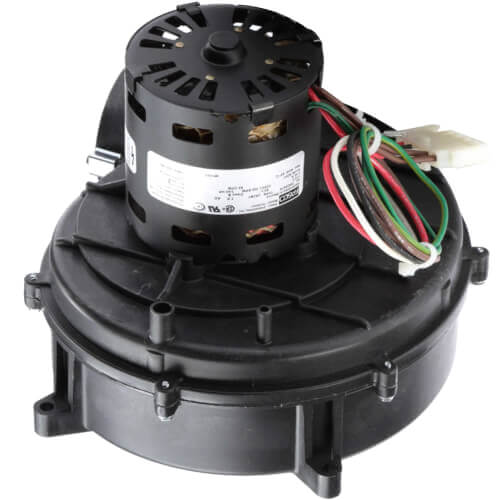

Fasco A247 2-Speed 3250/2800 RPM 1/40 HP Rheem Draft Inducer Motor (115V)

Product Description

The Fasco A247 is a 2-speed draft inducer motor designed for HVAC applications. This motor operates at speeds of 3250 RPM and 2800 RPM and has a power rating of 1/40 HP. It is suitable for use with Rheem systems and serves as a reliable replacement for original parts. Ensure compatibility with your existing system as this is an aftermarket replacement.

• 2-speed operation: Allows for better control and efficiency.
• Replaces Rheem part number 7062-5519S.
• Operates on 115 volts with permanent split capacitor type.

Product Highlights

The Fasco A247 motor is ideal for ensuring optimal airflow and system efficiency in HVAC setups.

Product Information

Standard Information

• Brand: Fasco
• Type: Draft Inducer Motor

Technical Specifications

• MPN: A247
• Horse Power: 1/40
• Voltage: 115V
• Amperage: 0.95
• Hertz: 60
• Speeds: 2
• Phase: 1
• RPM: 3250/2800
• Bearings: Sleeve
• Rotation: CW
• Enclosure Type: Open
• Outlet Shape: Round
• Max Ambient Temp (°F): 104°F
• Weight: 5.6 lbs
• Shipping Dimensions: 10.63 x 10.25 x 9.75 inches
• Approvals: CSA, UL
• Insulation Class: B
