Genteq Motors A246 Inducer Blower Motor 1/20 Horsepower REPLACEMENT Rheem 70-24206-01

Product Description

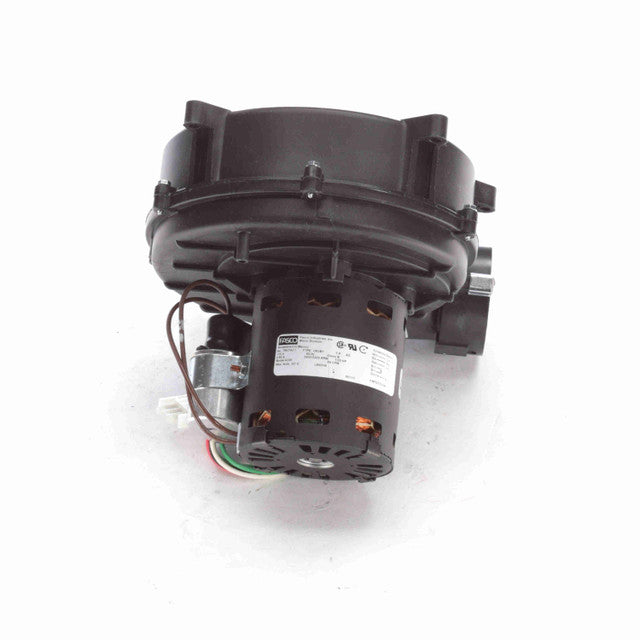

The GENTEQ MOTORS A246 inducer blower motor is a direct OEM replacement. This 1/20 horsepower motor operates at 115 volts and 3400/2400 RPM. It features a permanent split capacitor and is thermally protected with class B insulation, designed for open air over applications. The blower has a round outlet shape and does not include a flange.

• OEM Direct Replacement - Draft Inducer Blower
• 3.3" Diameter
• Thermally Protected

Product Highlights

Direct replacement inducer blower motor with permanent split capacitor, thermal protection, and ball bearing construction.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• Manufacturer Part Number: A246
• Country of Origin: Mexico

Technical Specifications

• MPN: A246
• Brand: GENTEQ MOTORS
• Voltage: 115 V
• Motor Type: Permanent Split Capacitor
• Thermal Protection: Thermally Protected
• Speed: 3400/2400 rpm
• Current: 0.85 A
• Number of Speeds: 2
• Frequency: 60 Hz
• Phase: 1
• Ambient Temperature: 40 °C
• UL: Yes
• Insulation Class: B
• CSA: Yes
• Blower Outlet Shape: Round
• Motor Enclosure: Open
• Blower Outlet Flange: No
• Bearing Type: Ball
