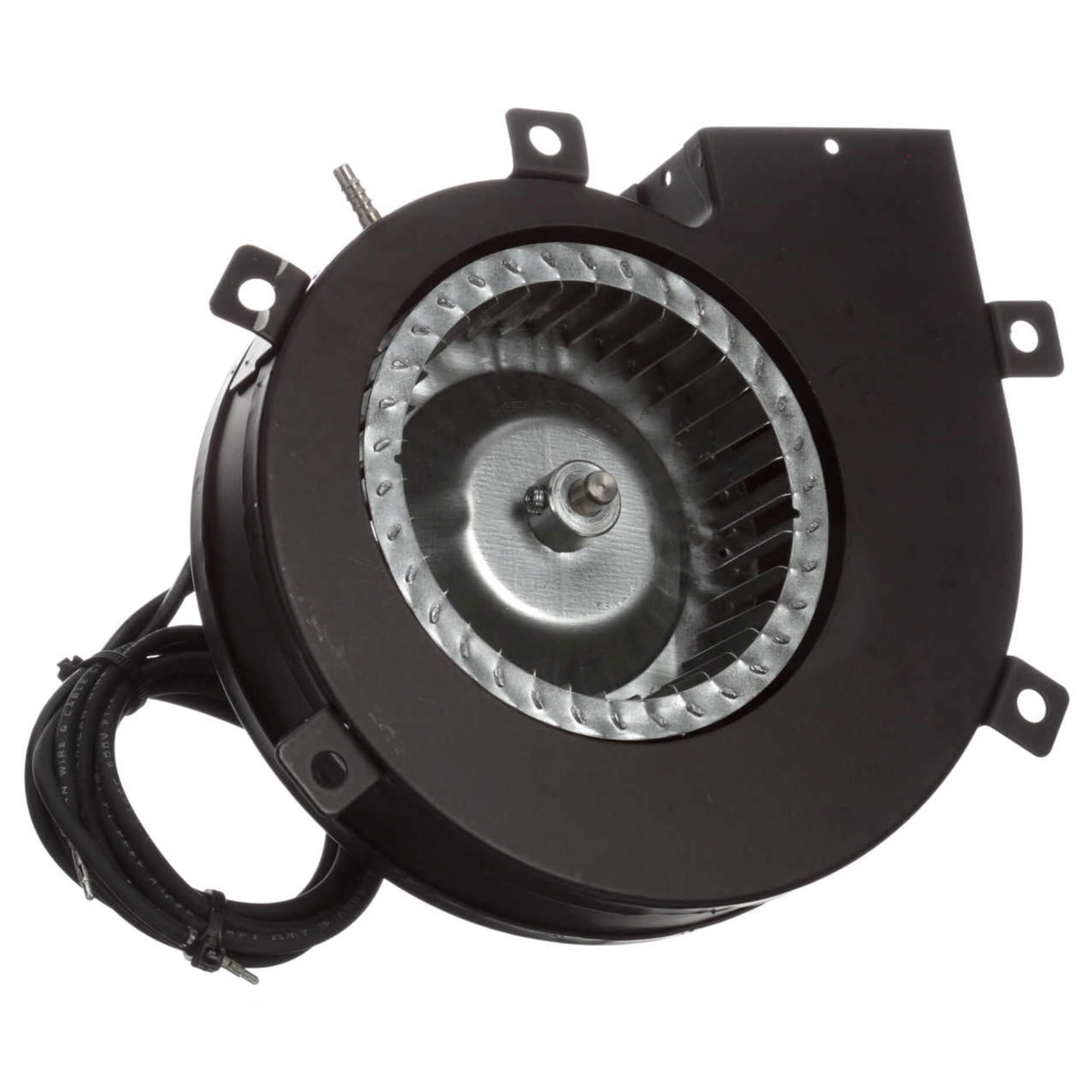

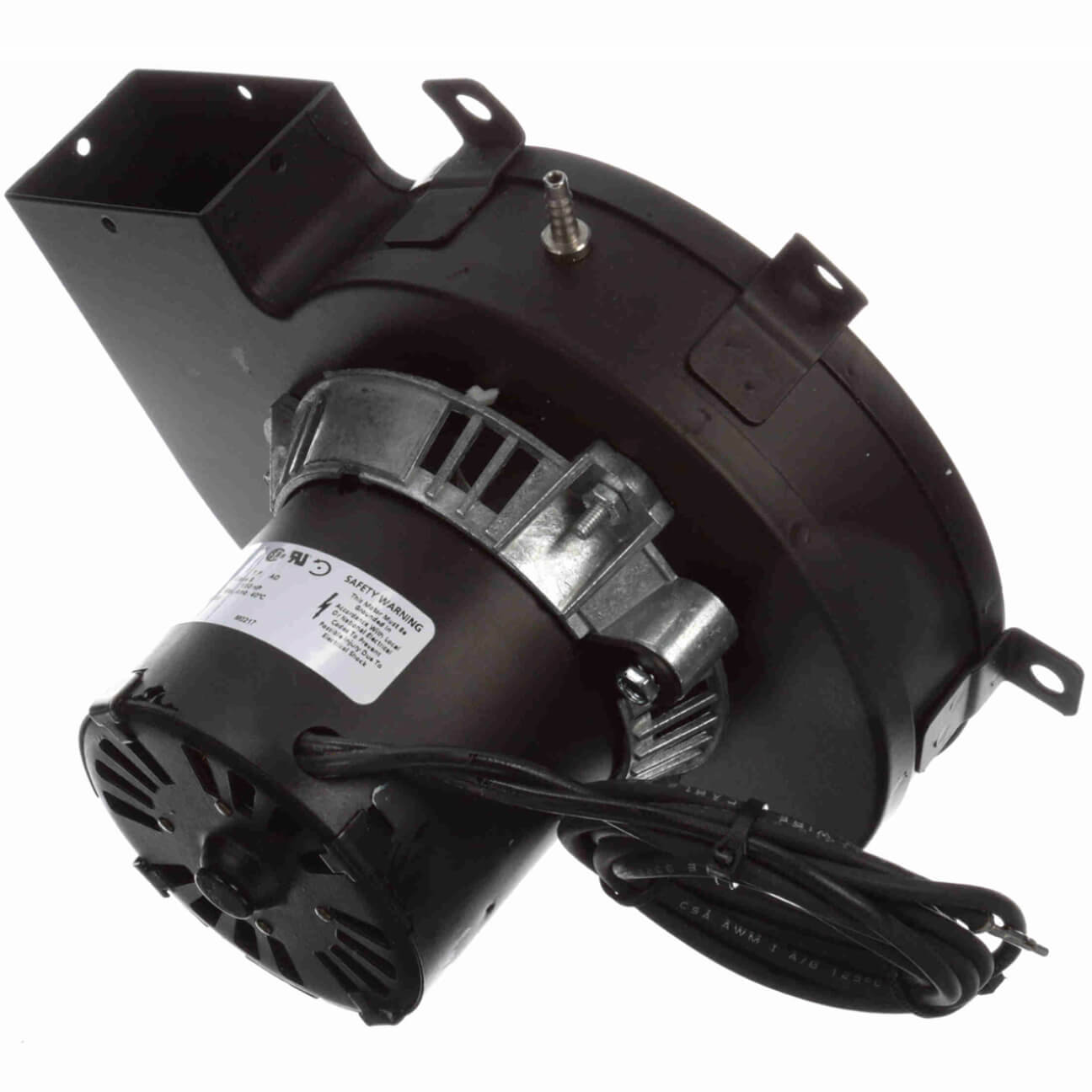

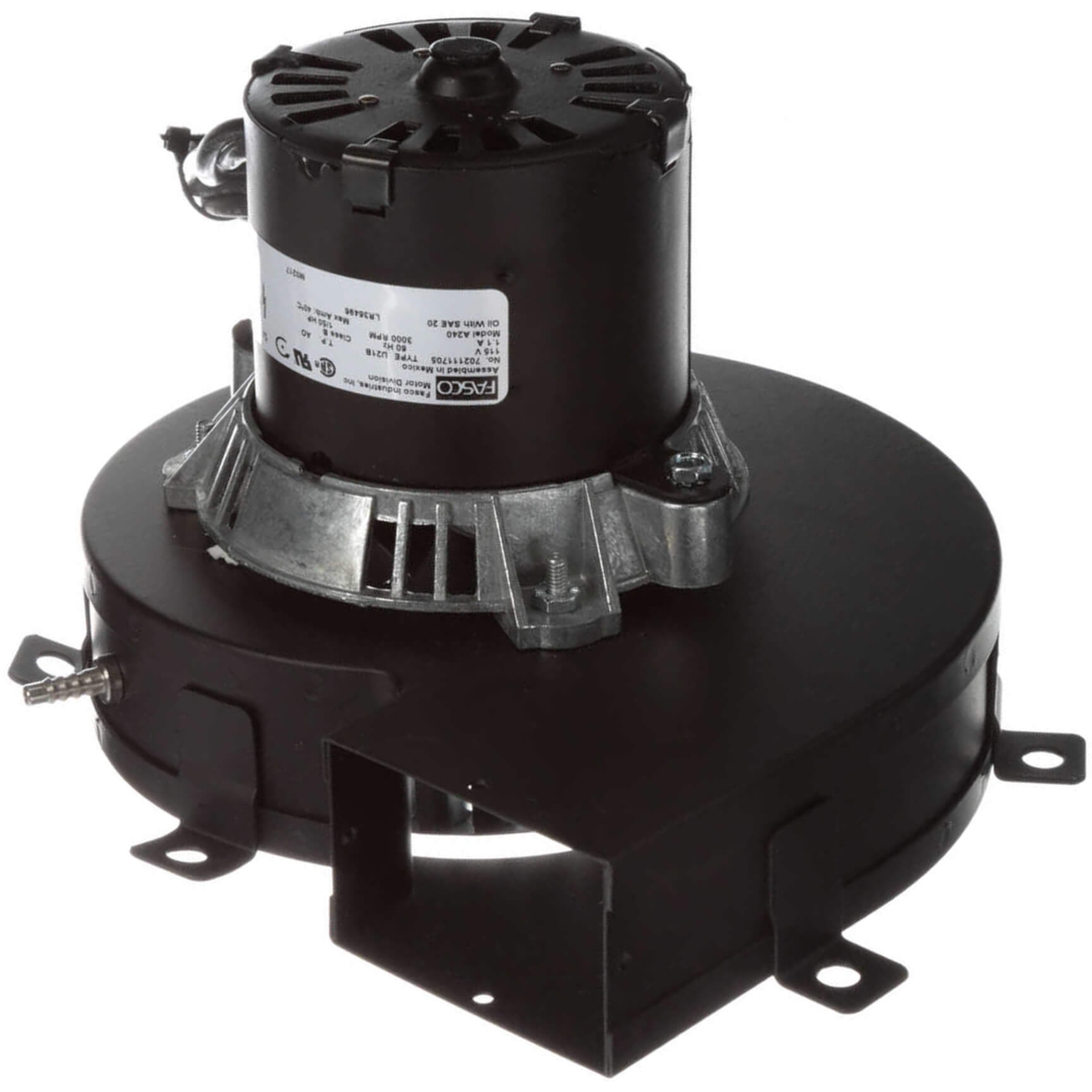

Fasco A240 1-Speed 3000 RPM 1/50 HP Rheem Draft Inducer Motor (115V)

Product Description

The Fasco A240 is a 1-speed, 3000 RPM draft inducer motor designed for HVAC applications. This motor operates at 115 volts and has a power rating of 1/50 horsepower. It serves as a direct replacement for the Rheem part number 7021-8183. Before installation, ensure compatibility with your existing equipment.

• 1-Speed operation with 3000 RPM
• Compatible with Rheem 7021-8183
• 115V voltage rating

Product Highlights

This draft inducer motor is an essential component for ensuring proper airflow in HVAC systems, enhancing efficiency and performance.

Product Information

Standard Information

• OEM Compatibility: Rheem
• Voltage: 115V

Technical Specifications

• Horse Power: 1/50
• Amperage: 1.1
• Type: Shaded Pole
• RPM: 3000
• Phase: 1
• Hertz: 60
• Rotation: CCW
• Insulation Class: B
• Max Ambient Temp (°F): 104°F
• Approvals: CSA, UL
• Weight: 5 lbs
• Shipping Dimensions: 11.38 in (L) x 8.25 in (W) x 6.25 in (H)
• Bearings: Sleeve
• Enclosure Type: Open
• Outlet Shape: Rectangle
• Outlet Flange: No
• Overload Protection: Thermally
