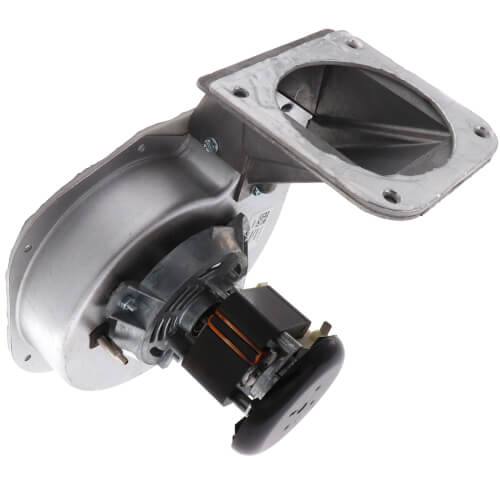

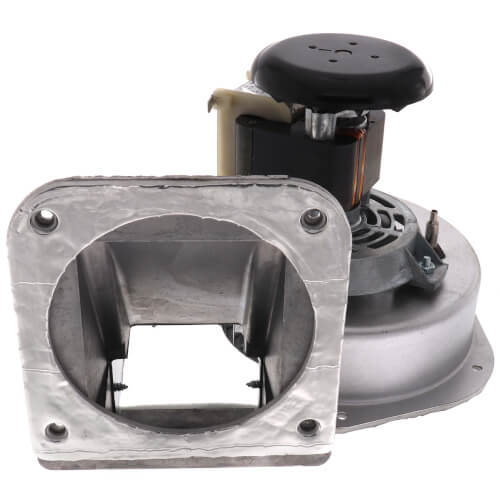

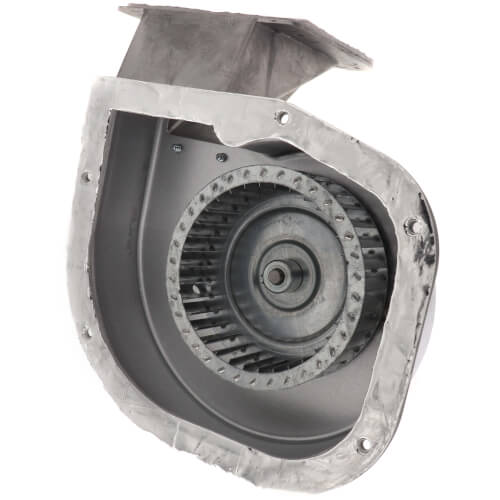

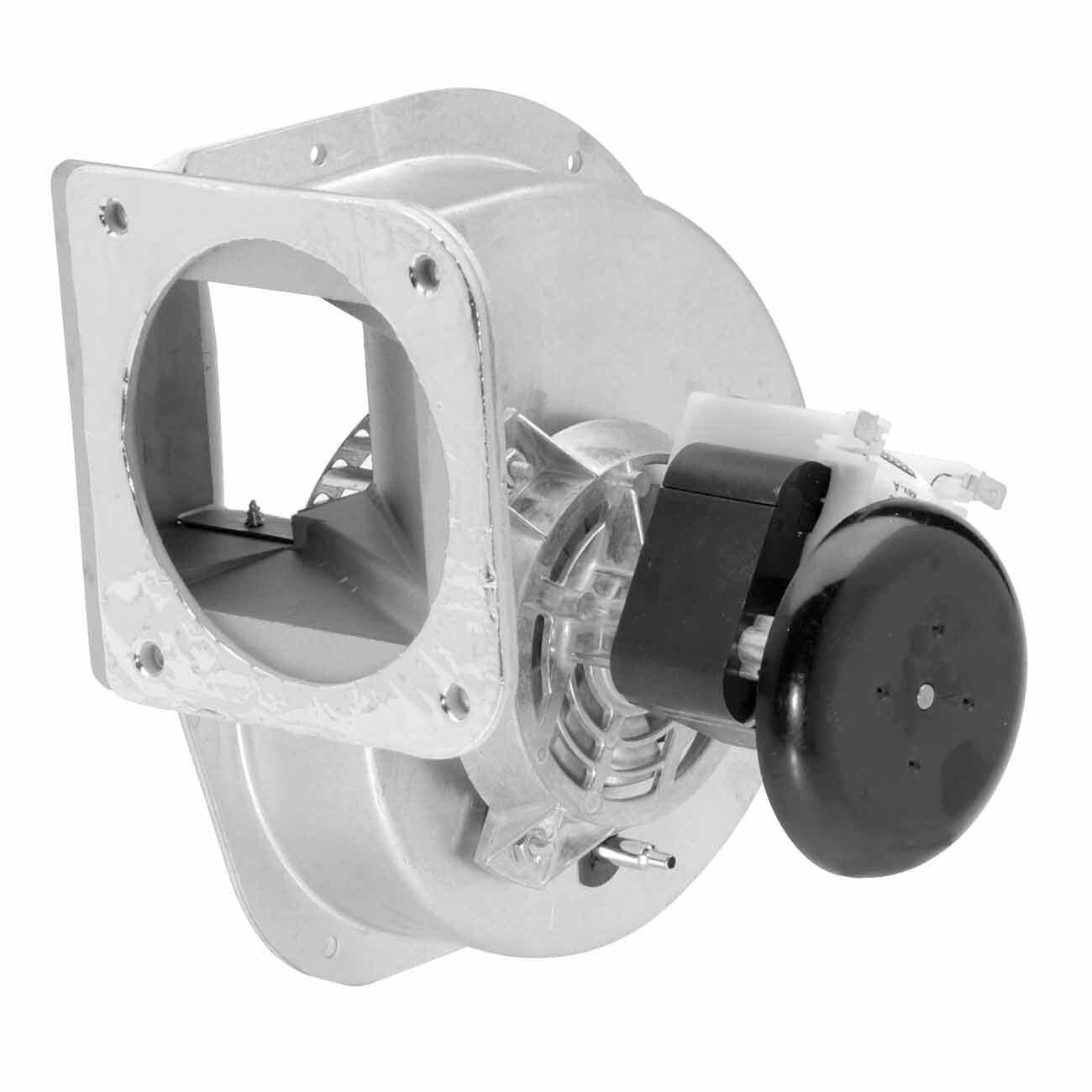

Fasco A229 Shaded Pole Draft Inducer Blower Motor 1/25 HP 3000 RPM 115V

Product Description

The Fasco A229 Shaded Pole Draft Inducer Blower Motor, identified by MPN A229, is designed for HVAC systems. It operates at 1/25 HP and delivers 3000 RPM with a voltage of 115V. This motor features ball bearings and provides reliable performance for furnaces and other applications.

• 1/25 HP
• 115 Volts
• 3000 RPM

Product Highlights

This blower motor is suitable for use in HVAC systems and furnaces requiring shaded pole induction motors. It is built with a durable steel housing and operates at a single speed.

Product Information

Standard Information

• Brand: Fasco
• MPN: A229

Technical Specifications

• Horse Power: 1/25 HP
• Speed: 3000 RPM
• Voltage: 115 Volts
• Amperage: 1.75 Amps
• Phase: 1
• Enclosure Type: Open
• Insulation Class: Class B
• Bearings: Ball
• Thermal Protection: Auto
• Wheel Diameter: 4.5 in
• Outlet Shape: Round
• Maximum Ambient Temperature: 104 degrees Fahrenheit
• Maximum Static Pressure: 1 7/8 in wc
• Approvals: CSA, UL
• Weight: 5.93 lbs
