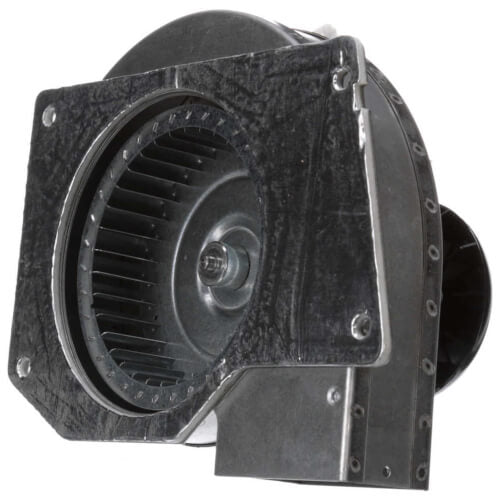

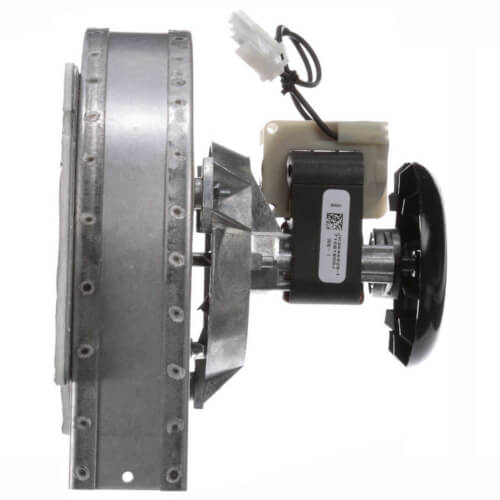

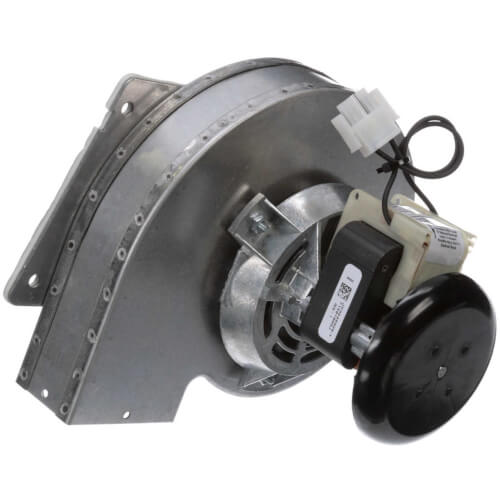

Fasco A226 1-Speed 3000 RPM 1/35 HP York Draft Inducer Motor (115V)

Product Description

The Fasco A226 is a 1-speed draft inducer motor designed to operate at 3000 RPM with a horsepower rating of 1/35. It is intended for use with York systems and operates at 115 volts.

• Replaces York part numbers 7058-0266 and 7058-0266S
• Operating speed of 3000 RPM
• Efficient 1/35 HP power rating

Product Highlights

Designed for HVAC applications, this motor enhances the performance of heating systems.

Product Information

Standard Information

• Brand: Fasco
• Part Type: Draft Inducer Motor

Technical Specifications

• RPM: 3000
• Horse Power: 1/35
• Voltage: 115V
• Hertz: 60
• Phase: 1
• Speeds: 1
• Amperage: 1.43
• Bearings: Ball
• Rotation: CW
• Weight: 11.3 lbs
• Approvals: CSA, UL
• Outlet Shape: Rectangle
• Outlet Flange: No
• Enclosure Type: Open
• Insulation Class: B
• Max Ambient Temp (°F): 104°F
• Overload Protection: Thermally
• Shipping Dimensions: 11.38 x 8.25 x 6.63 inches
