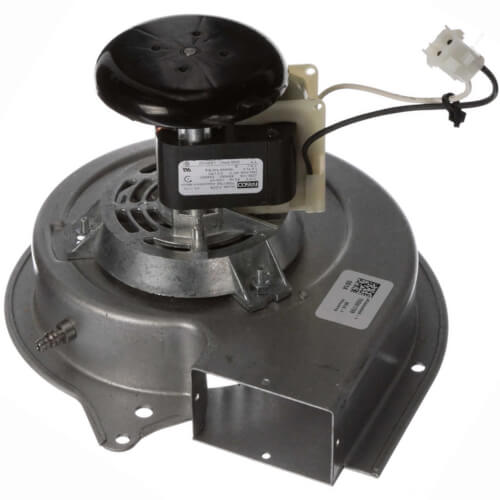

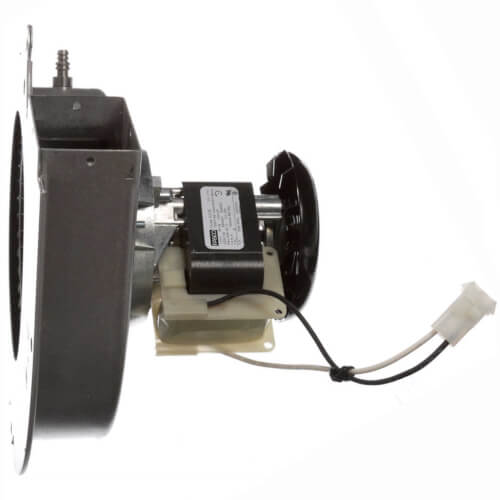

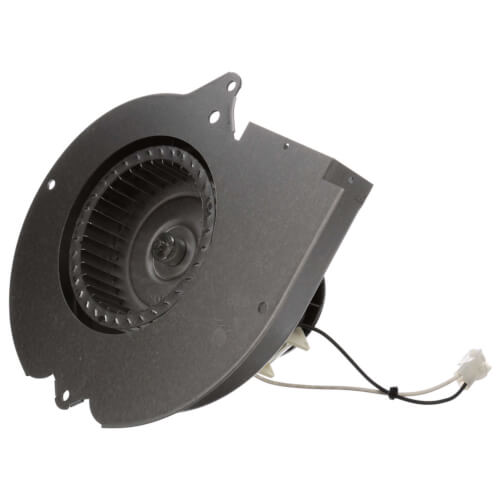

Fasco A208 1-Speed 3000 RPM 1/28 HP Lennox Draft Inducer Motor (115V)

Product Description

The Fasco A208 is a 1-Speed 3000 RPM draft inducer motor designed for use in HVAC systems. This aftermarket part serves as a direct replacement for the Lennox 7058-0322. It operates on 115 volts and delivers a power rating of 1/28 horsepower.

• Standard 1-Speed operation
• Rated at 3000 RPM
• Compatible with Lennox systems

Product Highlights

This motor is ideal for enhancing the efficiency of heat exchangers and improving air flow.

Product Information

Standard Information

• Brand: Fasco
• OEM: Lennox

Technical Specifications

• MPN: A208
• Volts: 115V
• Horse Power: 1/28
• RPM: 3000
• Hertz: 60
• Amperage: 1.31
• Phase: 1
• Speeds: 1
• Bearings: Ball
• Rotation: CCW
• Weight: 6 lbs
• Enclosure Type: Open
• Outlet Shape: Rectangle
• Approvals: CSA, UL
• Insulation Class: B
• Max Ambient Temp (°F): 104°F
• Overload Protection: Thermally
• Shipping Dimensions: 10.63 inches (Depth) x 10.38 inches (Width) x 8.88 inches (Height)
