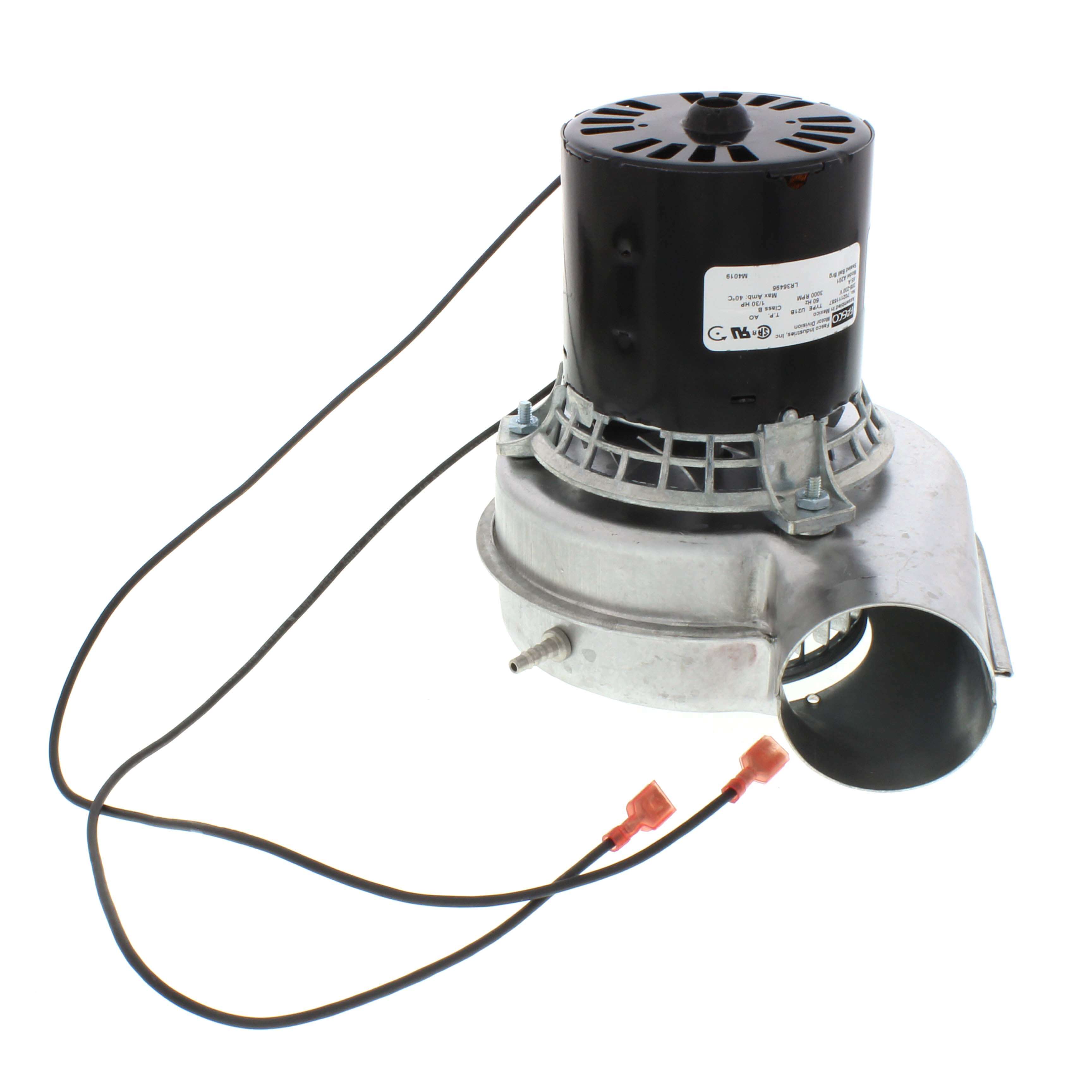

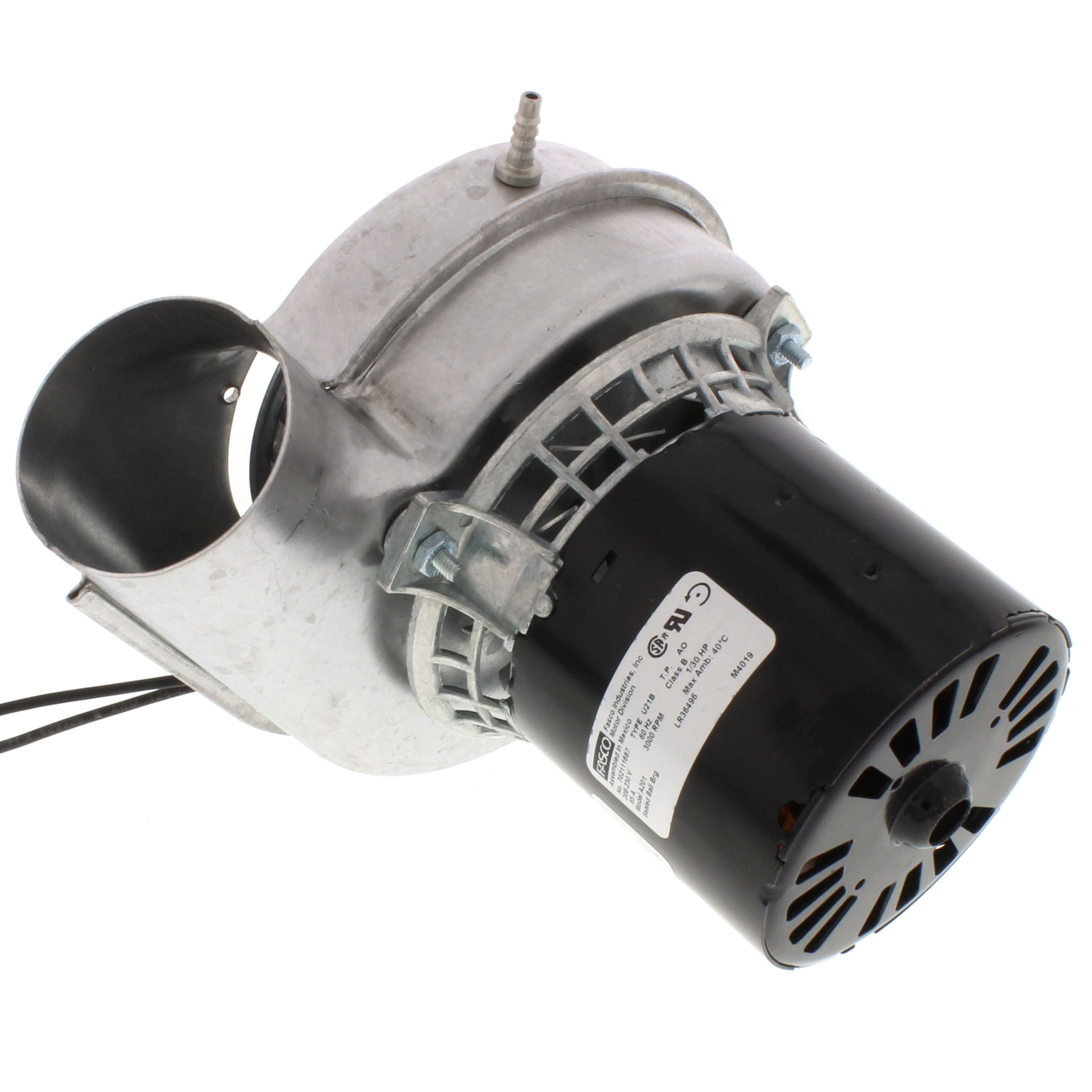

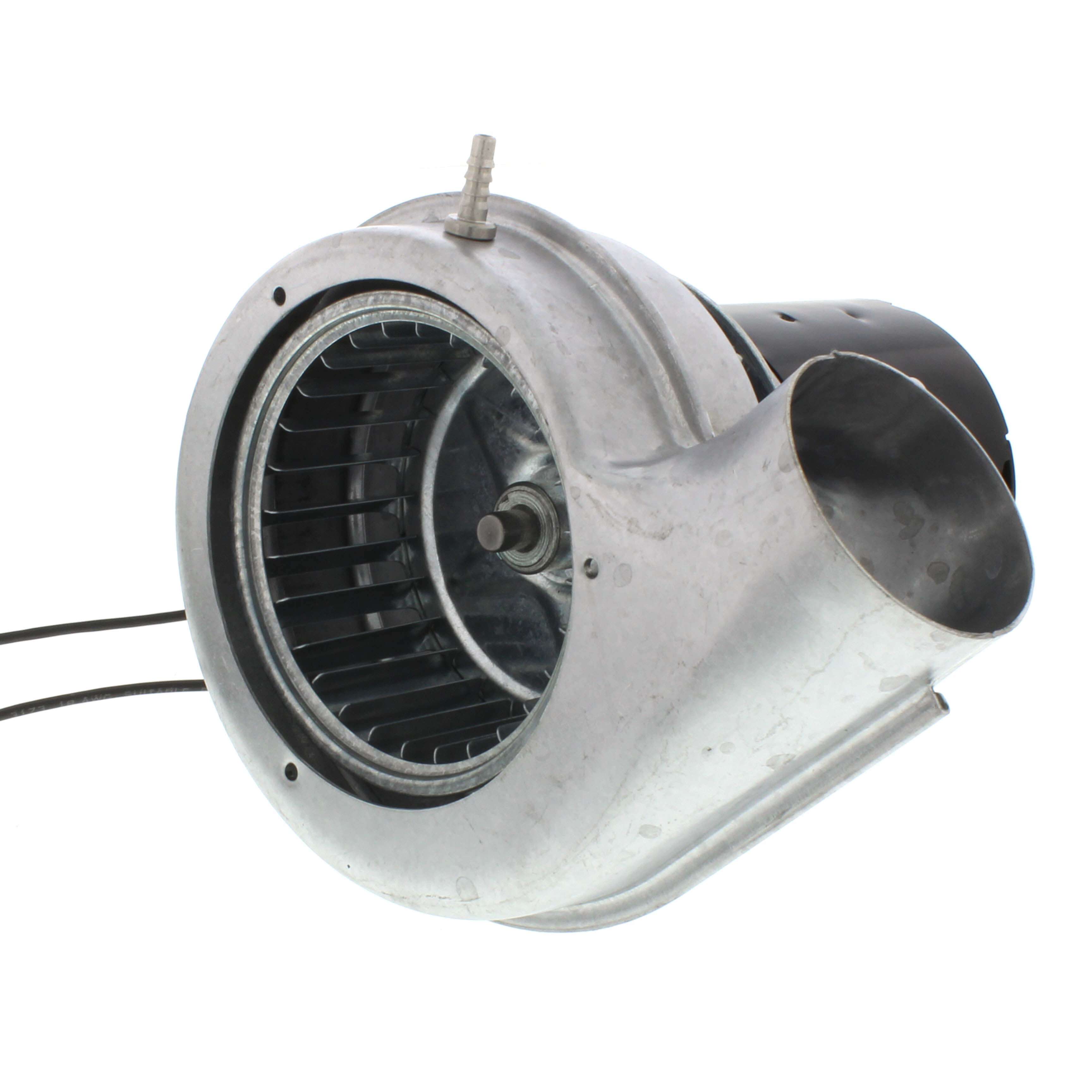

Fasco A201 1-Speed 3000 RPM 1/30 HP Lennox Draft Inducer Motor (208/230V)

Product Description

The Fasco A201 is a 1-speed draft inducer motor that operates at 3000 RPM, designed for Lennox systems. It is an aftermarket part suitable for various HVAC applications. This motor is compatible with Lennox part numbers 7021-10055 and 7021-10743.

• Fast operation at 3000 RPM
• 1/30 HP for efficient performance
• 208/230V for versatile installation

Product Highlights

This draft inducer motor efficiently enhances airflow in heating systems. It features a shaded pole design and ball bearings for reliable operation.

Product Information

Standard Information

• Brand: Fasco
• OEM Compatibility: Lennox

Technical Specifications

• RPM: 3000
• Type: Shaded Pole
• Hertz: 60
• Phase: 1
• Speeds: 1
• Voltage: 208/230V
• Amperage: 0.65
• Bearings: Ball
• Rotation: CCW
• Weight: 4.01 lbs
• Approvals: CSA, UL
• Horse Power: 1/30
• Outlet Shape: Round
• Outlet Flange: No
• Enclosure Type: Open
• Insulation Class: B
• Max Ambient Temp (°F): 104°F
• Overload Protection: Thermally
• Shipping Depth: 8.15 inches
• Shipping Width: 7.25 inches
• Shipping Height: 6.5 inches
