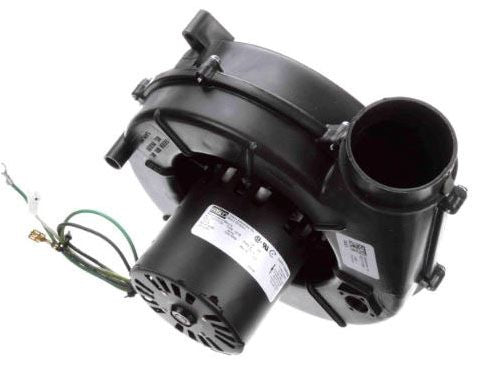

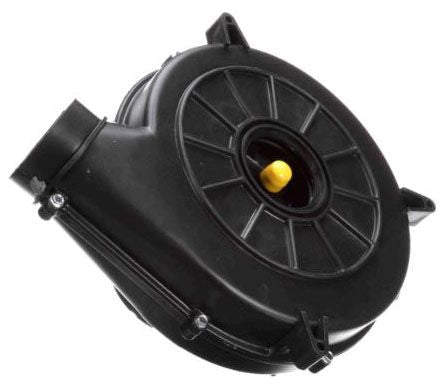

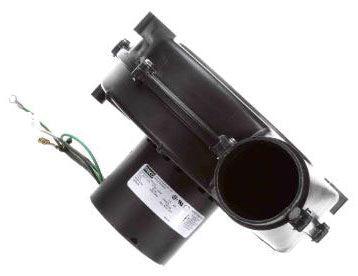

Fasco A196 Draft Inducer Blower Motor 1/25 HP 3200 RPM 115V

Product Description

The Fasco A196 is a specific purpose draft inducer blower motor designed for HVAC applications. This model operates at one twenty-five horsepower and features a speed rating of three thousand two hundred RPM with a voltage of one hundred fifteen volts.

• Rated at 1/25 HP
• Speed of 3200 RPM
• Compatible with various gas furnaces and heaters

Product Highlights

This blower motor is suitable for use in gas furnaces, water heaters, space heaters, and food service equipment.

Product Information

Standard Information

• Brand: Fasco
• MPN: A196

Technical Specifications

• Power Rating: 1/25 HP
• Voltage: 115 Volts
• Current: 1.35 Amps
• Speed: 3200 RPM
• Phase: 1-Phase
• Type: Shaded Pole
• Insulation Class: B
• Ambient Temperature Rating: 40 Degrees C
• Diameter: 3.3 Inches
• Enclosure: Open Air Over
• Blower Outlet Shape: Round
• Rotational Direction: Clockwise
• Includes Leads: One six-inch lead with pin housing terminal and one ten-inch lead with spade terminal
• Approval: UL, CSA
