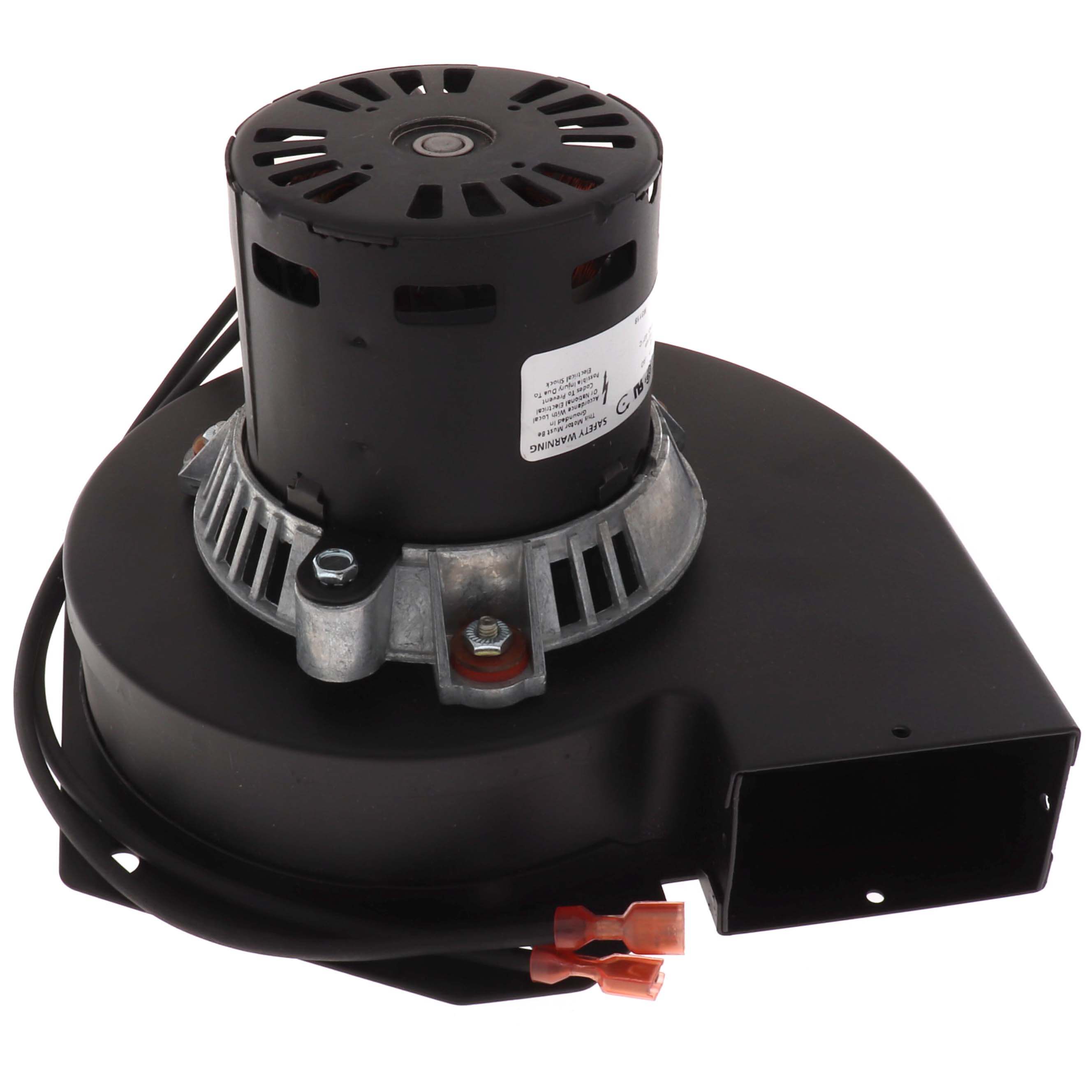

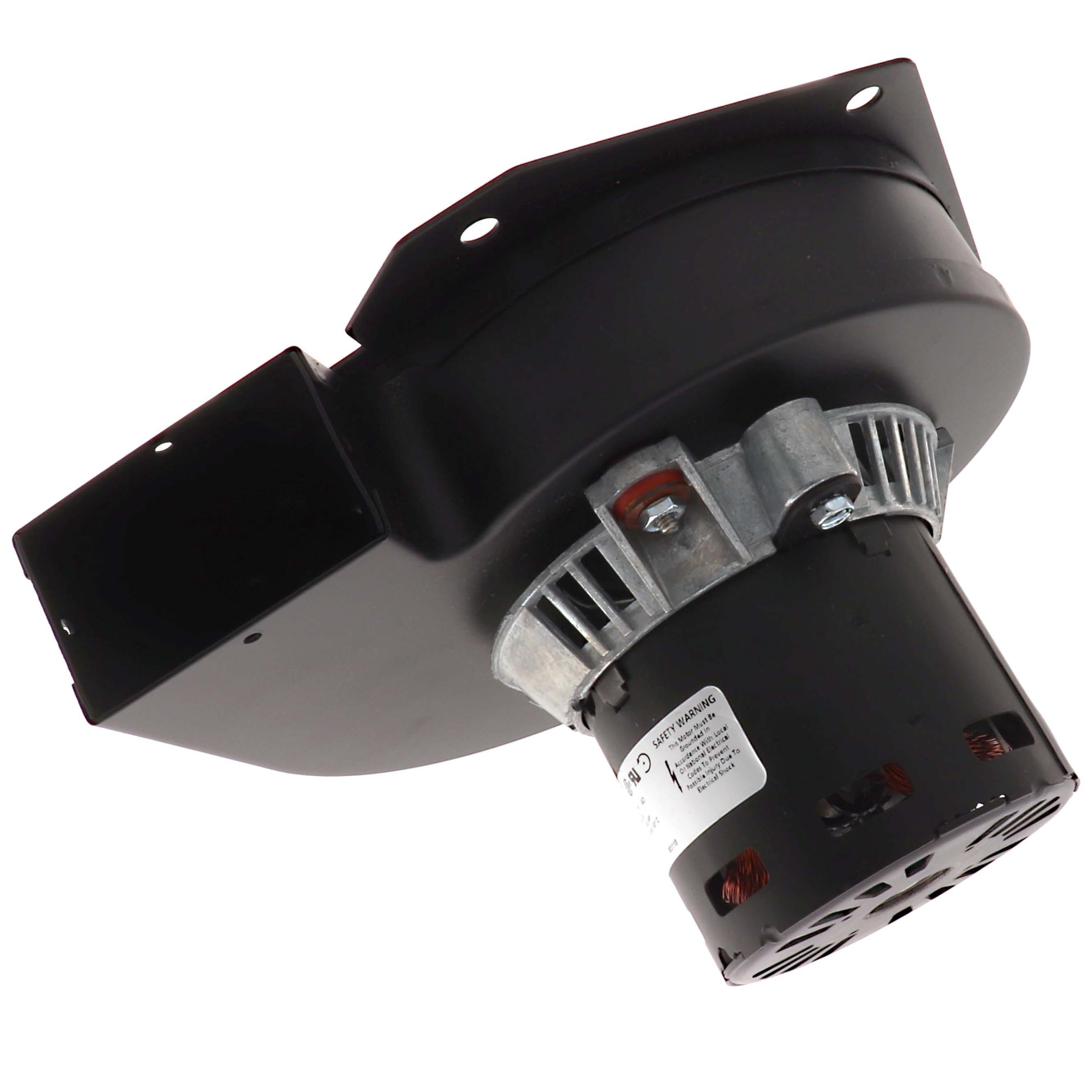

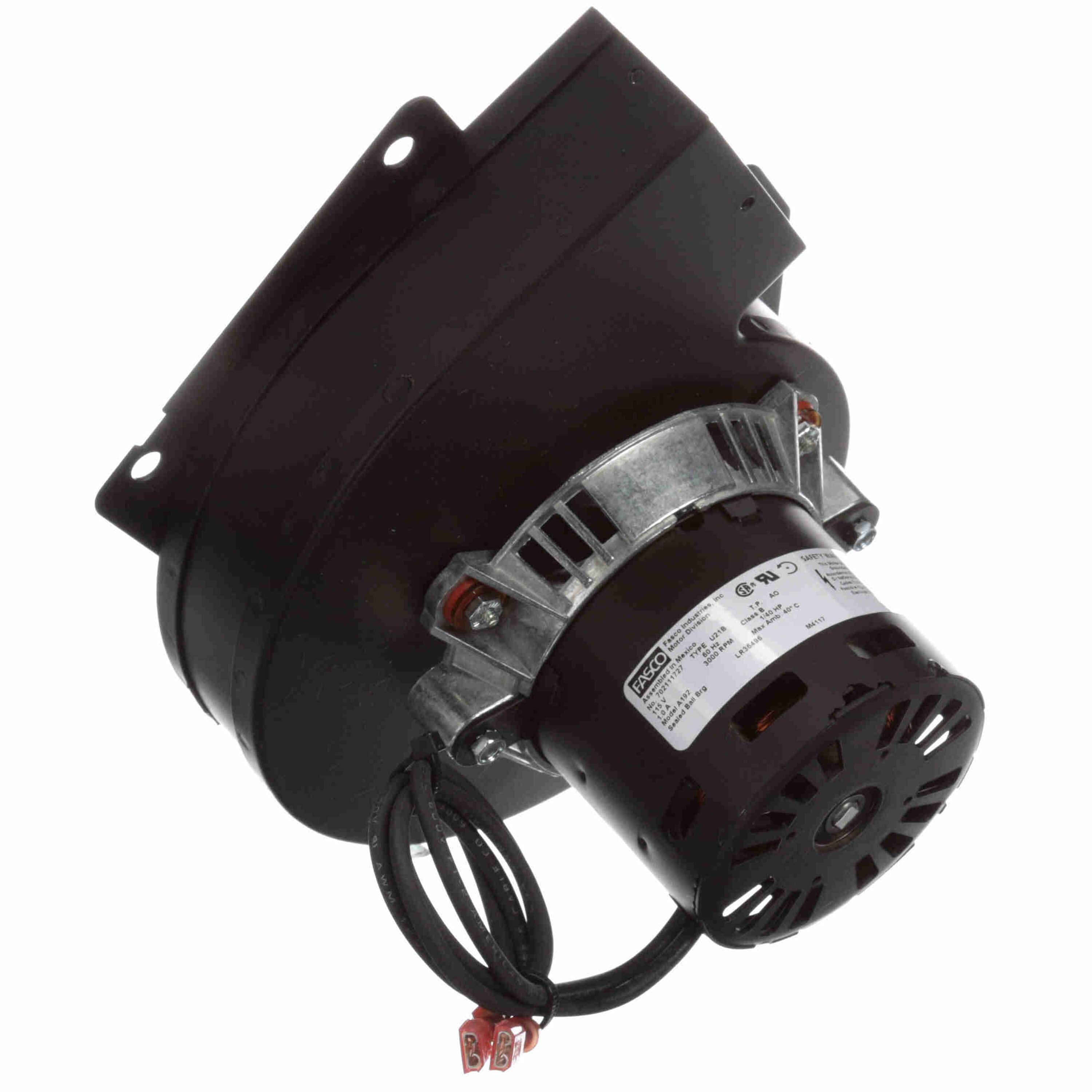

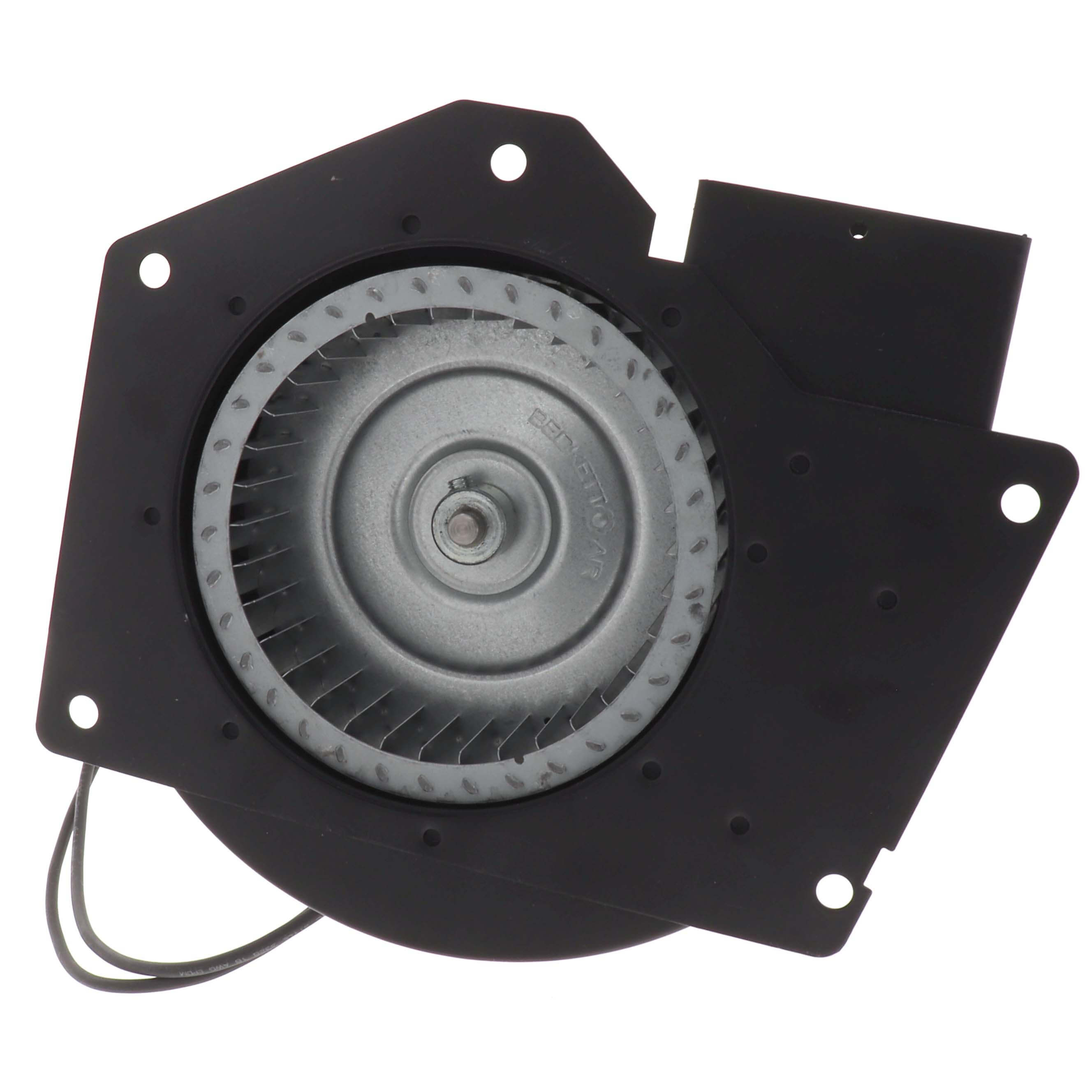

Fasco A192 1-Speed 3000 RPM 1/40 HP Draft Inducer Motor (115V)

Product Description

The Fasco A192 is a 1-speed draft inducer motor designed for reliable operation in HVAC systems. This motor operates at three thousand RPM and has a power rating of one over forty horsepower. It operates on one hundred fifteen volts and draws one amp. The Fasco A192 is a suitable aftermarket replacement part, but confirm compatibility with your original manufacturer part number.

• Motor Type: Shaded Pole
• Bearings: Ball
• Overload Protection: Thermally

Product Highlights

This motor features an open enclosure and is effective for a range of static pressures. It is designed for easy installation and optimal performance in cooling and heating systems.

Product Information

Standard Information

• Voltage: 115V
• Phase: 1

Technical Specifications

• Horse Power: 1/40
• RPM: 3000
• Rotation: CCW
• Static Pressure: 0.1 in. - 72, 0.2 in. - 69, 0.3 in. - 65, 0.4 in. - 66, 0.5 in. - 58, 0.6 in. - 65, 0.7 in. - 50, 0.8 in. - 68, 0.9 in. - 41, 1 in. - 33, 1.0 in. - 97, 1.2 in. - 90, 1.4 in. - 25, 1.6 in. - 73, 2.0 in. - 39
• Enclosure Type: Open
• Shipping Dimensions: 11.8 x 8.7 x 7.3 inches
• Weight: 5.45 lbs
