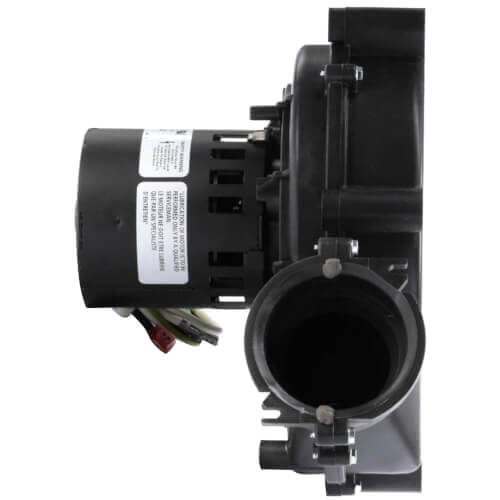

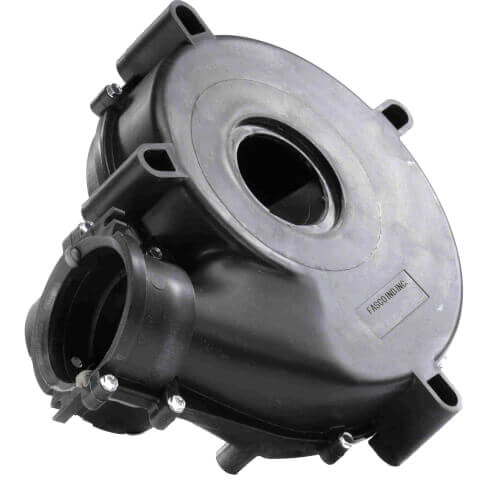

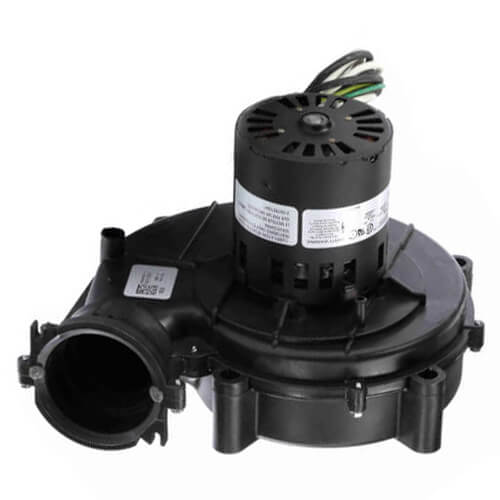

Fasco A189 1-Speed 3000 RPM 1/24 HP Goodman Draft Inducer Motor 115V

Product Description

The Fasco A189 is a 1-speed draft inducer motor designed for HVAC systems. It operates at 3000 RPM and is rated at 1/24 horsepower, making it suitable for various applications. This motor works at a voltage of 115V and is ideal for replacing Goodman part numbers 7021-7302 and D9868620.

• Speed: 1-speed operation
• Power: 1/24 horsepower
• Voltage: 115V

Product Highlights

This draft inducer motor is an aftermarket replacement compatible with Goodman systems. Ensure compatibility with your original part number before purchase.

Product Information

Standard Information

• OEM: Goodman
• Shipping Depth: 10.63 inches
• Weight: 5.2 lbs

Technical Specifications

• RPM: 3000
• Type: Shaded Pole
• Hertz: 60
• Phase: 1
• Amperage: 1.5
• Bearings: Sleeve
• Rotation: CW
• Approvals: CSA, UL
• Insulation Class: B
• Outlet Shape: Round
• Outlet Flange: Yes
• Enclosure Type: Open
• Overload Protection: Thermally
• Max Ambient Temperature: 104°F
