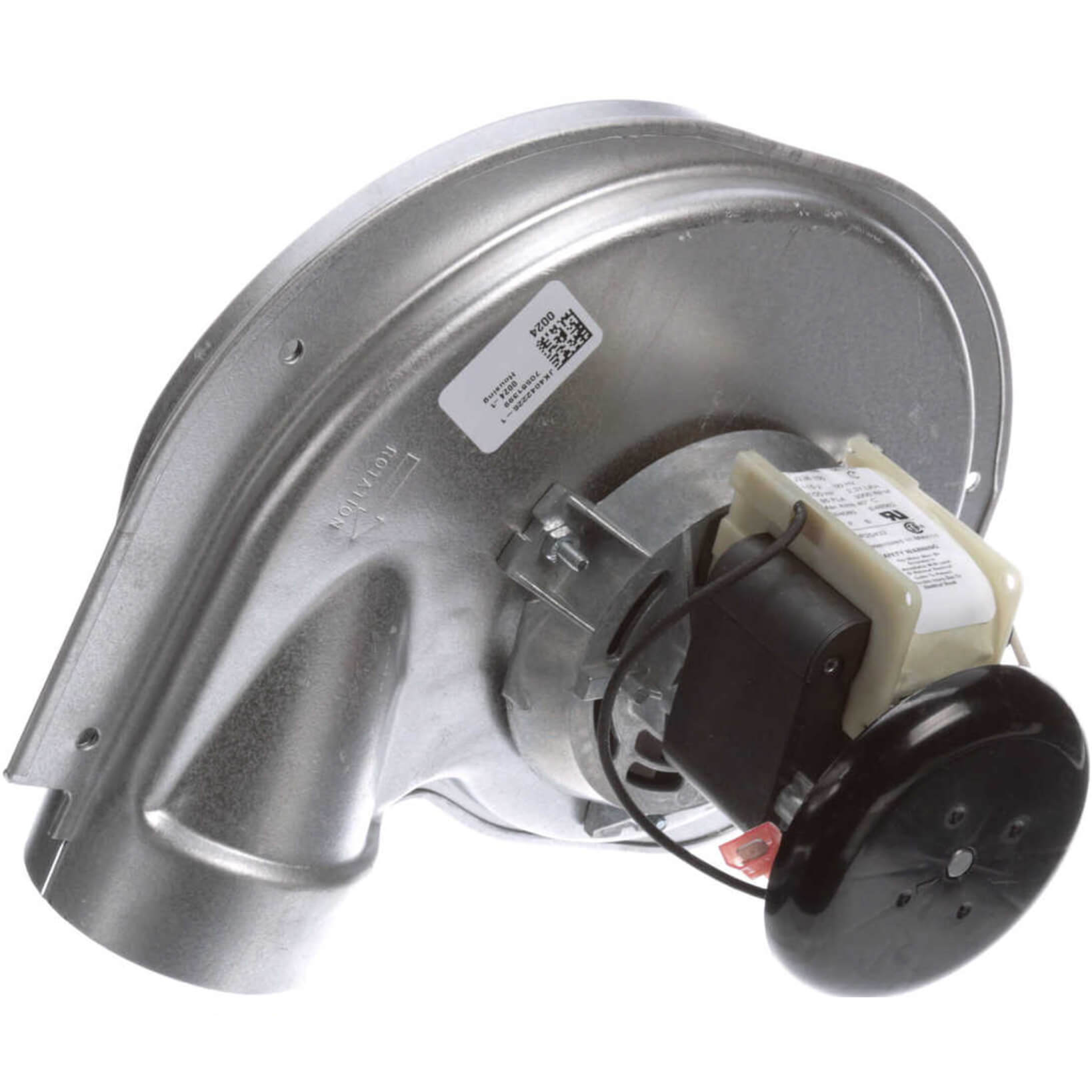

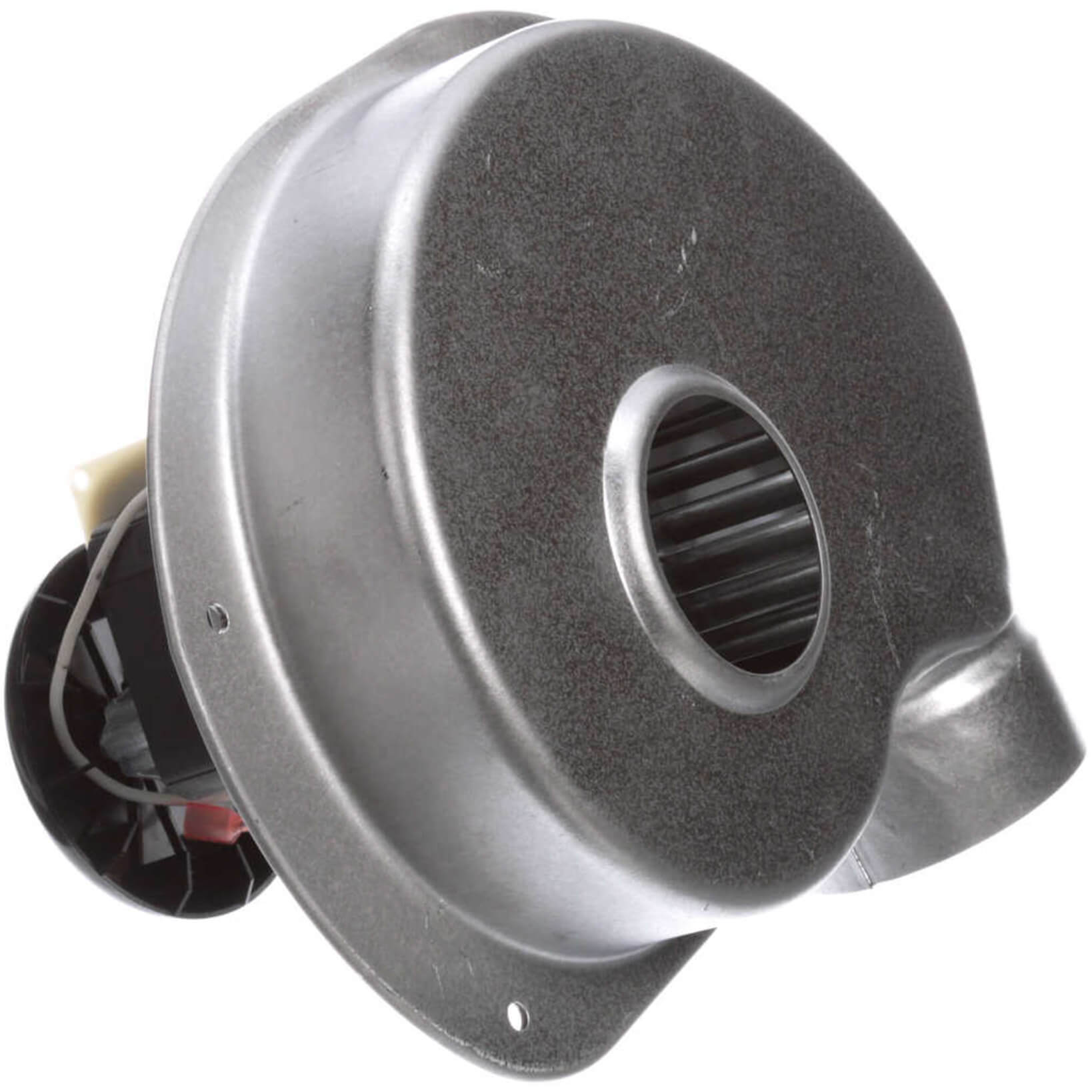

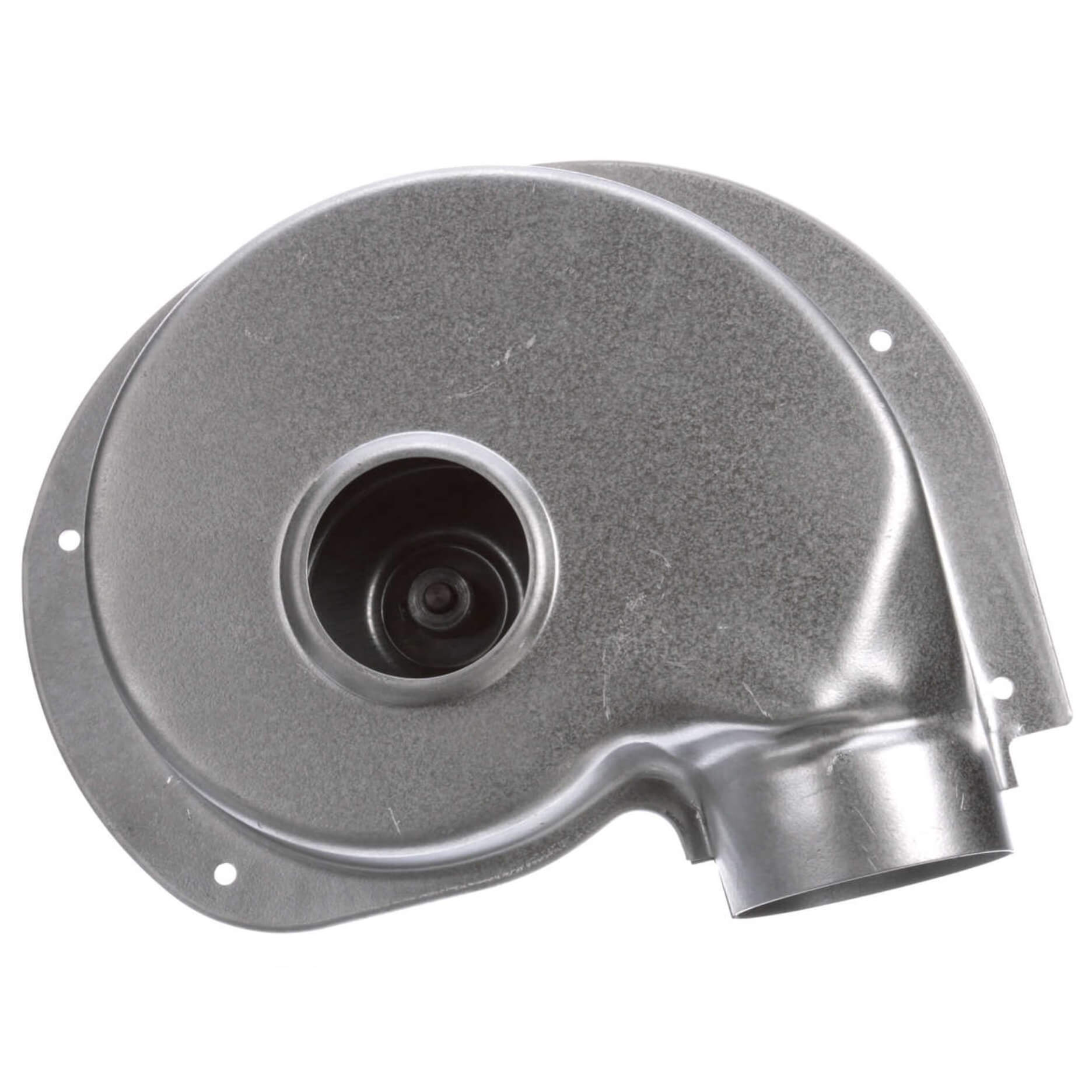

Fasco A176 1-Speed 3100 RPM 1/25 HP Intercity Draft Inducer Motor (115V)

Product Description

The Fasco A176 is a 1-speed draft inducer motor designed for HVAC systems. With a speed rating of 3100 RPM, this motor is suitable for various applications. It delivers a power of 1/25 HP and operates on 115 volts. This aftermarket part replaces original equipment manufacturer models including ICP 7002-2946, 1011899, and 7002-3071.

• 1-speed motor
• Rated at 3100 RPM
• 1/25 horsepower

Product Highlights

This draft inducer motor is built for reliability and efficiency in HVAC systems. Use it to replace worn or inefficient motors to restore system performance.

Product Information

Standard Information

• Brand: Fasco
• Type: Draft Inducer Motor

Technical Specifications

• MPN: A176
• Voltage: 115V
• Amperage: 2.2 A
• Hertz: 60 Hz
• Phase: 1
• Bearings: Ball
• Rotation: CW
• RPM: 3100
• Horse Power: 1/25
• Weight: 6.6 lbs
• Shipping Dimensions: 12 x 10.38 x 8 inches
• Approvals: CSA, UL
• Insulation Class: B
• Max Ambient Temp: 104°F
• Overload Protection: Thermally
• Outlet Shape: Round
• Outlet Flange: No
• Enclosure Type: Open
