Product Description

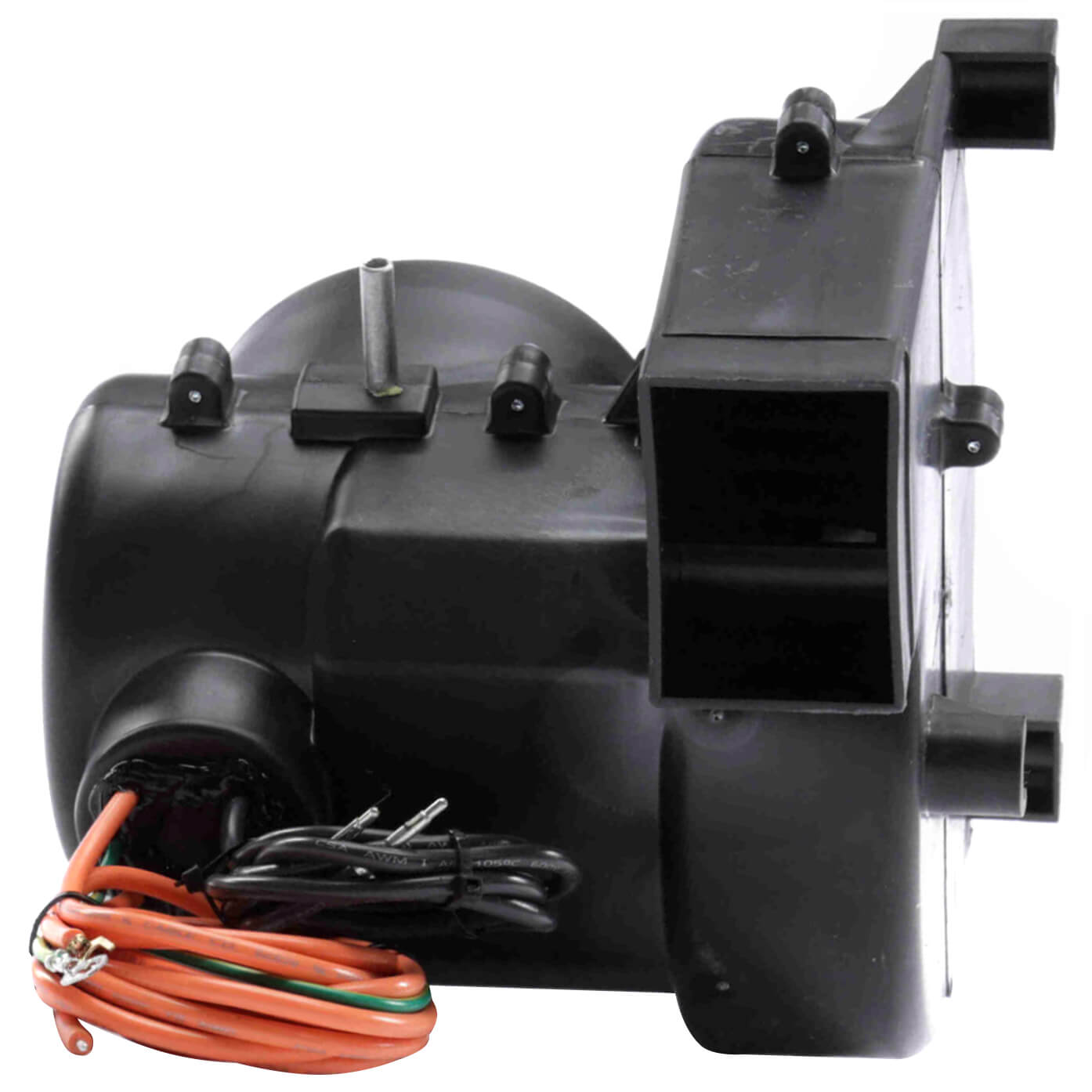

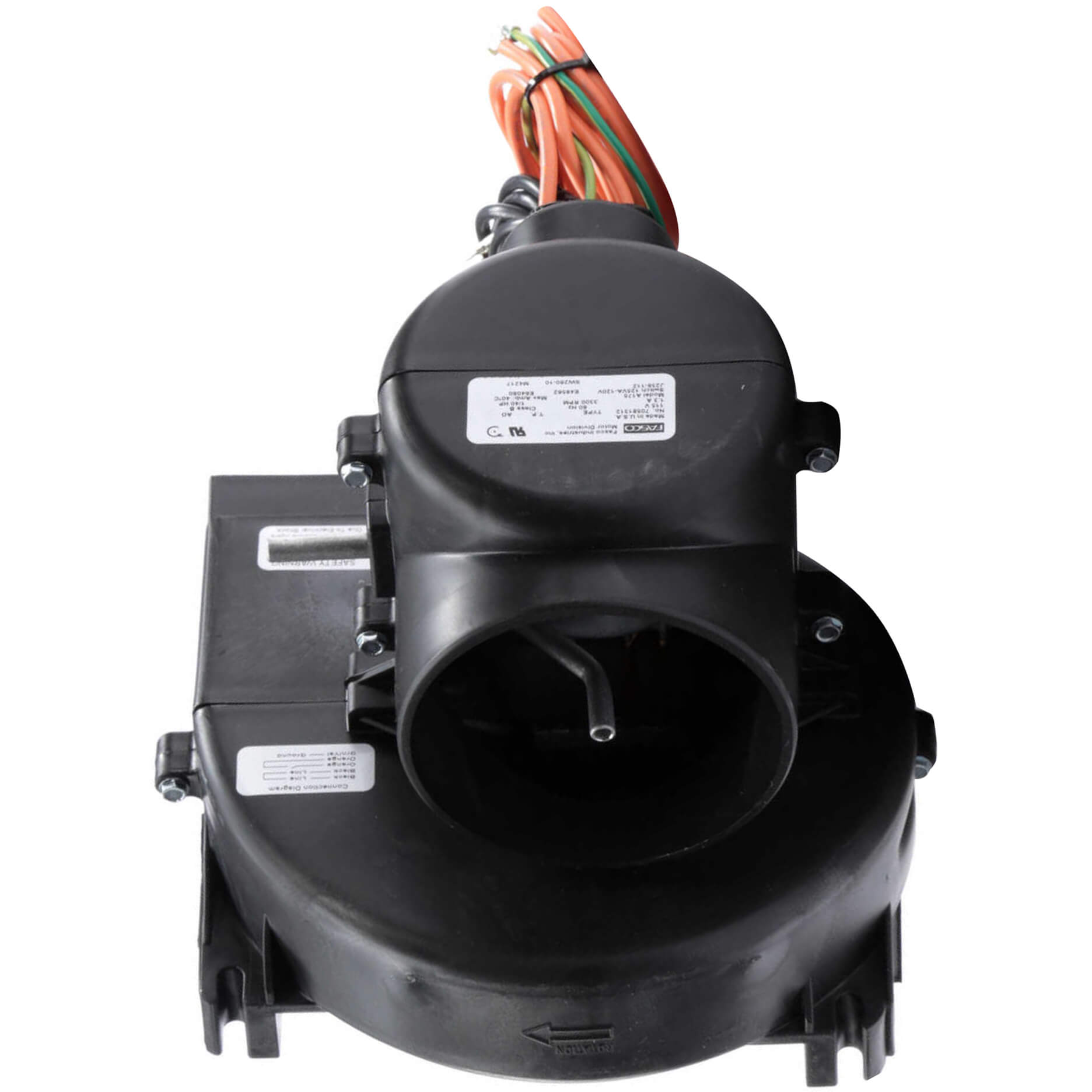

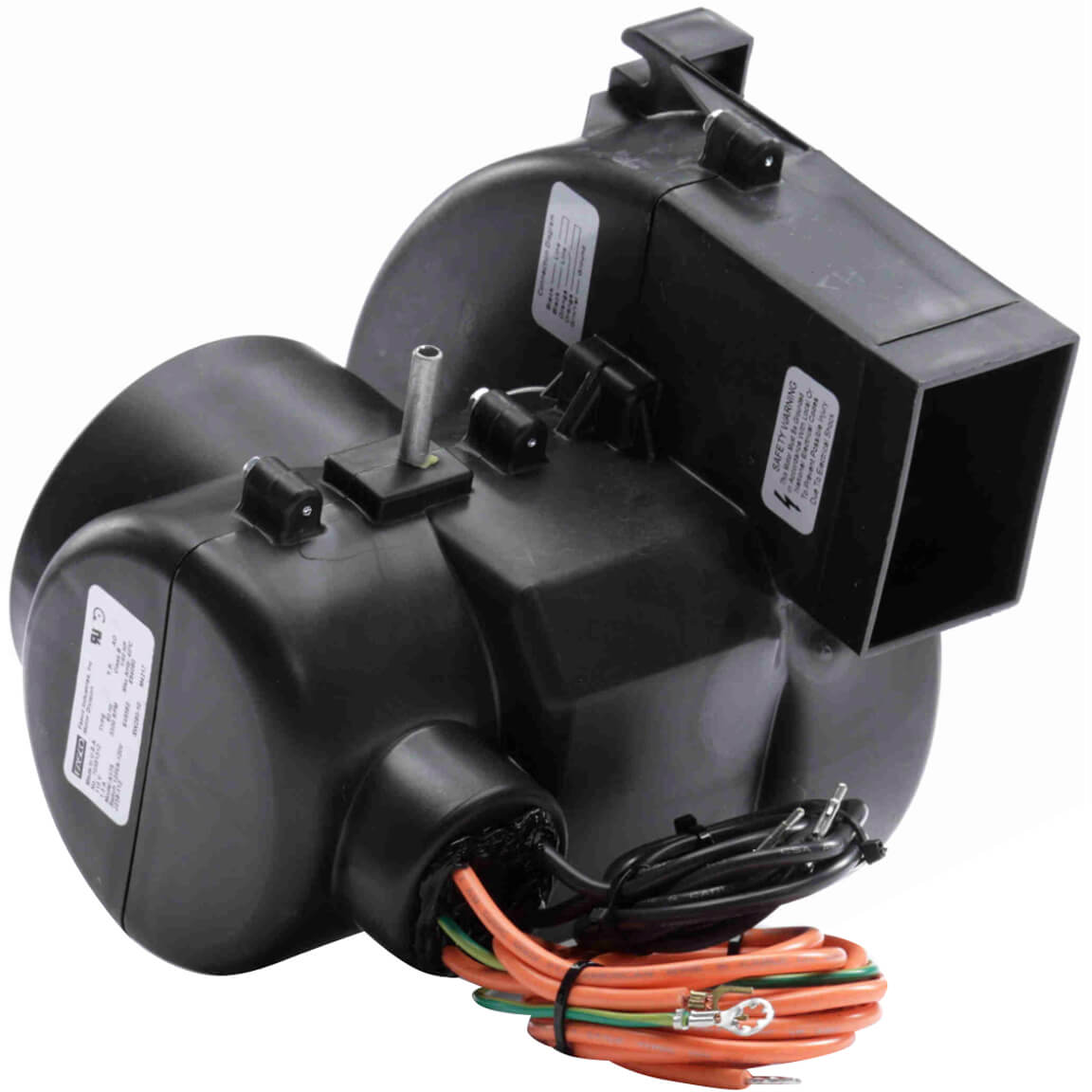

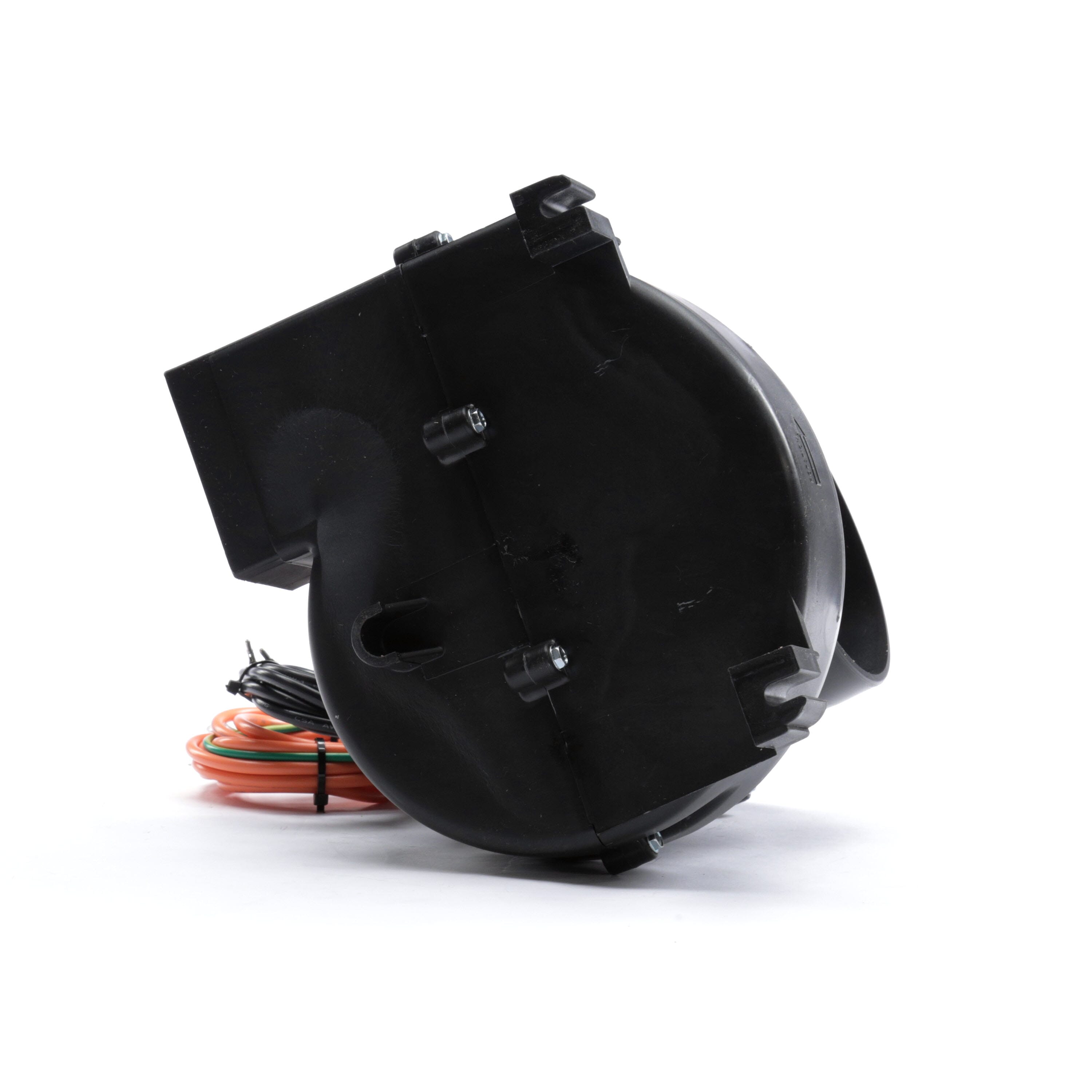

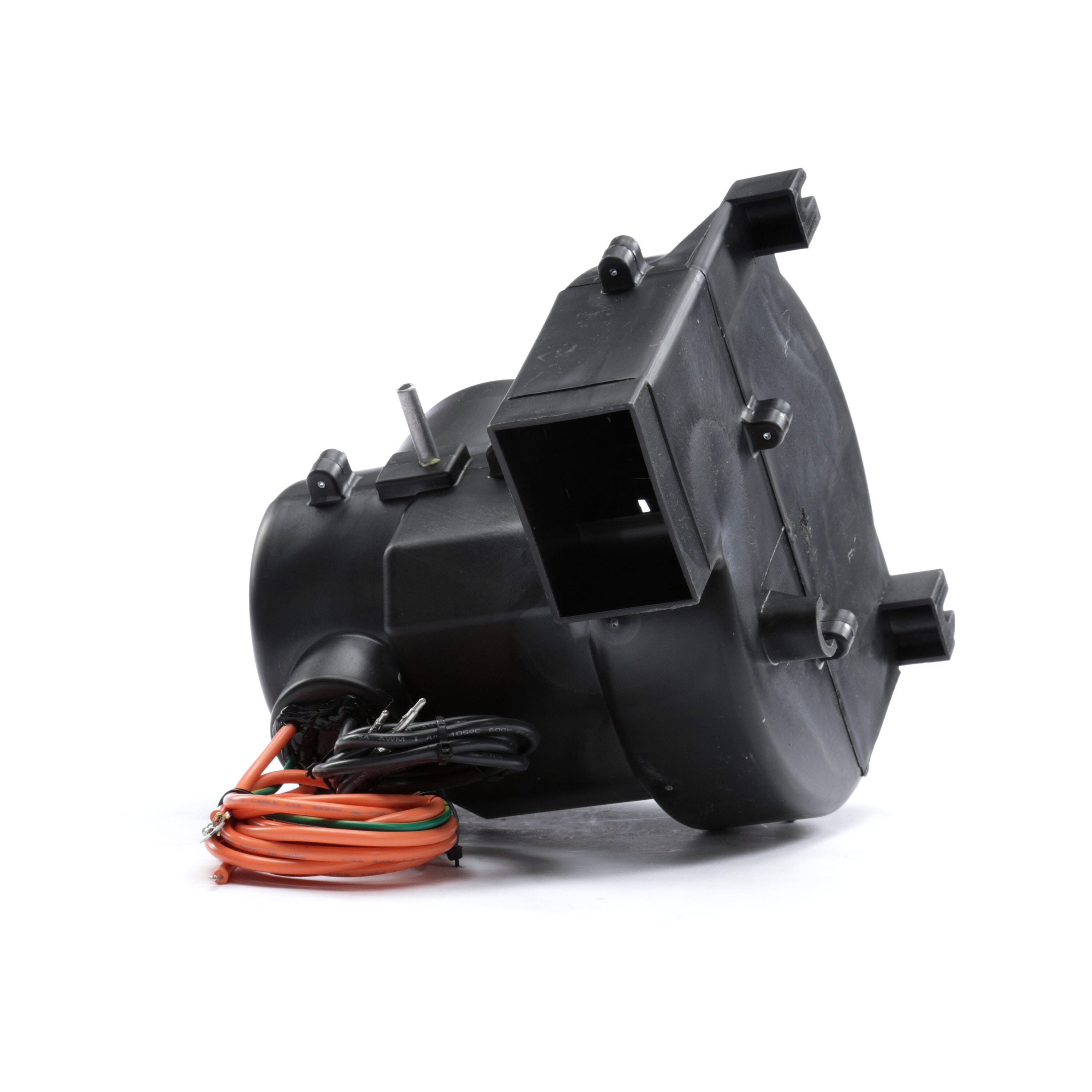

The Fasco A175 is a shaded pole OEM replacement specific purpose blower with sleeve bearing. Operating at 115V and 3300 RPM, this blower is designed for gas or oil furnaces and heaters. It features a 1/40 horsepower motor and draws 1 amp. The Fasco A175 ensures optimal ventilation and air circulation.
- Sleeve bearing construction
- 1/40 Horsepower
- Thermally protected
Product Highlights
The Fasco A175 blower is suitable for furnaces, boilers, water heaters, and other HVAC systems.
Product Information
Standard Information
-
Brand: FASCO
-
Manufacturer Part Number: A175
-
Country of Origin: USA
Technical Specifications
-
Speed: 3300 RPM
-
Voltage: 115 Volts
-
Horsepower: 1/40 HP
-
Item Model Number: A175
-
Part Number: A175
-
Rotation: Counterclockwise
-
Amps: 1 Amps
-
Bearing: Sleeve Bearing
-
OEM: ICP
-
Cross Reference: 7002-1891, 1708-600P, 1708600P, 70021891
-
Bearing Type: Slv
-
F/L Amps: 1.0
-
Replaces: 7002-1891
-
Rot.: CCW
-
Full Load Amps: 1
-
Type: Shaded Pole
-
Hertz [Features]: 60
-
Phase [Features]: 1
-
Speeds [Features]: 1
-
Rotation [Features]: CCW
-
Approvals [Features]: UL
-
Enclosure Type [Features]: Open
-
Insulation Class [Features]: B
-
Overload Protection [Features]: Thermally
-
Max Ambient Temp (°F) [Features]: 104°F
