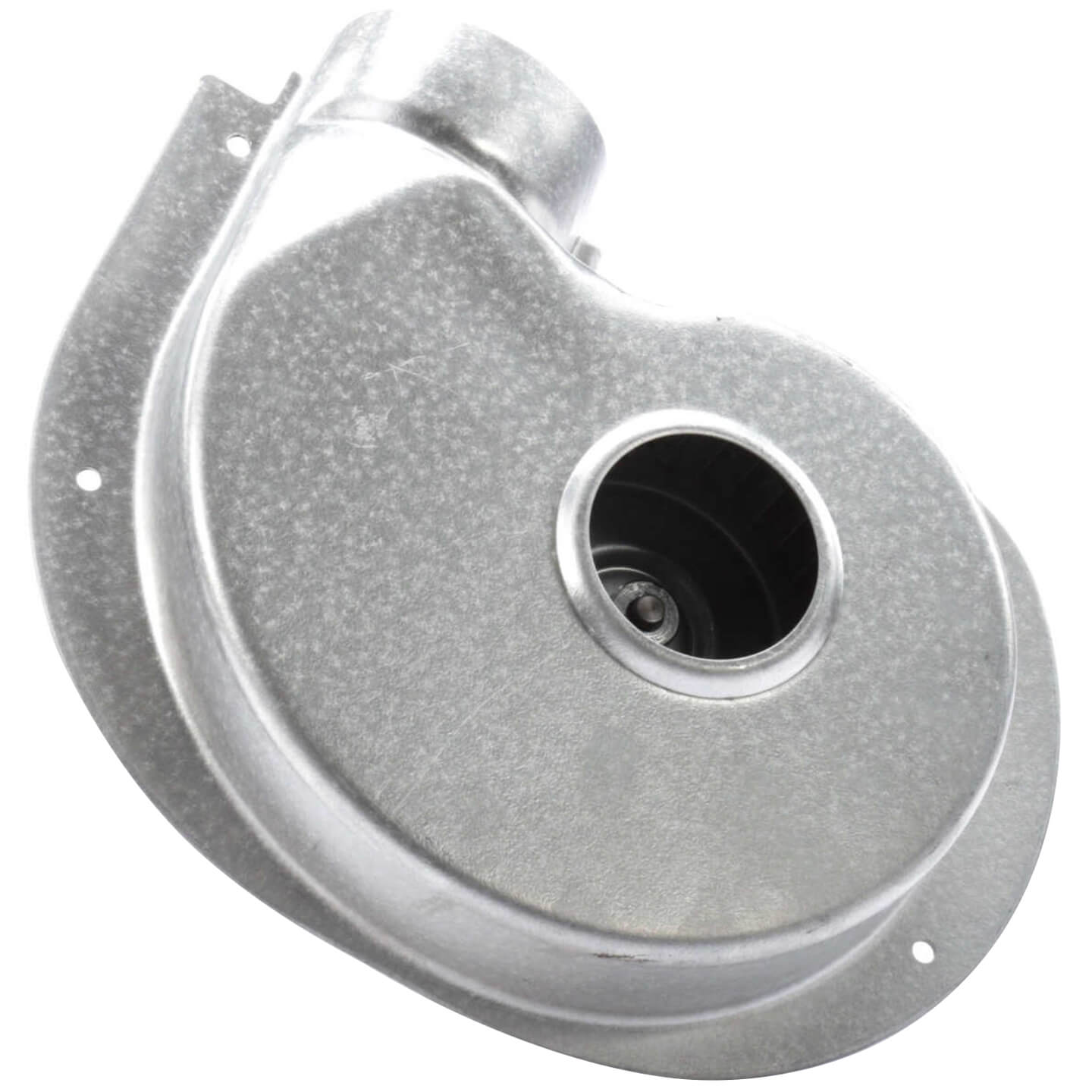

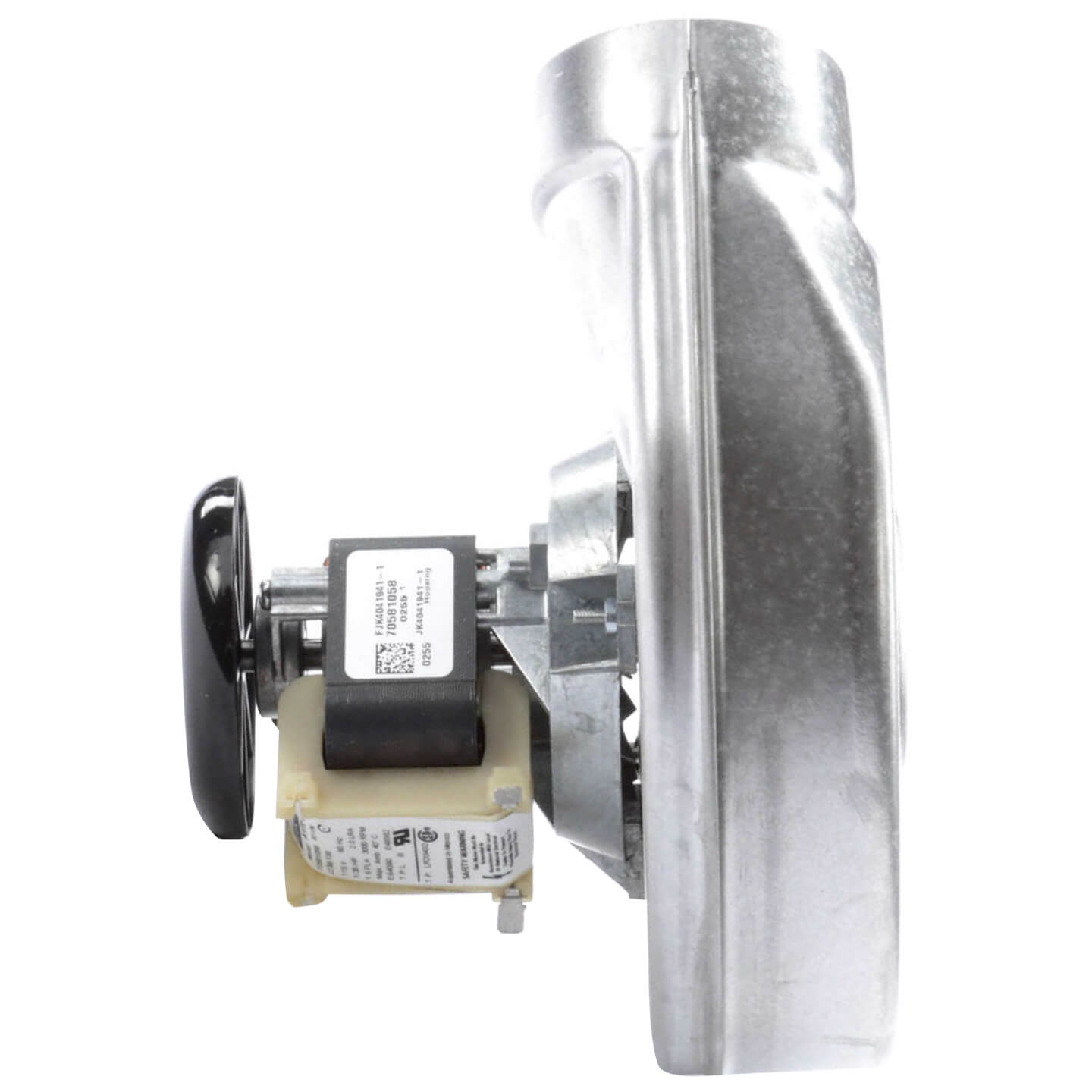

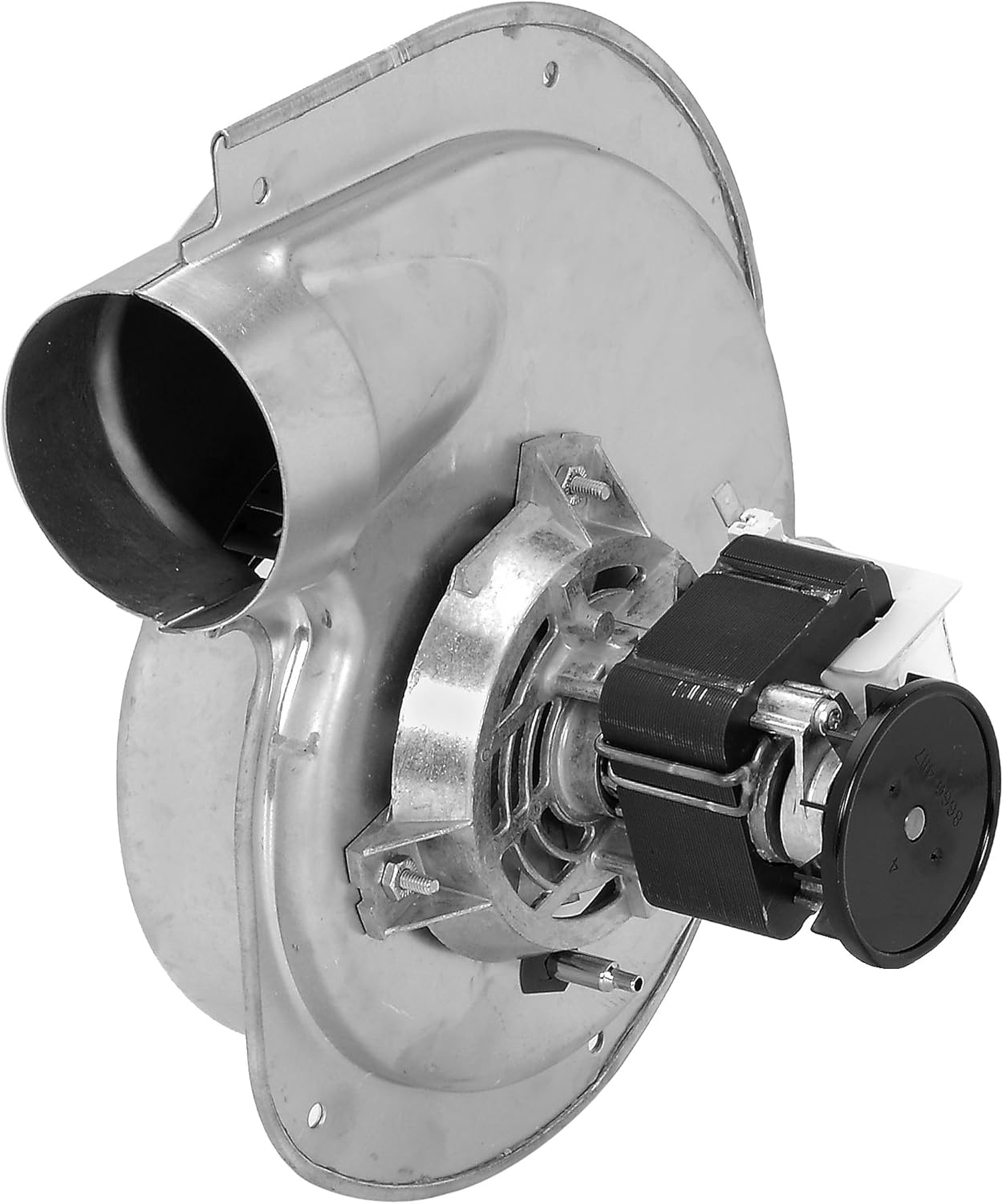

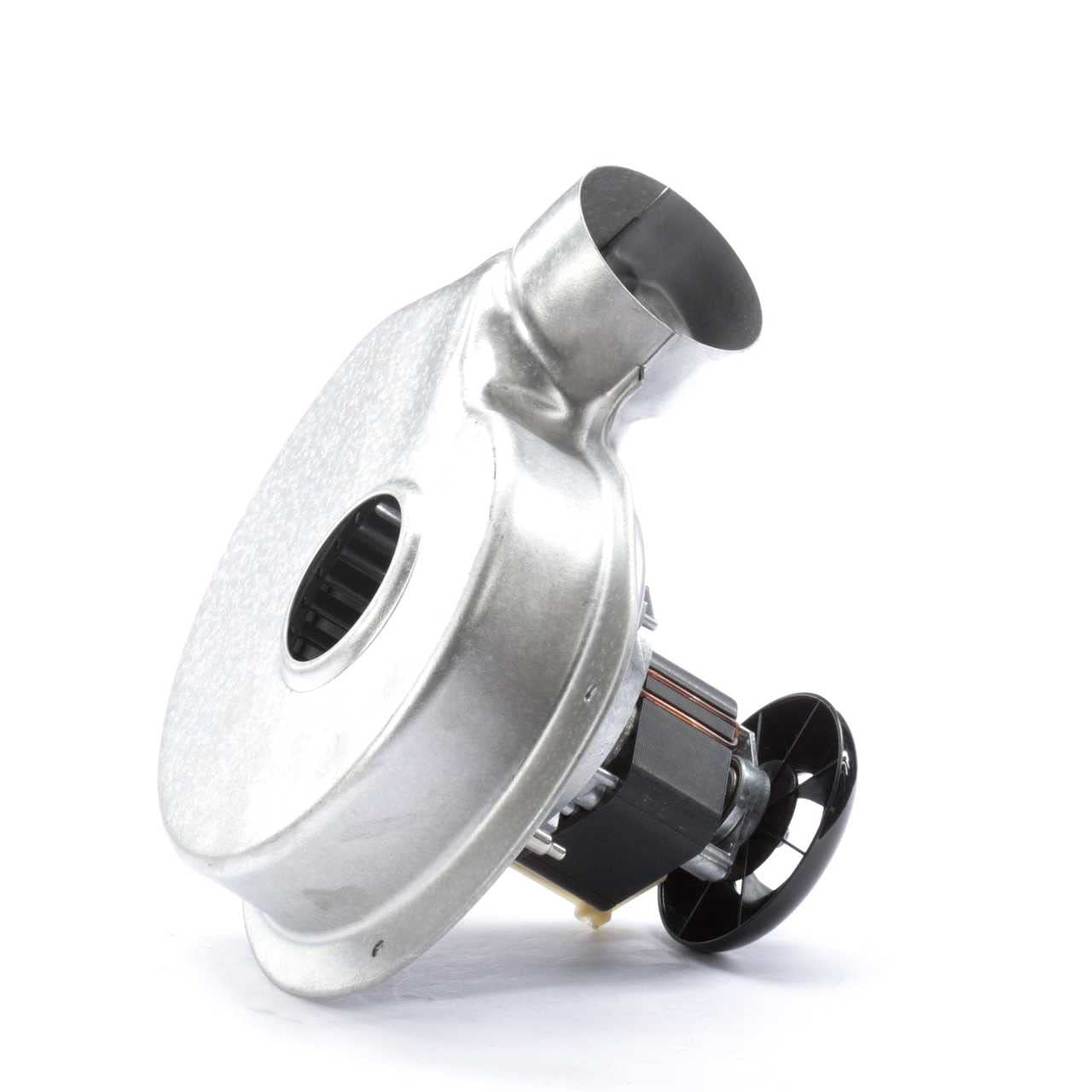

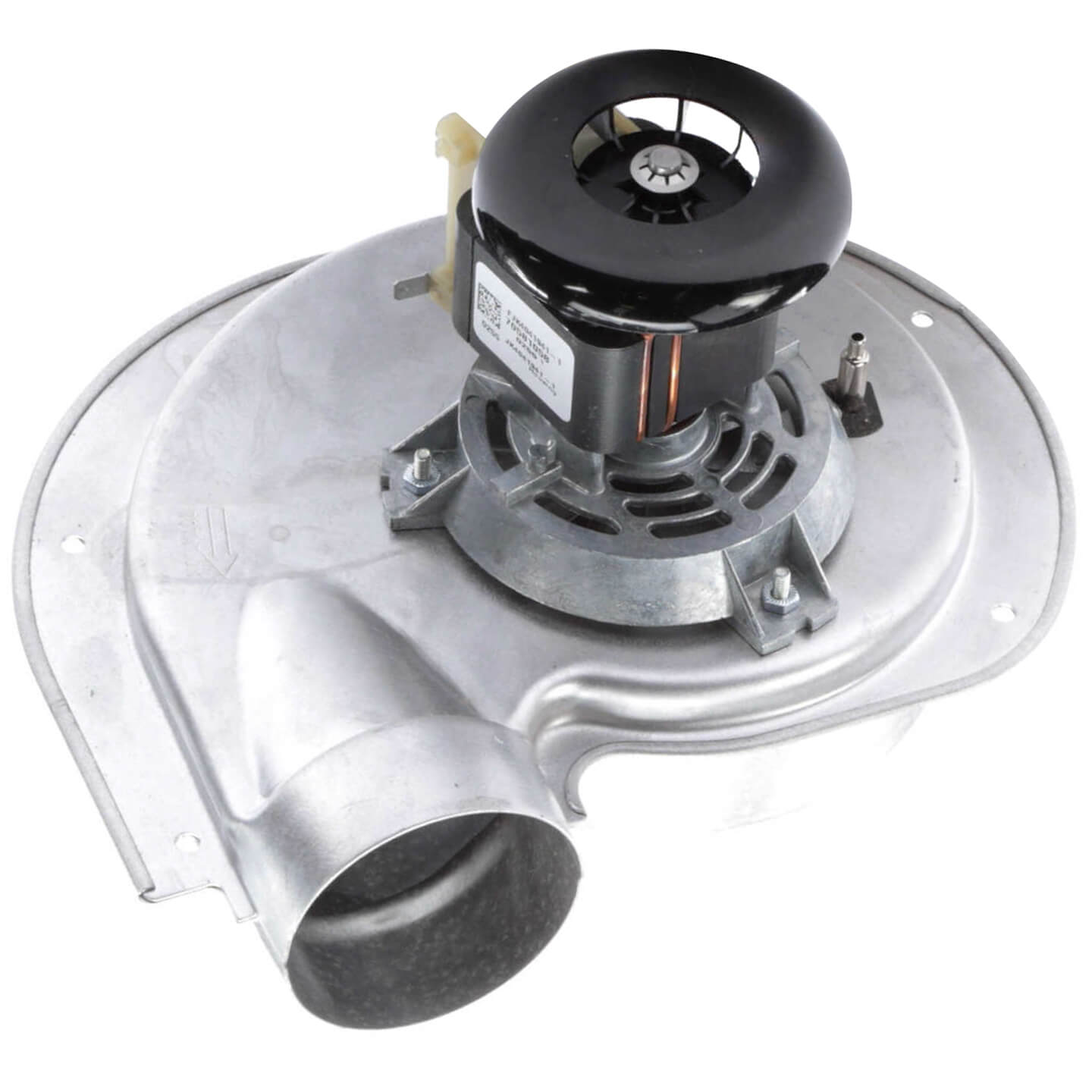

Fasco A172 Shaded Pole OEM Replacement Specific Purpose Blower 1/35HP

Product Description

The Fasco A172 is a shaded pole OEM replacement specific purpose blower with ball bearings. It is suitable for gas or oil furnaces and heaters. This blower operates at one hundred fifteen volts, sixty hertz, and one point six amps, providing one over thirty-fifth horsepower at three thousand RPM. It features thermal protection and is recognized by UL and CSA.

• Shaded Pole OEM Replacement Blower
• Designed for Gas and Oil Furnaces
• Thermally Protected and UL Recognized

Product Highlights

The Fasco A172 is designed to enhance airflow in heating systems. It is essential for ensuring optimal performance and efficiency in gas and oil heating applications.

Product Information

Standard Information

• Brand: Fasco
• MPN: A172

Technical Specifications

• Speed: 3000 RPM
• Voltage: 115 Volts
• Horsepower: 1/35HP
• Rotation: Clockwise
• Frequency: 60 Hz
• Amps: 1.6
• Bearing Type: Ball Bearing
• Application: For gas or oil furnaces and heaters
• Wheel Size: 4-3/4 inches x 1-5/8 inches
• Outlet Diameter: 3 inches
• Maximum Fan Speed: 3400 RPM
• Overall Dimensions: 8.5 inches Depth x 6.5 inches Width x 6.31 inches Height
• Agency Compliance: CSA Certified, UL Listed
• Construction Material: Steel
• Includes Motor: Yes
