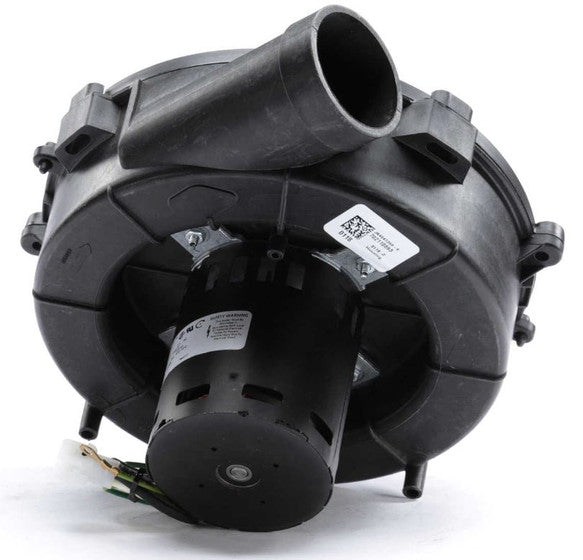

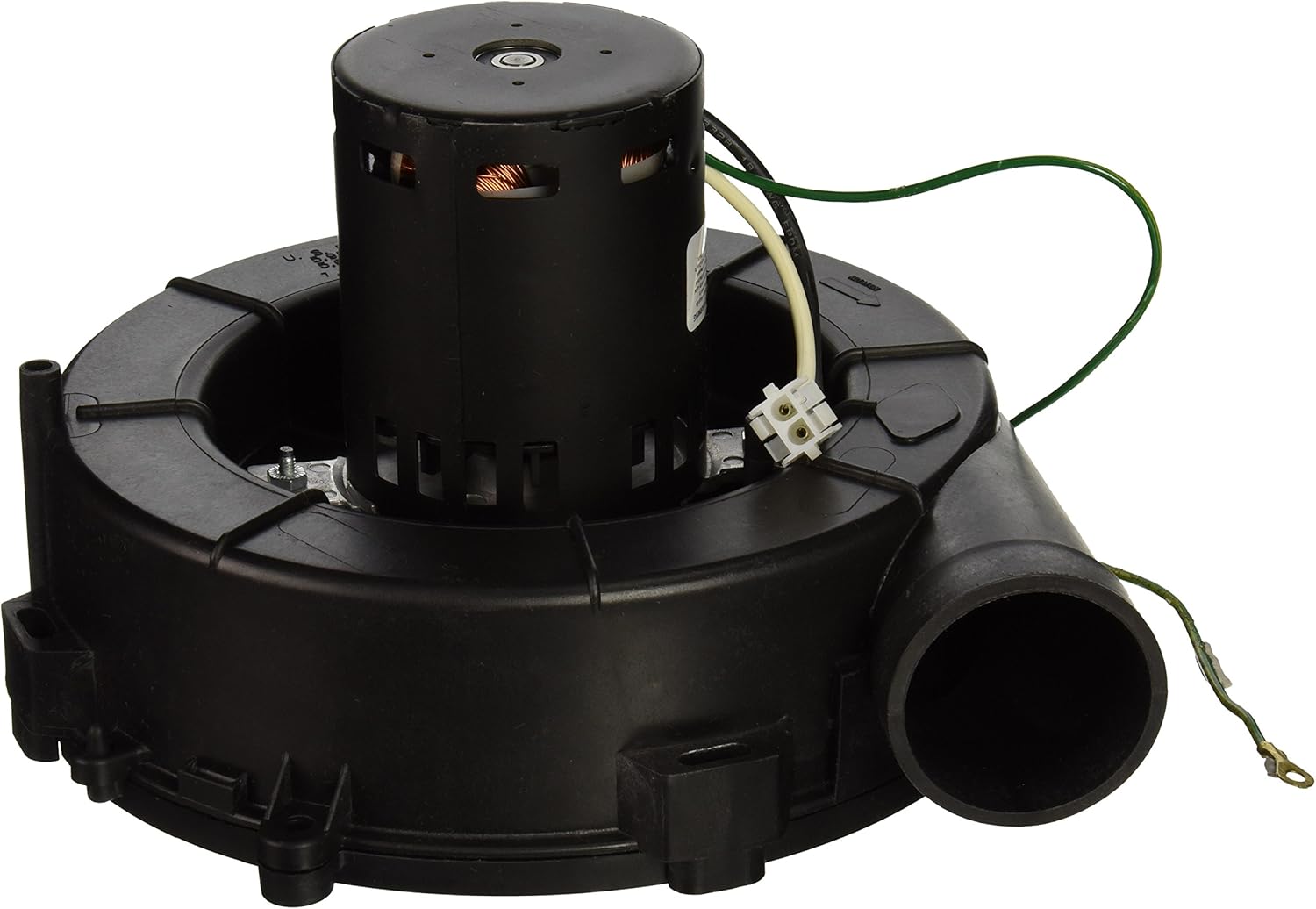

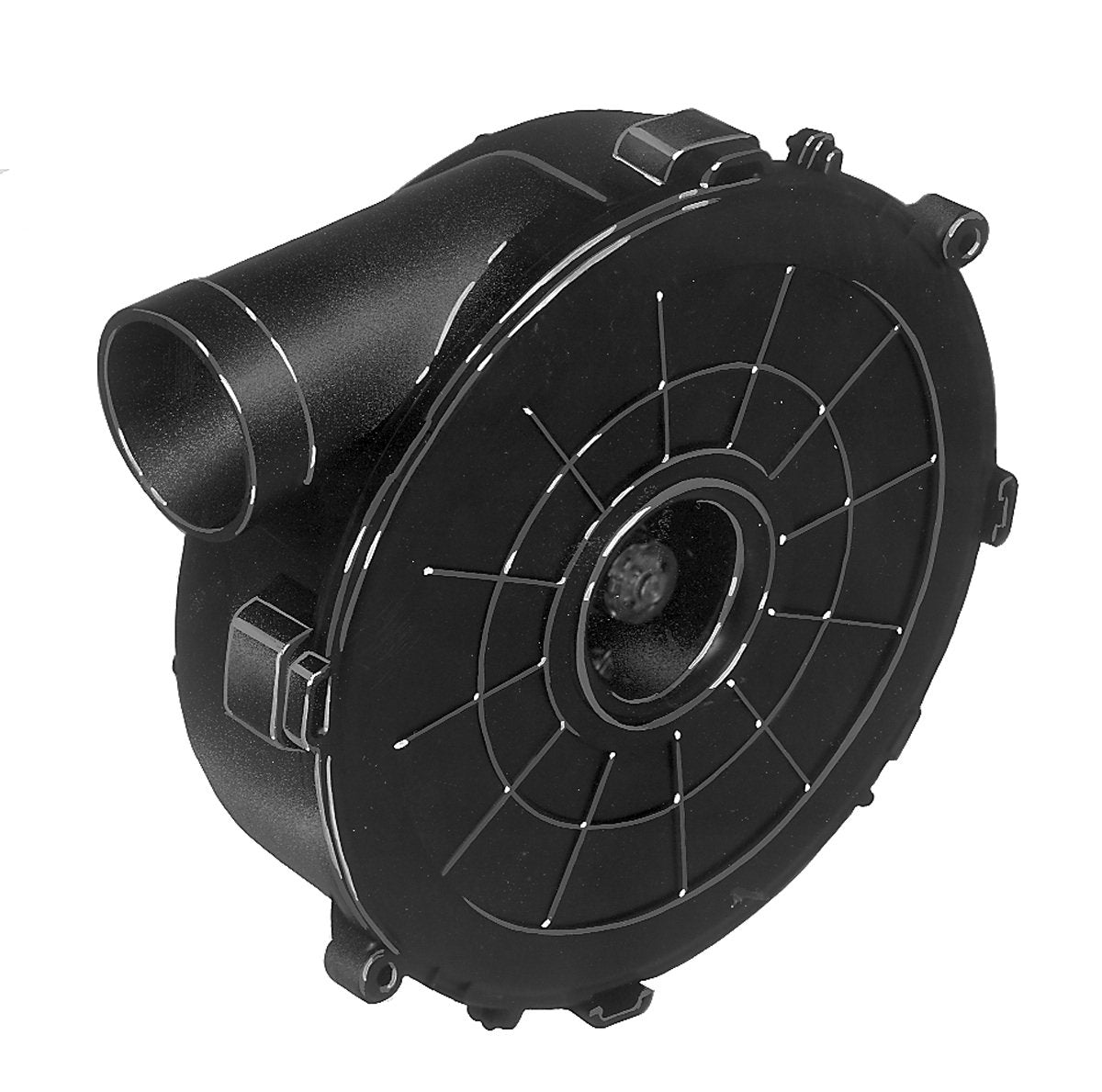

Fasco A163 Draft Inducer Motor 115V (151-500 CFM) 7021-9450

Product Description

Fasco A163 is a 1-speed draft inducer motor rated 115 V and 3,400 rpm, designed for 151–500 CFM furnace and HVAC draft applications. The shaded-pole motor provides approximately 1/20 horsepower and draws about 1.8 amps. It uses ball bearings and includes thermal overload protection in an open air-over enclosure with Class B insulation. Typical use cases include replacement inducer/blower in Lennox and compatible furnace systems.

• 1-speed shaded-pole motor, 3,400 rpm, 1/20 HP, 1.8 A
• Rated 115 V, 60 Hz; suitable for 151–500 CFM draft inducer applications
• Ball bearing construction, thermally protected, open air-over enclosure, Class B insulation

Product Highlights

Single-speed 115 V draft inducer; 3,400 rpm; ball bearings; thermally protected

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: A163
• Country of Origin: United States

Technical Specifications

• Brand: Fasco
• MPN: A163
• Product Type: Draft inducer motor
• Motor Type: Shaded pole
• Frame Size: 3.3 inches
• Horsepower: 1/20 HP
• Speed (RPM): 3,400 rpm
• Number of Speeds: 1-Speed
• Input Voltage: 115 V
• Frequency: 60 Hz
• Current: 1.8 amps
• Air Flow Capacity: 151-500 CFM
• Bearing Type: Ball bearing
• Rotation: CCWSE (counterclockwise shaft end)
• Enclosure Type: Open (air over)
• Insulation Class: B
• Thermal Protection: Thermally protected
• Certifications: UL, CSA
• Maximum Ambient Temperature: 40 C (104 F)
• Outlet Shape: Round
• Outlet Flange: No
• Phase: Single phase
• Country of Manufacture: United States
