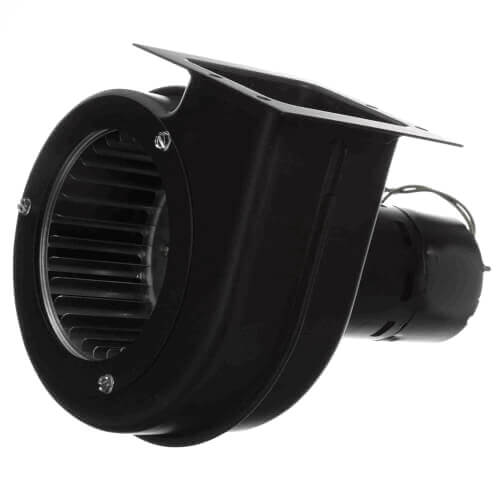

Fasco A161 1-Speed 1600 RPM 1/40 HP Fedders Draft Inducer Motor 230V

Product Description

The Fasco A161 is a reliable replacement part designed for draft induction in HVAC applications. This 1-speed motor operates at 1600 RPM with a horsepower rating of 1/40 and a voltage of 230V. It is suitable as a replacement for Brinkley and Fedders models.

• Draft inducer motor designed for HVAC systems.
• Compatible with Brinkley/Fedders 8353920103.
• Features thermal overload protection for safety.

Product Highlights

Perfect for maintaining airflow in heating and cooling systems, the Fasco A161 offers efficient operation and easy installation.

Product Information

Standard Information

• OEM Compatibility: Fedders, Brinkley
• Voltage: 230V

Technical Specifications

• Horse Power: 1/40
• Amperage: 0.55
• RPM: 1600
• Hertz: 60
• Phase: 1
• Speeds: 1
• Bearings: Ball
• Rotation: CCW
• Air Flow Capacity: 161 CFM
• Approvals: CSA
• Enclosure Type: Open Fan Cooled
• Insulation Class: B
• Max Ambient Temp: 104°F
• Shipping Dimensions: 12.75 in depth, 9.38 in width, 8.25 in height
• Weight: 7.4 lbs
• Outlet Shape: Rectangle
• Outlet Flange: No
• Overload Protection: Thermally
