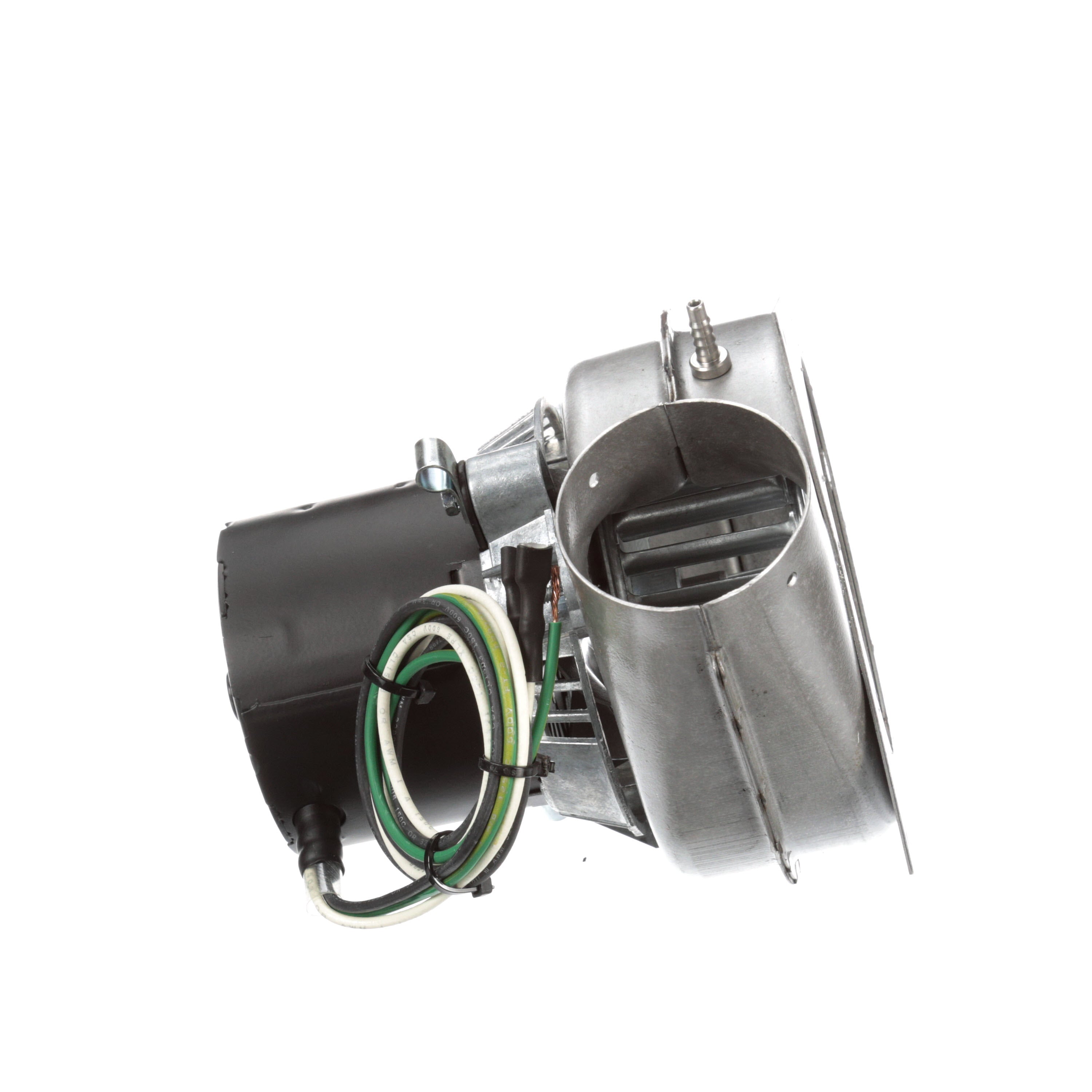

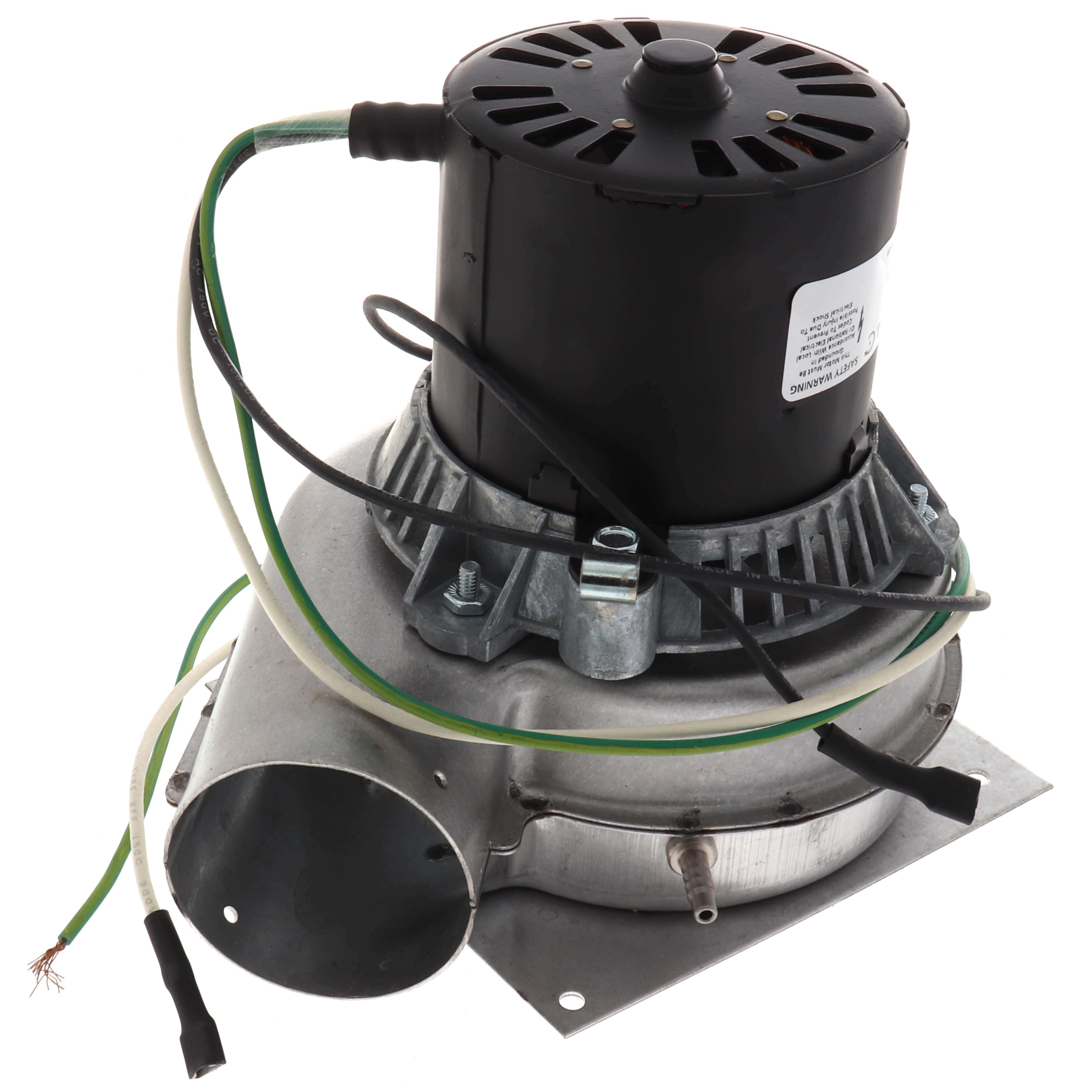

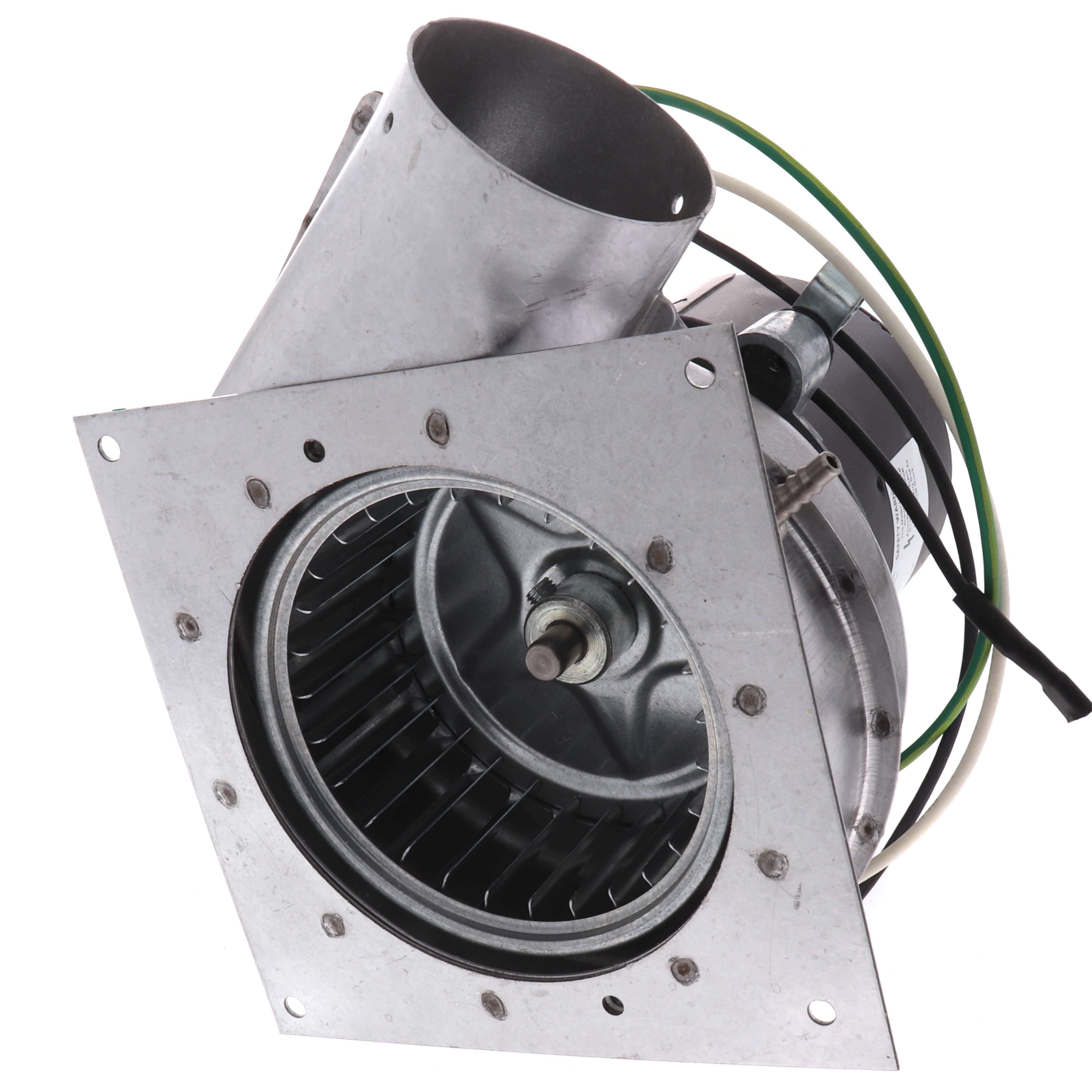

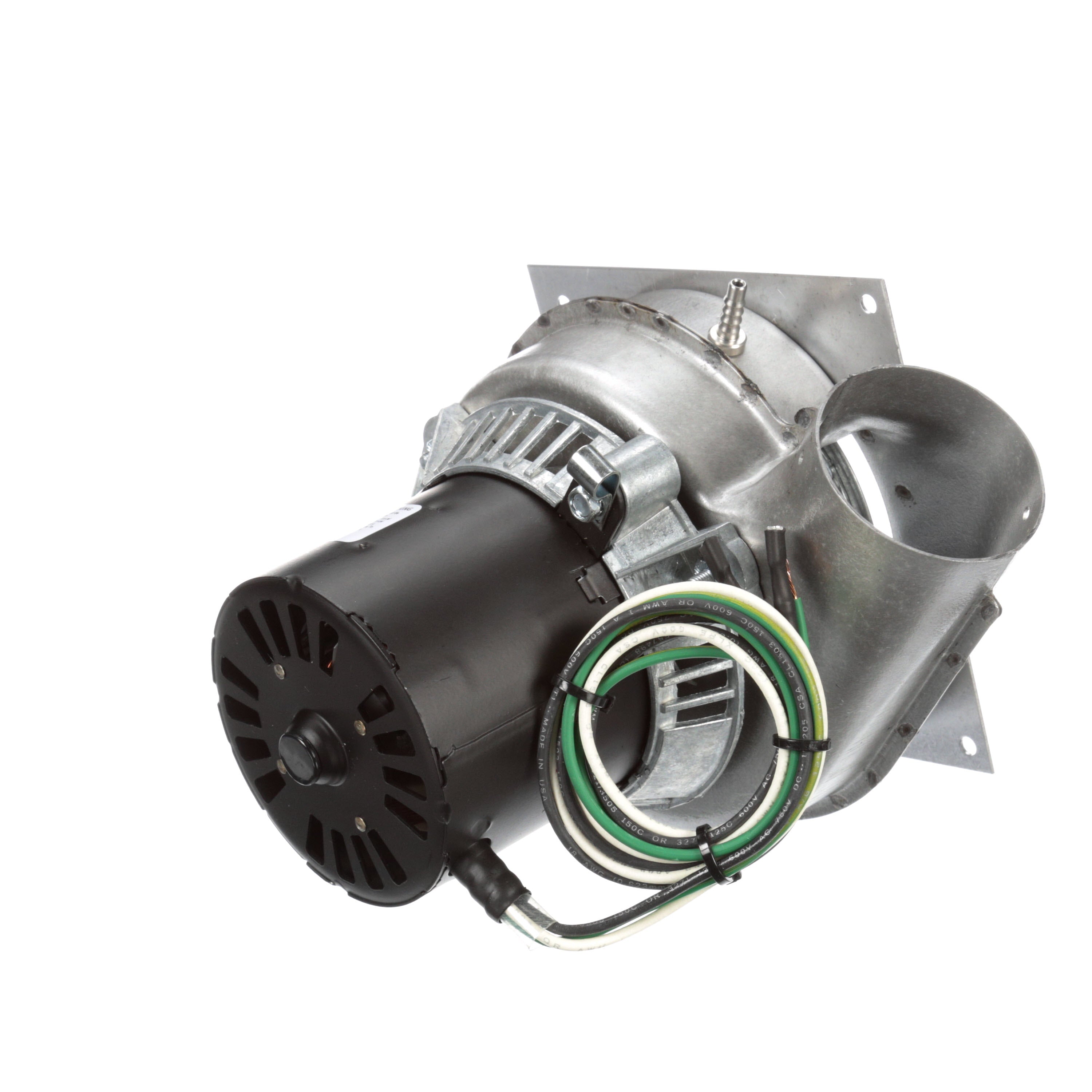

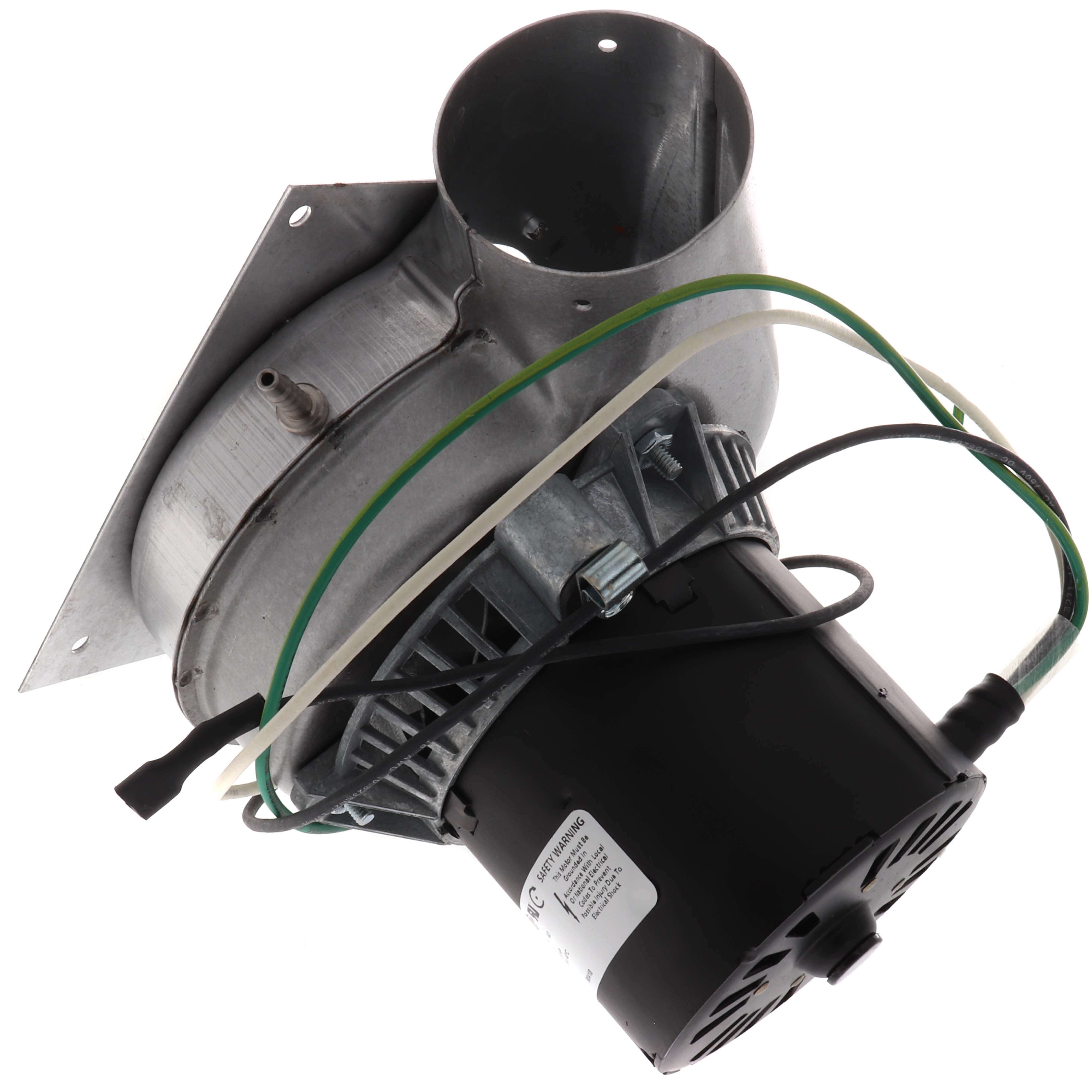

Fasco A128 3.3 inches Frame Shaded Pole OEM Replacement Specific Purpose Blower with Sleeve Bearing, 1/50HP, 3,000 rpm, 120V, 60 Hz, 0.9 amps

Product Description

The Fasco A128 3.3" Frame Shaded Pole OEM Replacement Specific Purpose Blower features a sleeve bearing. This blower operates at 1/50HP, 3,000 rpm, 120V, 60 Hz, and 0.9 amps. It is designed as an OEM replacement for specific purpose blower applications, including furnaces, boilers, and water heaters.

• OEM Replacement
• Specific Purpose Blower
• Sleeve Bearing

Product Highlights

The Fasco A128 is an OEM replacement blower with a shaded pole motor, ideal for furnaces and HVAC systems.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: A128
• Country of Origin: USA

Technical Specifications

• Brand: Fasco
• Frame: 3.3"
• Application: Furnaces
• Bearing Type: Sleeve
• Horsepower: 1/50HP
• Speed: 3,000 rpm
• Voltage: 120V
• Frequency: 60 Hz
• Amps: 0.9 amps
• RPM: 3000
• Item Model Number: A128
• Type: Shaded Pole
• Phase: 1
• Speeds: 1
• Rotation: CW
• Outlet Shape: Round
• Outlet Flange: No
• Enclosure Type: Open
• Insulation Class: B
• Overload Protection: Thermally
• Max Ambient Temp (°F): 104°F
• Hz: 60
• Current: 0.9 A
• Drive Type: Direct
• Inlet Dia.: 3 7/8 in
• Motor Type: Shaded Pole
• Wheel Type: Forward Curve
• Blower Item: OEM Specialty Blower
• Lead Length: 26 in
• Outlet Dia.: 2 1/8 in
• With Flange: No
• For Use With: Furnace
• Housing Color: Natural
• Overall Depth: 6 1/4 in
• Overall Width: 6 3/8 in
• Blower Voltage: 120V AC
• Full Load Amps: 0.90
• Housing Finish: Metal
• Inlet Diameter: 3 7/8 in
• Overall Height: 5 7/8 in
• Wheel Diameter: 3 3/4 in
• Wheel Material: Steel
• Motor Enclosure: Open
• OEM Replacement: Yes
• Outlet Diameter: 2 1/8 in
• Housing Material: Steel
• Max. Inlet Temp.: 400 Degrees F
• Motor Insulation: Class B
• Number of Speeds: 1
• Agency Compliance: CSA Compliant, UL Recognized
• Blower Motor Type: Shaded Pole
• Maximum Fan Speed: 3,000 RPM
• Mounting Position: All Position
• Nameplate Voltage: 120V AC
• Outlet Dimensions: 2 1/8 in Round
• Blower Conduit Box: No
• Blower Wheel Width: 1 7/8 in
• Max. Ambient Temp.: 104 Degrees F
• Blower Outlet Shape: Round
• Maximum Motor Speed: 3,000 RPM
• Blower Wheel Diameter: 3 13/16 in
• Compatible with Brand: Consolidated Industries
• Electrical Connection: Wire Leads
• Motor Insulation Class: B
• Maximum Static Pressure: Not Applicable
• Blower Thermal Protection: Auto
• Maximum Inlet Air Temperature: 400 Degrees F
• Volts: 120
• OEM: Consolidated Ind.
• DEM Reference: FA#A128
• Spec Sheet: A128
• Thermal Protection: Thermally
• Ambient Temperature: 40 °C
• UL: Yes
• CSA: Yes
• Blower Outlet Flange: No
• OEMs Replaced: Consolidated
