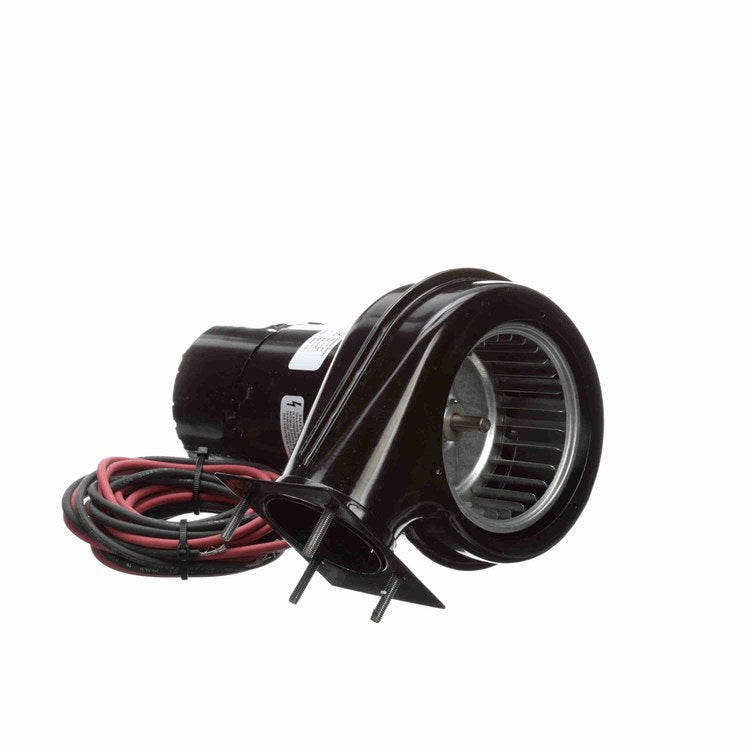

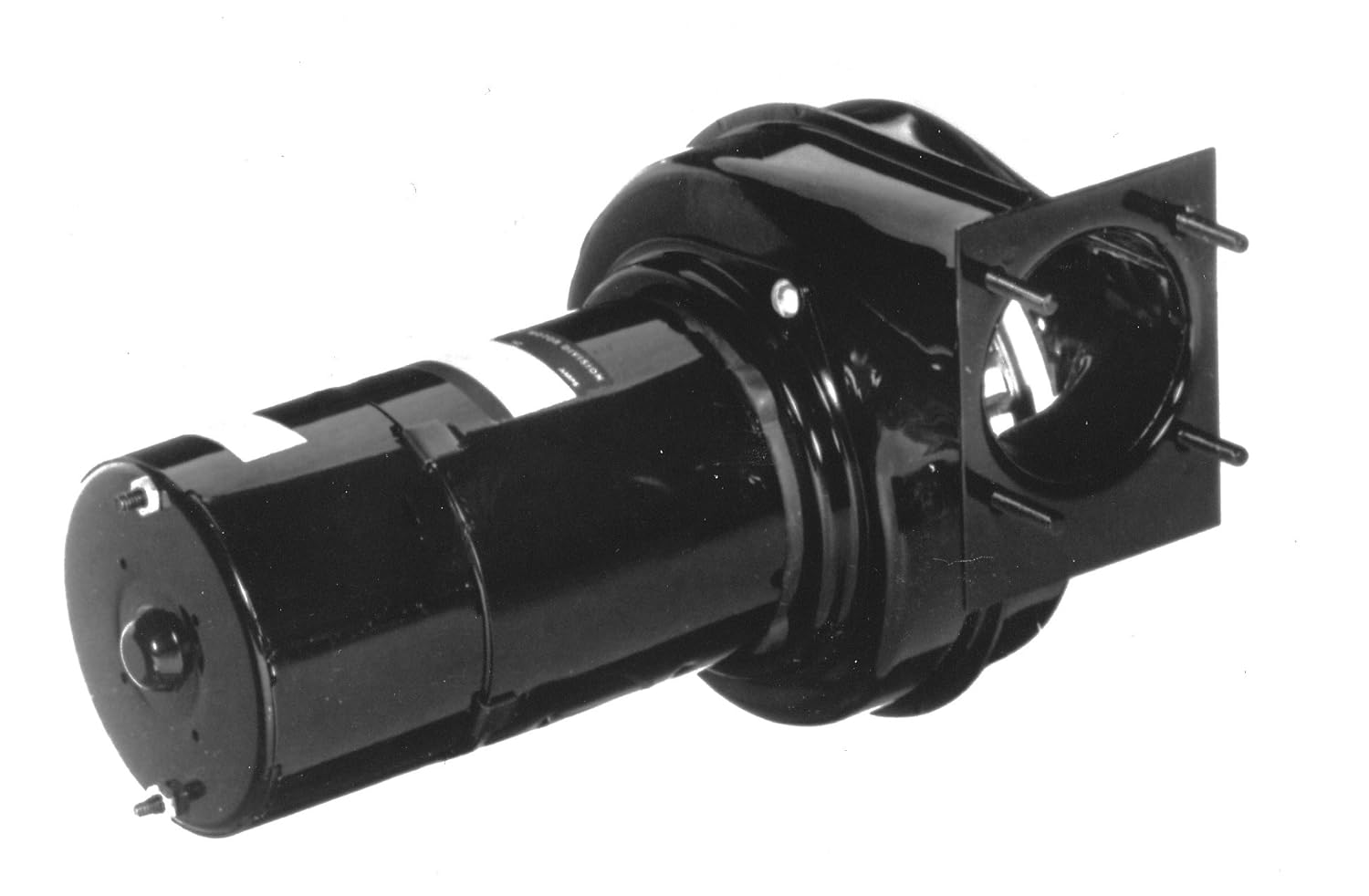

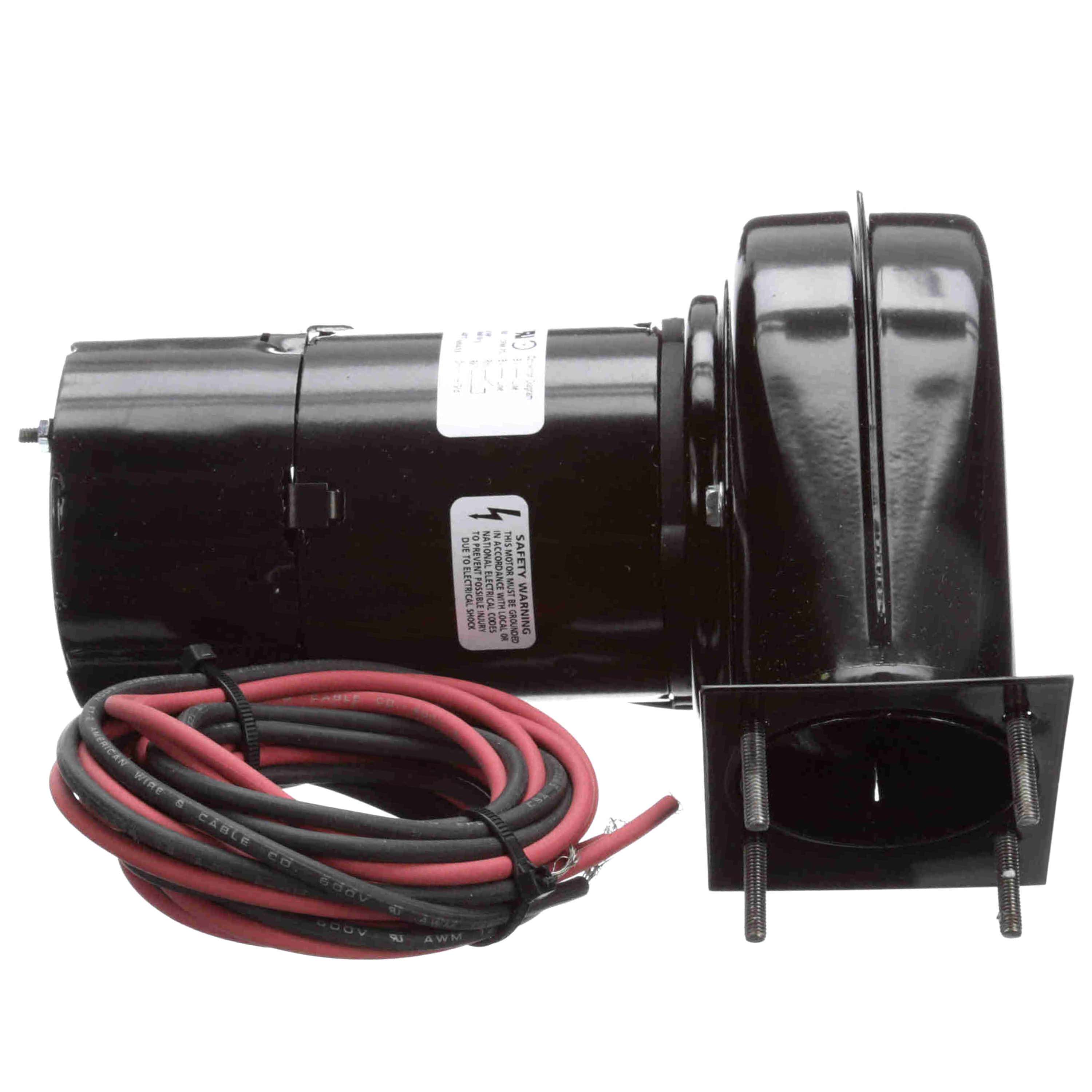

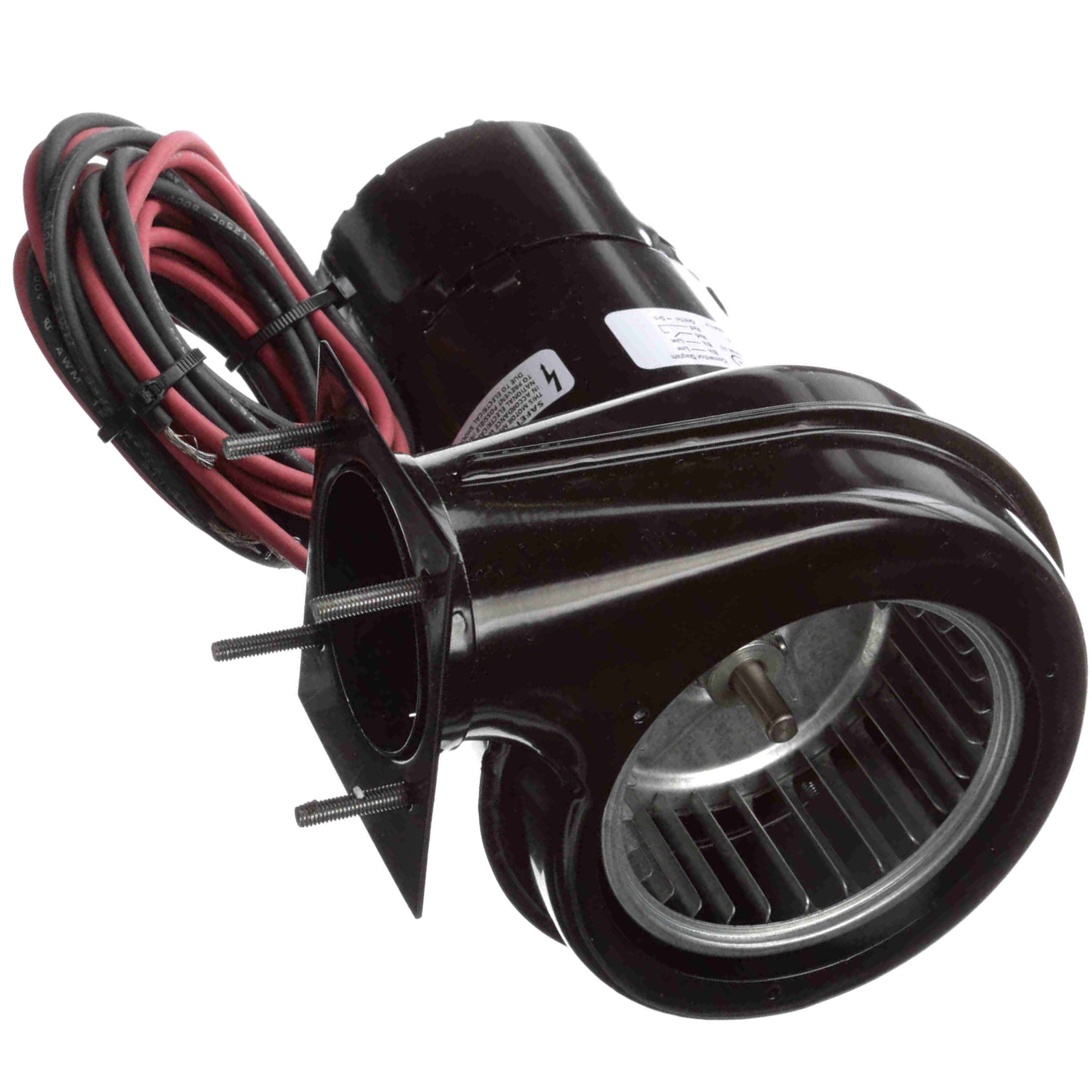

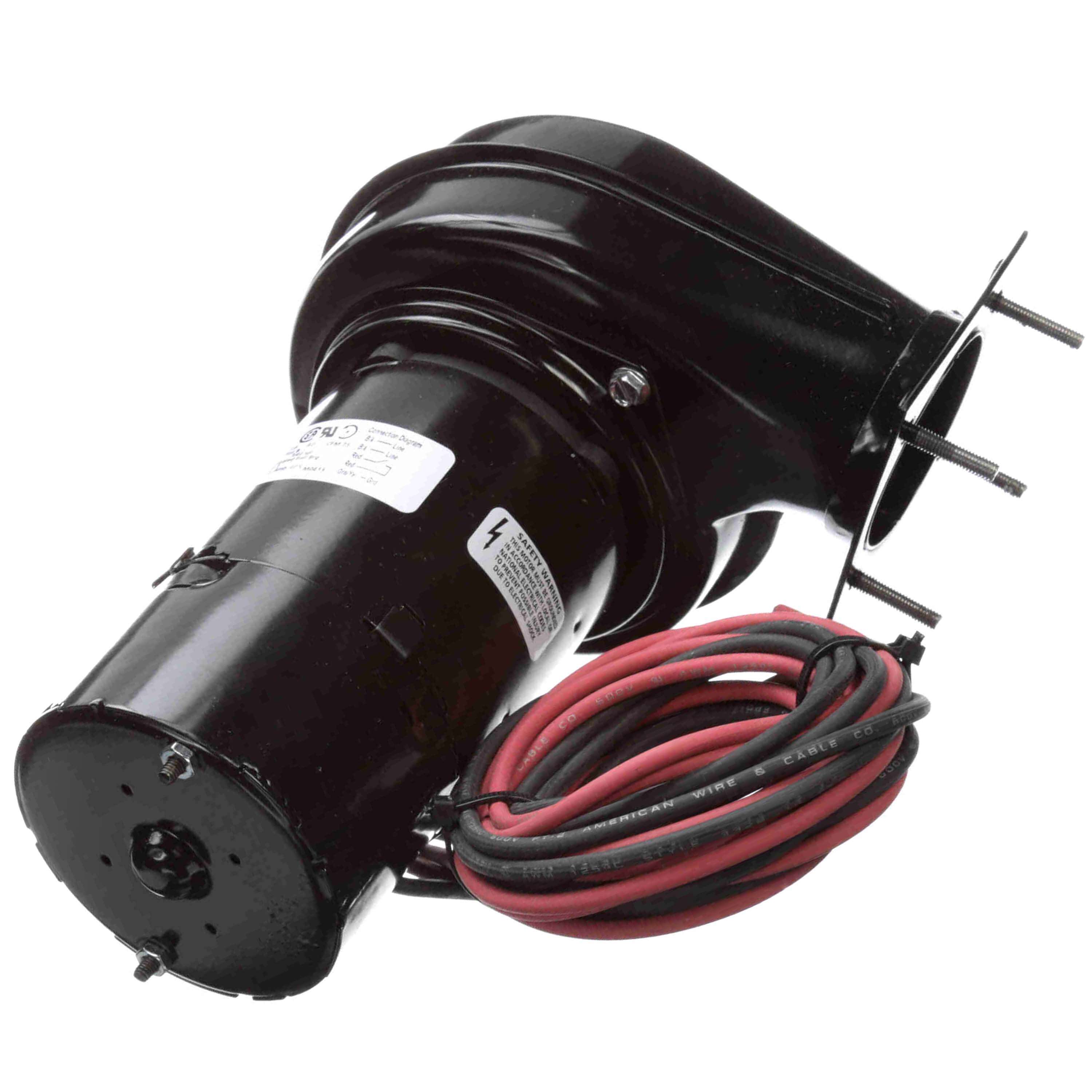

Fasco A075 3.3 Inches Frame Shaded Pole OEM Replacement Specific Purpose Blower 1/40HP REPLACEMENT 38050005

Product Description

The Fasco A075 is a 3.3 inches frame shaded pole OEM replacement specific purpose blower. This model operates at 230 volts, 60 hertz, and 0.4 amps, providing 1/40 horsepower at a maximum speed of 3,000 revolutions per minute. It is ideal for use in furnaces and other applications that require reliable airflow.

• OEM Replacement for consistent performance
• Specific Purpose Blower designed for efficient airflow
• Ball Bearing for smooth operation

Product Highlights

The Fasco A075 is suitable for HVAC systems, providing essential airflow for heating purposes.

Product Information

Standard Information

• Brand: Fasco
• MPN: A075

Technical Specifications

• Voltage: 230V
• Frequency: 60 Hz
• Current: 0.4 A
• Speed: 3,000 rpm
• Horsepower: 1/40HP
• Frame: 3.3 inches
• Bearing Type: Ball Bearing
• Item: OEM Blower
• Application: Furnaces
• Lead Length: 60 inches
• Overall Depth: 8 3/8 inches
• Overall Width: 6 3/8 inches
• Overall Height: 5 7/8 inches
• Wheel Diameter: 3 3/4 inches
• Wheel Material: Steel
• Max Inlet Temp.: 104 Degrees F
• Motor Insulation: Class B
• Rotation: Counterclockwise
• Diameter: 3.3 inches
• CFM: 75 CFM
