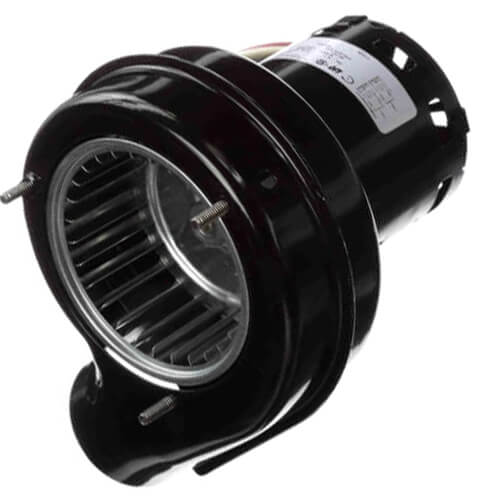

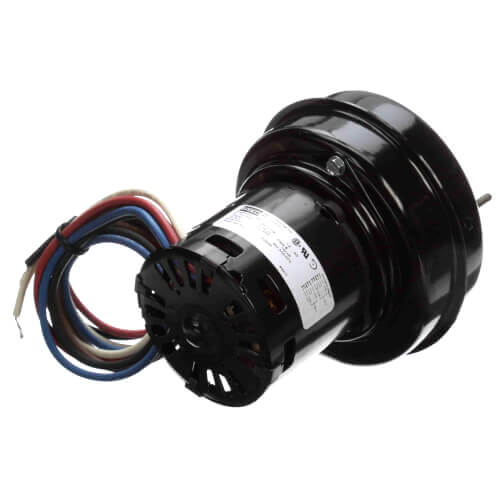

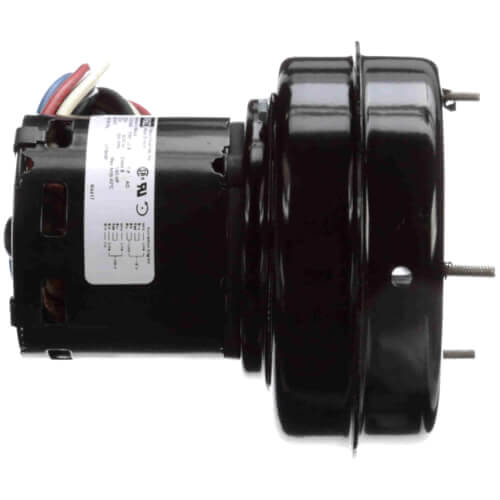

Fasco A073 1-Speed 3200 RPM 73 CFM Draft Inducer Motor (115/230V) MFR Catalog No 05719

Product Description

The Fasco A073 is a 1-Speed Draft Inducer Motor designed for HVAC systems. It operates at 3200 RPM and has a maximum airflow capacity of seventy-three CFM. This draft inducer motor is compatible with various brands, making it suitable for replacement applications. It is an aftermarket part that can replace models from Tappan, Janitrol, and Franklin, among others.

• 1-Speed operation at 3200 RPM for effective airflow.
• Compatible with several manufacturers’ models.
• Easy installation for efficient heating system performance.

Product Highlights

This draft inducer motor enhances the efficiency of heating systems by improving airflow, which is essential for maintaining optimal performance.

Product Information

Standard Information

• Brand: Fasco
• Part Number: A073

Technical Specifications

• RPM: 3200
• Air Flow Capacity: 73 CFM
• Voltage: 115/230V
• Phase: 1
• Amperage: 0.75/0.35
• Horse Power: 1/40
• Bearings: Ball
• Weight: 3.86 lbs
• Shipping Dimensions: 7.95 inches (D) x 7.15 inches (W) x 6.5 inches (H)
• Approvals: CSA, UL
