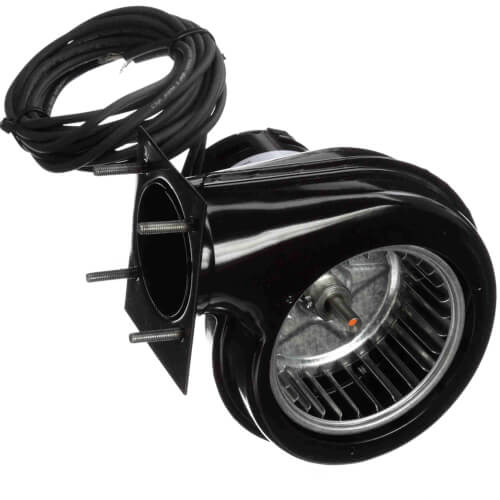

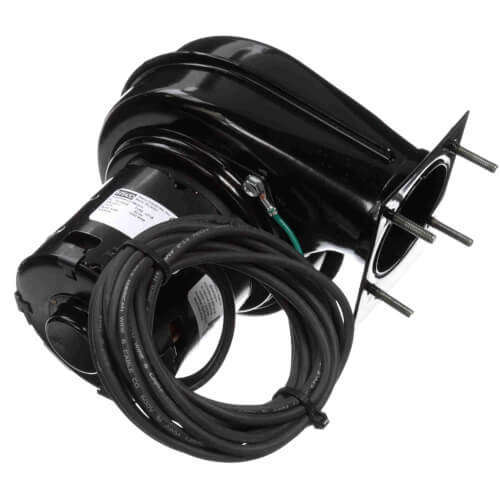

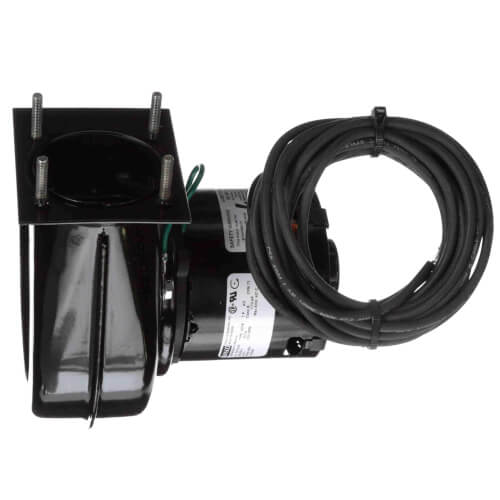

Fasco A069 3.3 Frame Shaded Pole OEM Replacement Blower 1/70HP 3000 RPM 208-240V 60 Hz

Product Description

The Fasco A069 is a 3.3 Frame Shaded Pole OEM Replacement Blower designed for specific purposes. It runs on a power range of 208-240V and operates at 3000 RPM with a power rating of 1/70HP and a current of 0.5 amps. This blower features a sleeve bearing and is designed for one-speed operation, making it a reliable component in various applications.

• 1/70HP power rating
• 3000 RPM operating speed
• 208-240V power support

Product Highlights

This Fasco blower motor offers a robust shaded pole design. It efficiently operates at a constant speed of 3000 RPM and has a power rating of 1/70HP. It's an ideal replacement for various systems requiring this power and specification.

Product Information

Standard Information

• Brand: Fasco
• Model: A069

Technical Specifications

• Speed: 3000 RPM
• Voltage: 208-240 Volts
• Power: 1/70 HP
• Amperage: 0.5 Amps
• Rotation: CCW
• Bearings: Sleeve
• Air Flow Capacity: 69 CFM
• Approvals: CSA, UL
• Insulation Class: B
• Overload Protection: Thermally
• Max Ambient Temp: 104 degrees Fahrenheit
• Dimensions: 6 x 6 x 6 inches
• Weight: 4 pounds
