Product Description

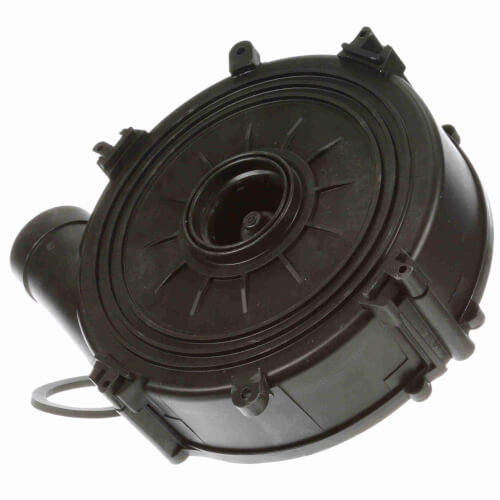

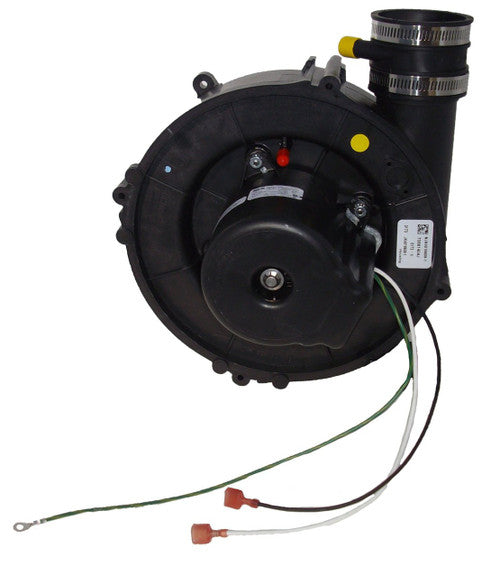

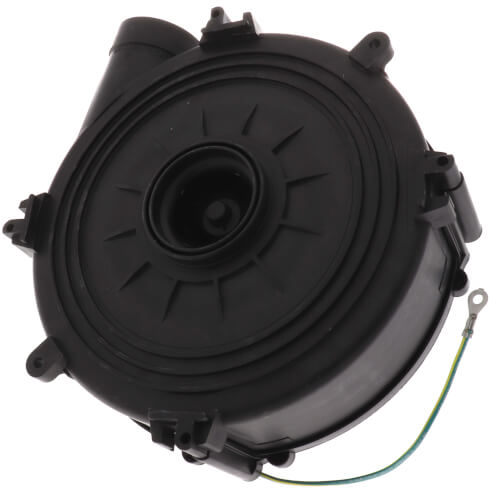

The FASCO A067 is a 1-speed inducer motor with a power rating of 1/20 horsepower and operates at 115 volts. It serves as a replacement component compatible with InterCity Products part numbers 1014338 and 119225-00. This motor runs at 3000 RPM, making it ideal for furnace draft induction, providing reliable operation for those in need of a durable and effective motor.
- Operates at 115V and 3000 RPM.
- Includes ball bearings and features a shaded pole design.
- Thermally protected with an open enclosure.
Product Highlights
This inducer motor is designed for furnace applications, providing efficient draft induction and ensuring the safety and performance of heating systems.
Product Information
Standard Information
-
Brand: Fasco
-
Application: Furnaces
Technical Specifications
-
MPN: A067
-
Voltage: 115V
-
Amperage: 2.6 amps
-
Speeds: 1
-
Horse Power: 1/20 hp
-
RPM: 3000 RPM
-
OEM Compatibility: ICP/Heil Quaker
-
Bearings: Ball Bearings
-
Type: Shaded Pole
-
Outlet Shape: Round
-
Outlet Flange: No
-
Hertz: 60 Hz
-
Max Ambient Temperature: 104 °F
-
Enclosure Type: Open
-
Insulation Class: B
-
Overload Protection: Thermally protected
-
Phase: 1
-
Maximum Fan Speed: 3000 RPM
-
Electrical Connection: Wire Leads
-
Airflow @ 0.000 in SP: 71 cfm
-
Wheel Type: Backward-Curved
-
Wheel Material: Polypropylene
-
Wheel Diameter: 7-5/8 inches
-
Inlet Diameter: 1-3/4 inches
-
Outlet Diameter: 2 inches
-
Overall Depth: 6-1/8 inches
-
Overall Width: 9-7/8 inches
-
Overall Height: 9-7/8 inches
-
Maximum Inlet Air Temperature: 180 °F
-
Standards: CSA Certified; UL Listed
-

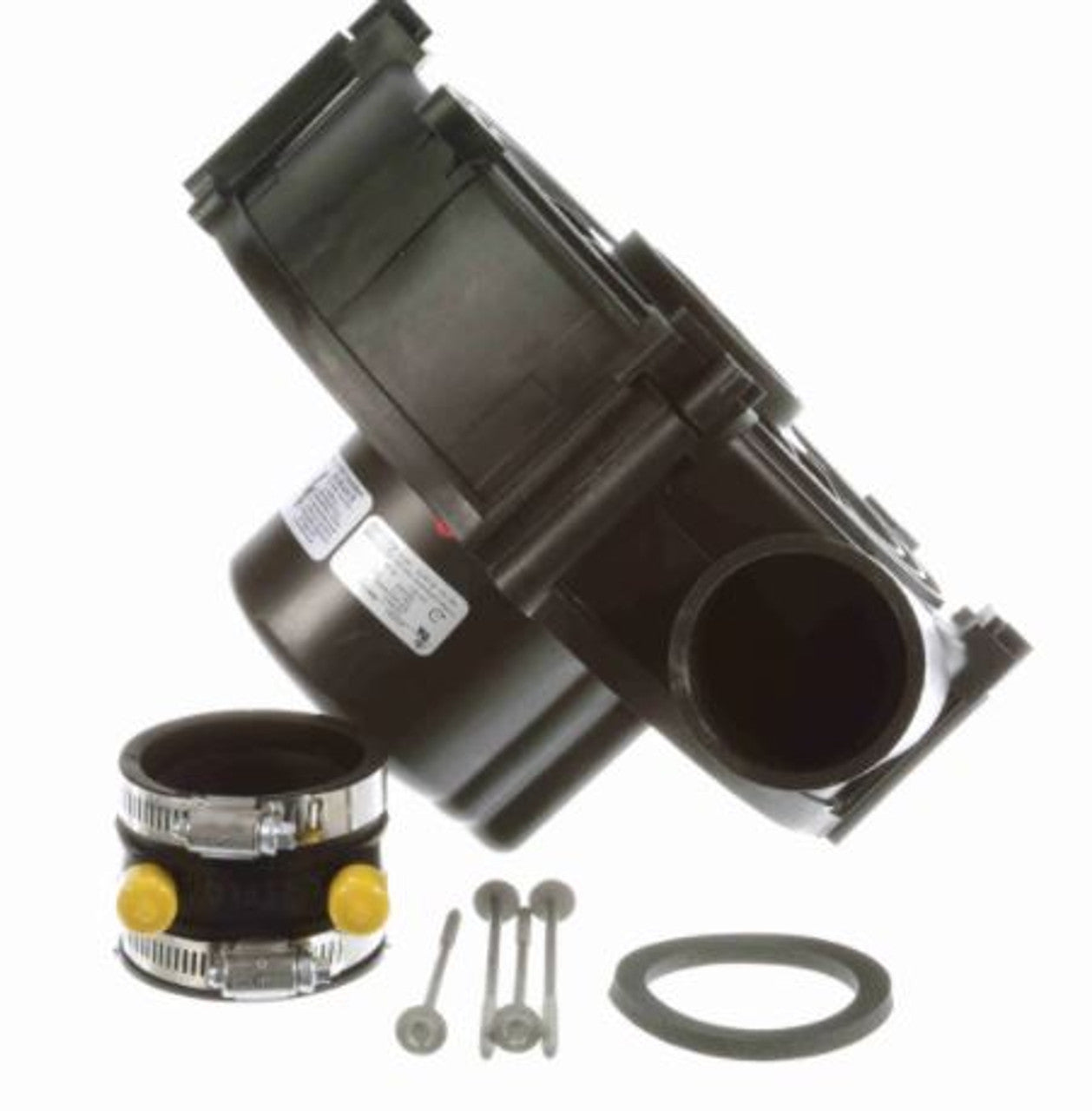

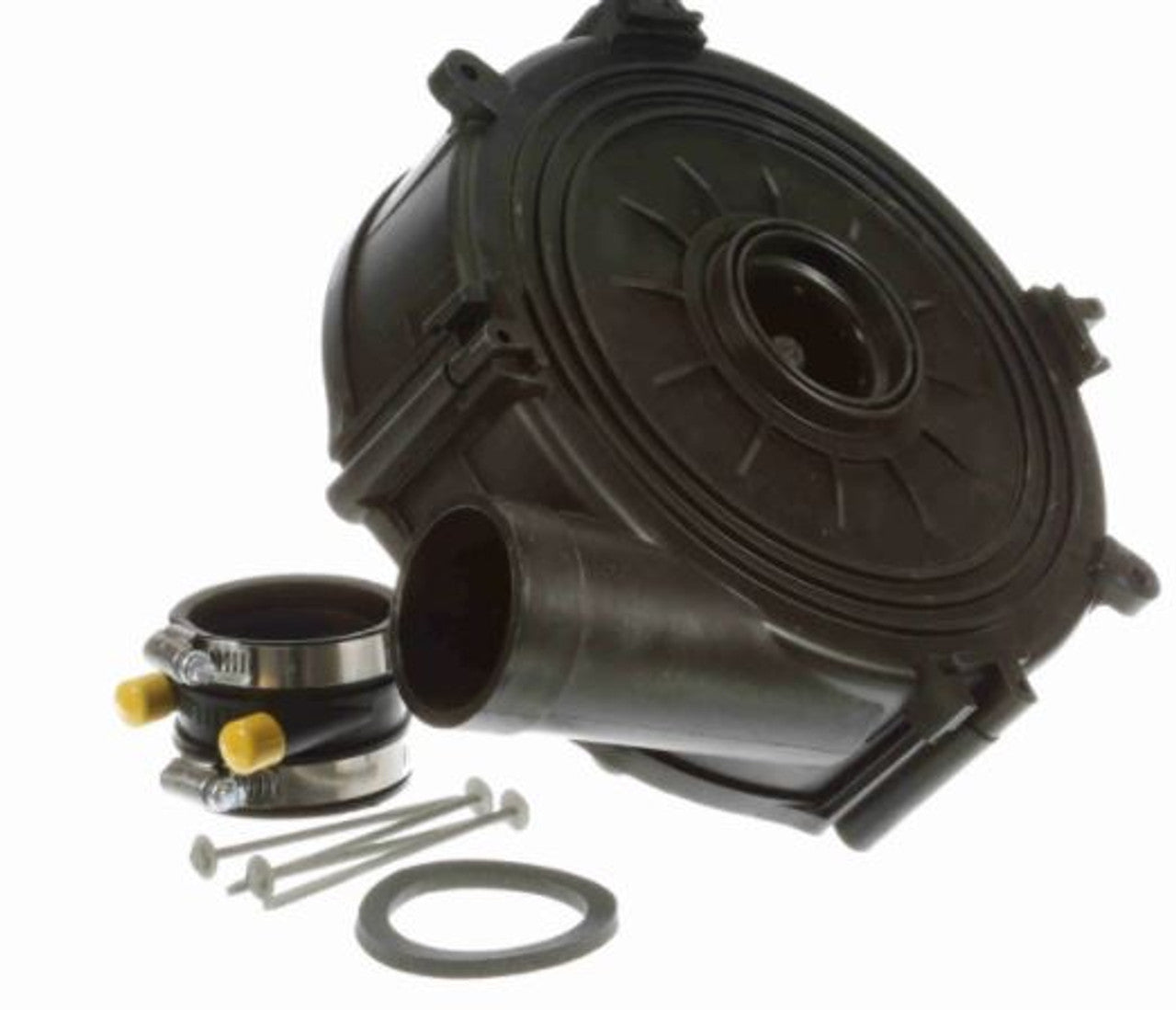

Includes: Outlet Adapter
-
Rotation: CWSE
